Lifting height0.6~1.56m, With a level gauge
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

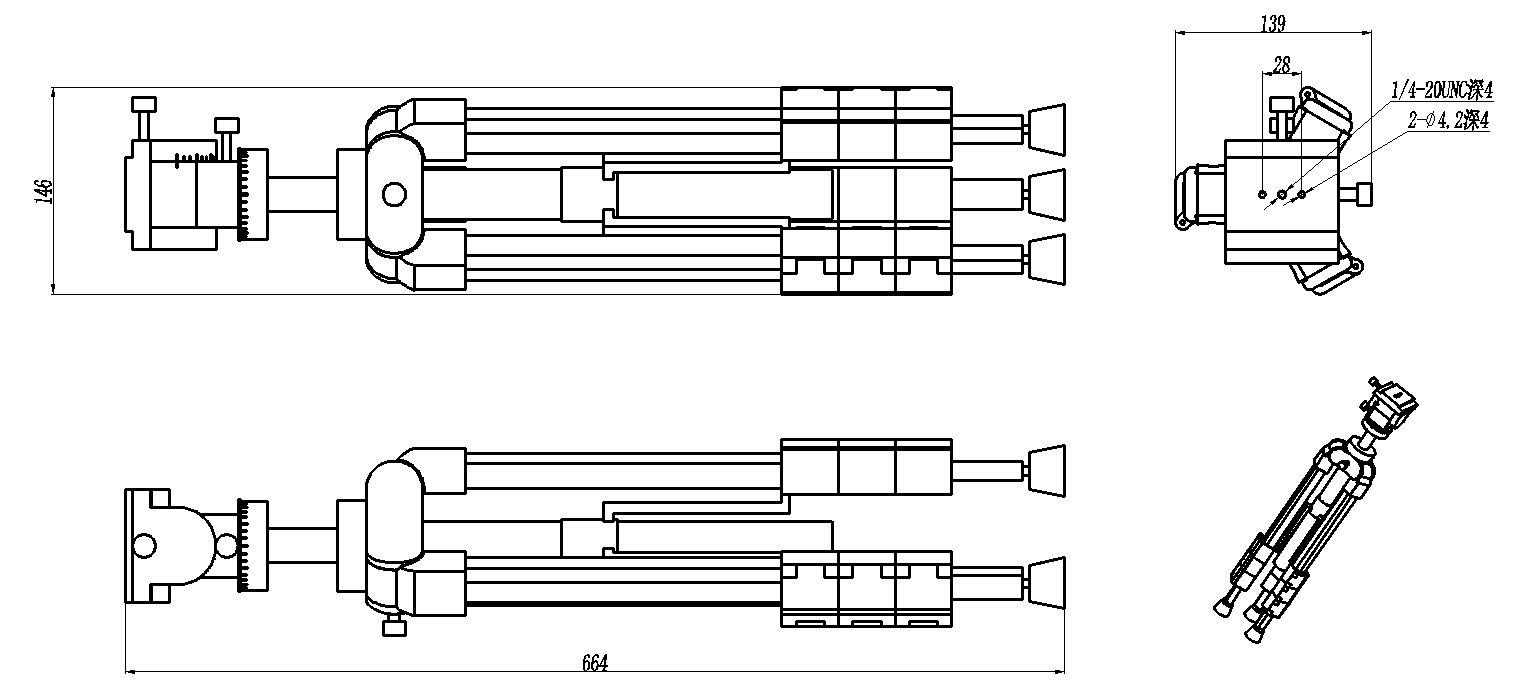

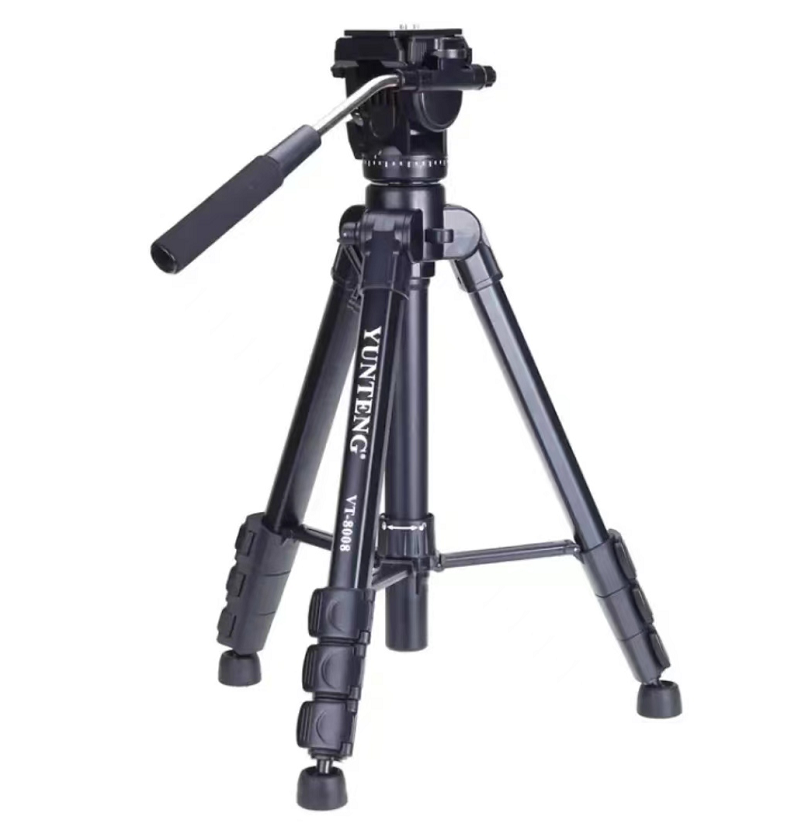

The height of the metal tripod can be adjusted from 0.6 meters to 1.56 meters, and the main body is made of aluminum alloy and engineering plastic. The antenna can be directly installed on the quick installation board or 1/4 "male thread.
| Parameters | Min | Max | Units |
|---|---|---|---|
| Lifting height | 0.6~ | 1.56 | m |
| Folding height | 0.67 | m | |
| Level adjustment | 0 | 360 | ° |
| Pitch adjustment | -45 | 90 | ° |
| Bearing | 5 | Kg |
| Connector | 1/4 "male thread, multifunctional L-shaped plate |
| Outline size | 130*130*670mm |
| Estimated weight | 2.4Kg |
| Surface | Black |
| Operation Temp. | -45~+75℃ Design assurance |
| Other | With a level gauge |
Avoid collisions during installation.
The support rod should be perpendicular to the ground to prevent antenna damage.
