Lifting height1.6m, Bearing8Kg,
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
A bidirectional telescopic tripod with a height adjustable range of 1 meter to 1.6 meters, and the main body is made of epoxy glass fiber and stainless steel material. The antenna can be directly installed on the 3/8 "male thread at the top of the tripod, or installed using an antenna adapter. It is mainly used for laboratory testing.
| Parameters | Min | Max | Units |
|---|---|---|---|
| Lifting height | 1 | 1.6 | m |
| Folding height | 1 | m | |
| Bearing | 8 | Kg |

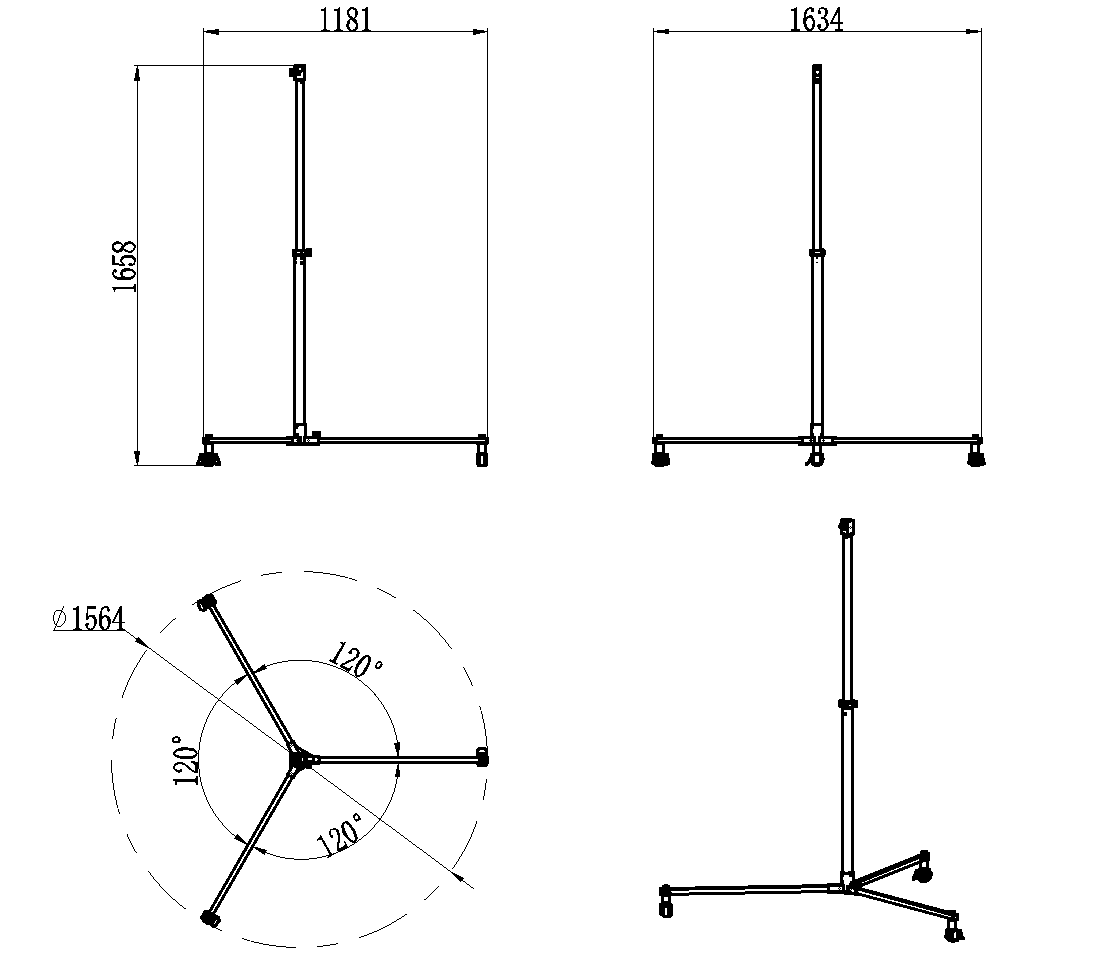

| Outline size | 1560*1560*1658mm |
| Estimated weight | 5.3Kg |
| Operation Temp. | -45~+55℃ Design assurance |
| Other | Foldable |
Avoid collisions during installation.
The support rod should be perpendicular to the ground to prevent antenna damage.
