Lifting height1m, Bearing2Kg,
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

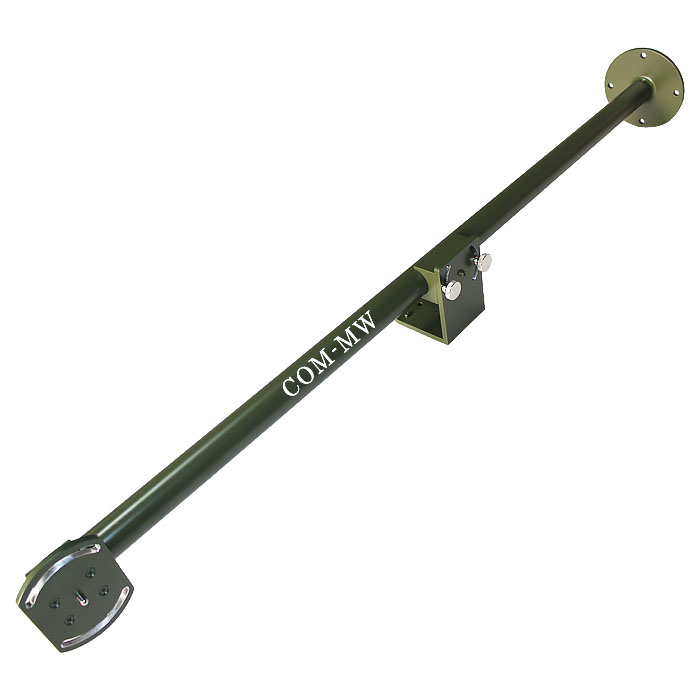

此金属支架，高度为1米，主体采用6061铝材料，。天线可以直接安装到三脚架顶部的旋转结构上，或者使用天线适配器安装架设天线。主要应用于屏蔽室或暗室中场强测试。
| Parameters | Min | Max | Units |
|---|---|---|---|
| Lifting height | 1 | m | |
| Bearing | 2 | Kg |

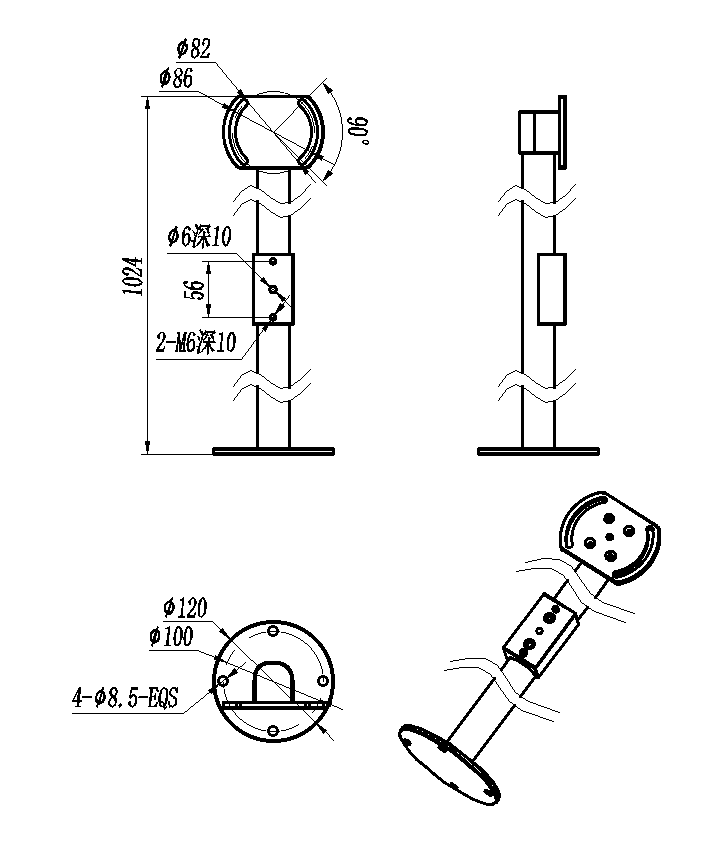

| Outline size | 1024*120*120mm |
| Estimated weight | 1.3Kg |
| Material | Aluminum 6061 |
| Surface | Green |
| Operation Temp. | -45~+75℃ Design assurance |
Avoid collisions during installation.
The support rod should be perpendicular to the ground to prevent antenna damage.
