Lifting height0.83~1.89m, Folding height0.86m,
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

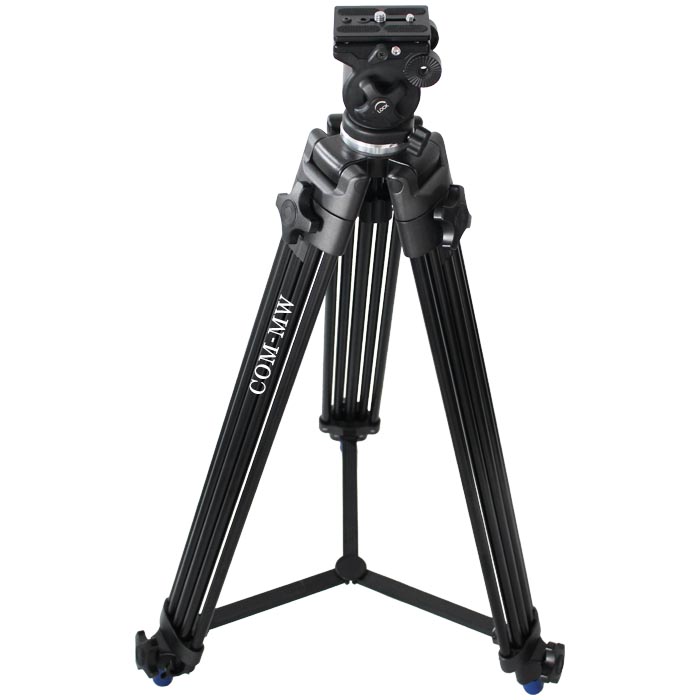

This metal tripod can be adjusted in height, ranging from 0.83 meters to 1.89 meters. The main body is made of aluminum alloy and engineering plastic. The antenna can be directly installed on the 1/4 "or 3/8" male thread or L-shaped plate at the top of the tripod.
| Parameters | Min | Max | Units |
|---|---|---|---|
| Lifting height | 0.83~ | 1.89 | m |
| Folding height | 0.86 | m | |
| Bearing | 8 | Kg |
| Connector | 1/4 ", 3/8" male thread |

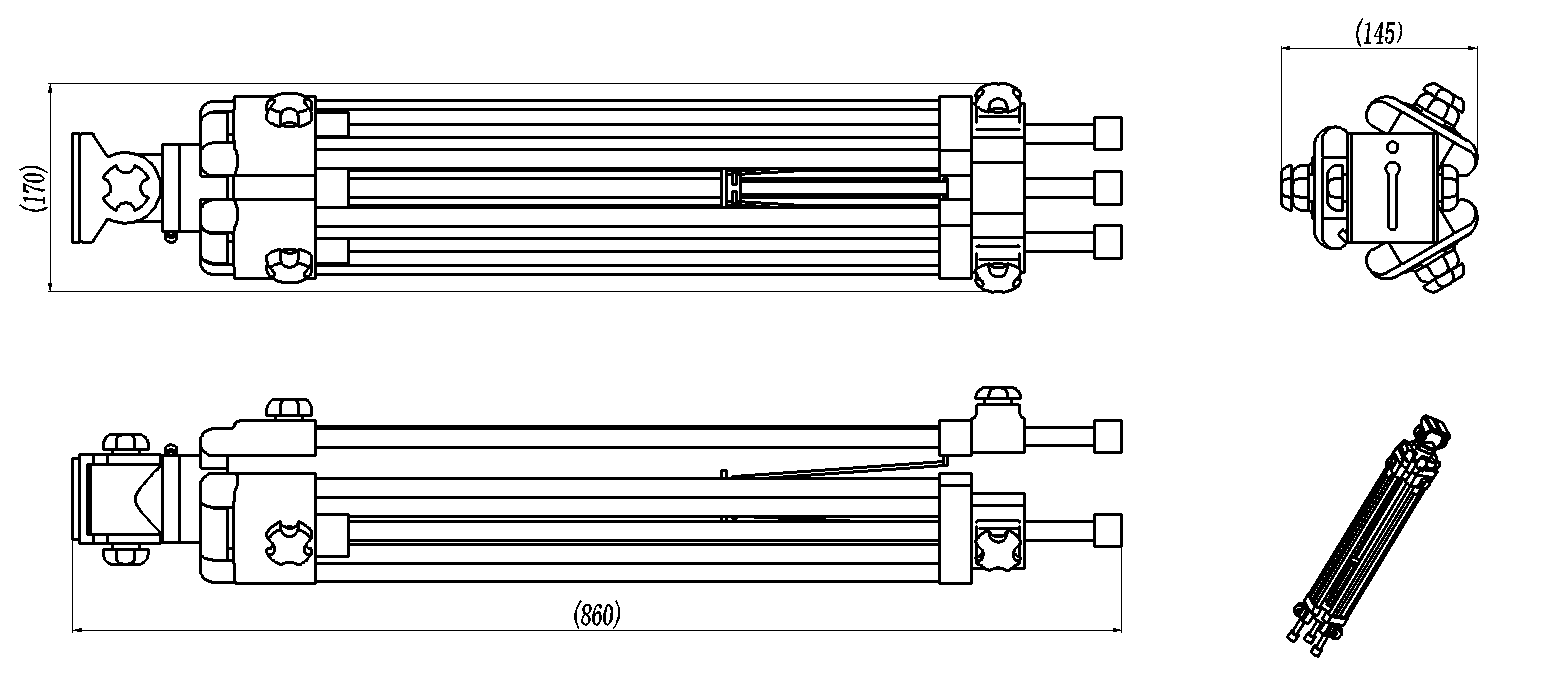

| Outline size | 180*180*860mm |
| Estimated weight | 4.4Kg |
| Material | Aluminum alloy |
| Surface | Black |
| Operation Temp. | -25~+55℃ Design assurance |
| Other | Can be equipped with multi-functional L-shaped plates |
Avoid collisions during installation.
The support rod should be perpendicular to the ground to prevent antenna damage.
