5~10000MHz, 1: 1Balun, SMD, Substitutes model MABA-011108
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
| Frequency | 5 | ~ | 10000 | MHz |
| IL | 1.6 | 1.9 | dB@5-500MHz | |
| IL | 1.4 | 1.6 | dB@0.5-1GHz | |
| IL | 1.3 | 1.7 | dB@1-6GHz | |
| IL | 2.4 | 2.6 | dB@6-10GHz | |
| Input RL | 13 | 17 | dB@5-500MHz | |
| Input RL | 10 | 18 | dB@0.5-3GHz | |
| Input RL | 6 | 16 | dB@3-7GHz | |
| Input RL | 8 | dB@7-10GHz | ||
| 输出回波损耗 | 9 | 14 | dB@5-5500MHz | |
| 输出回波损耗 | 9 | dB@5.5-10GHz | ||
| Amplitude balance | 0.4 | 0.8 | dB@5-3000MHz | |
| Amplitude balance | 2.2 | dB@3-10GHz | ||
| Phase balance | 5 | 8 | °@5-500MHz | |
| Phase balance | 12 | °@0.5-10GHz |
| Impedance ratio | 1:1 Balun |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 1W Design assurance |
| Operation Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Substitutes model | MABA-011108 |
| ROHS | Compliant Available |

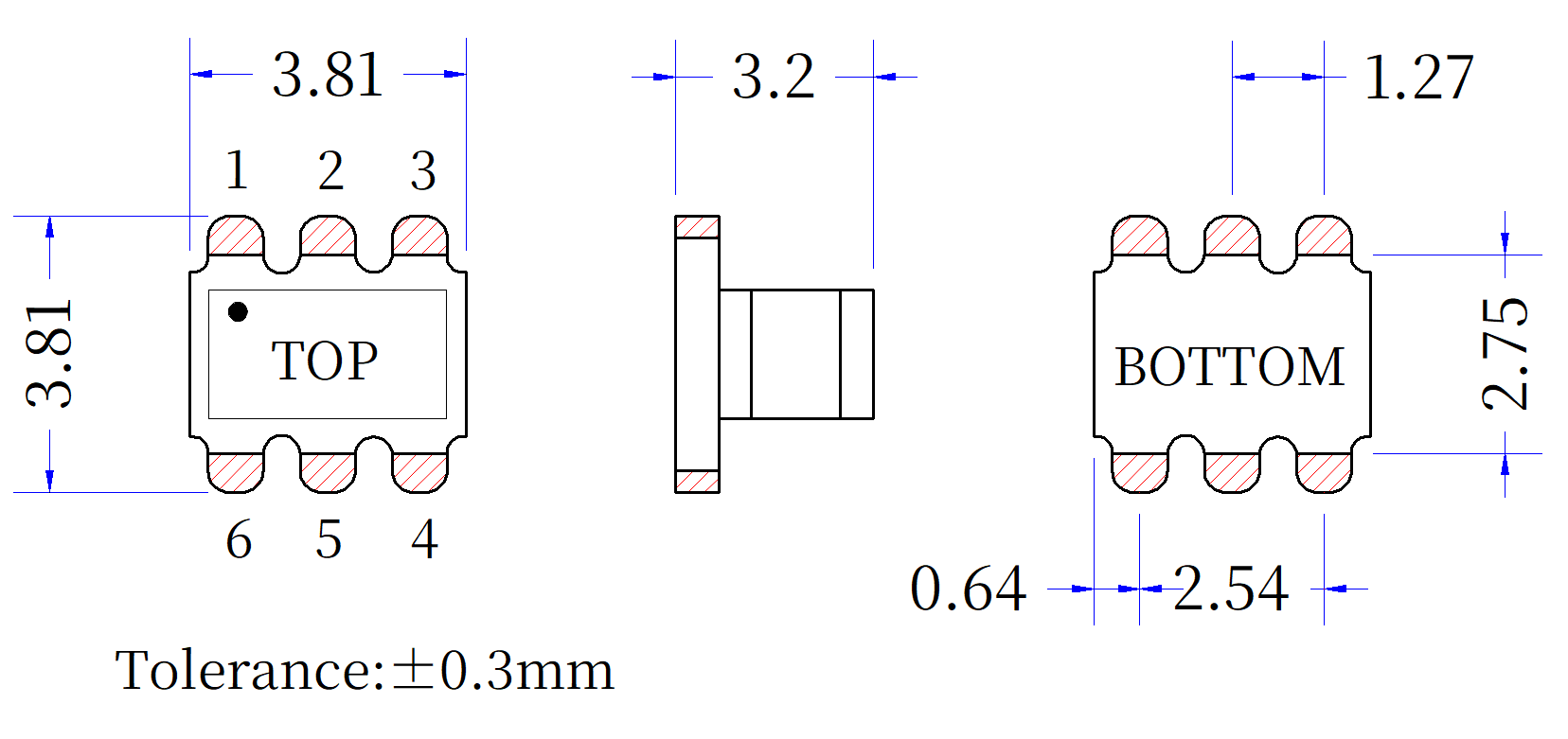

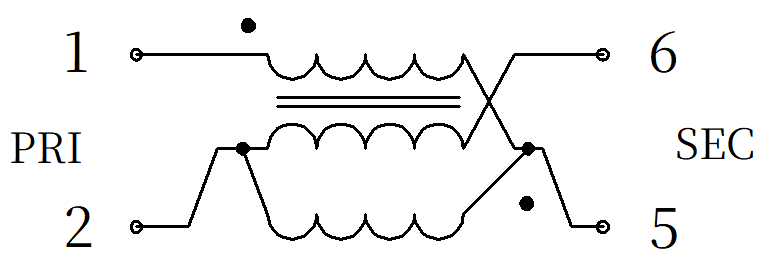

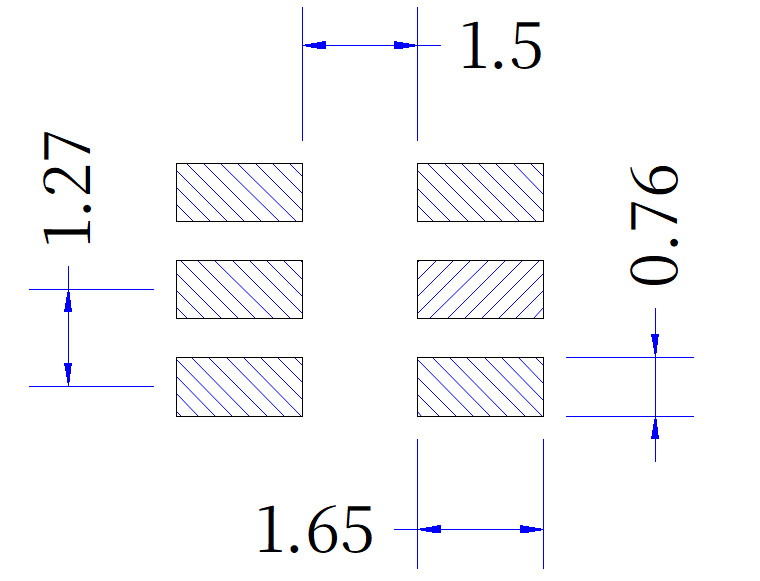

| PRIMARY DOT | Unbalance Port | 1 |
| PRIMARY | GND | 2 |
| SECONDARY DOT | Balance Port | 5 |
| SECONDARY | Balance Port | 6 |
| 1 | The product supports 260 ℃ reflow soldering. |
| --- | Short term soaking and cleaning, please dry in a timely manner. |
