10~12000MHz, 1:2Balun, SMD, Substitutes modelBAL-0012SSG
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

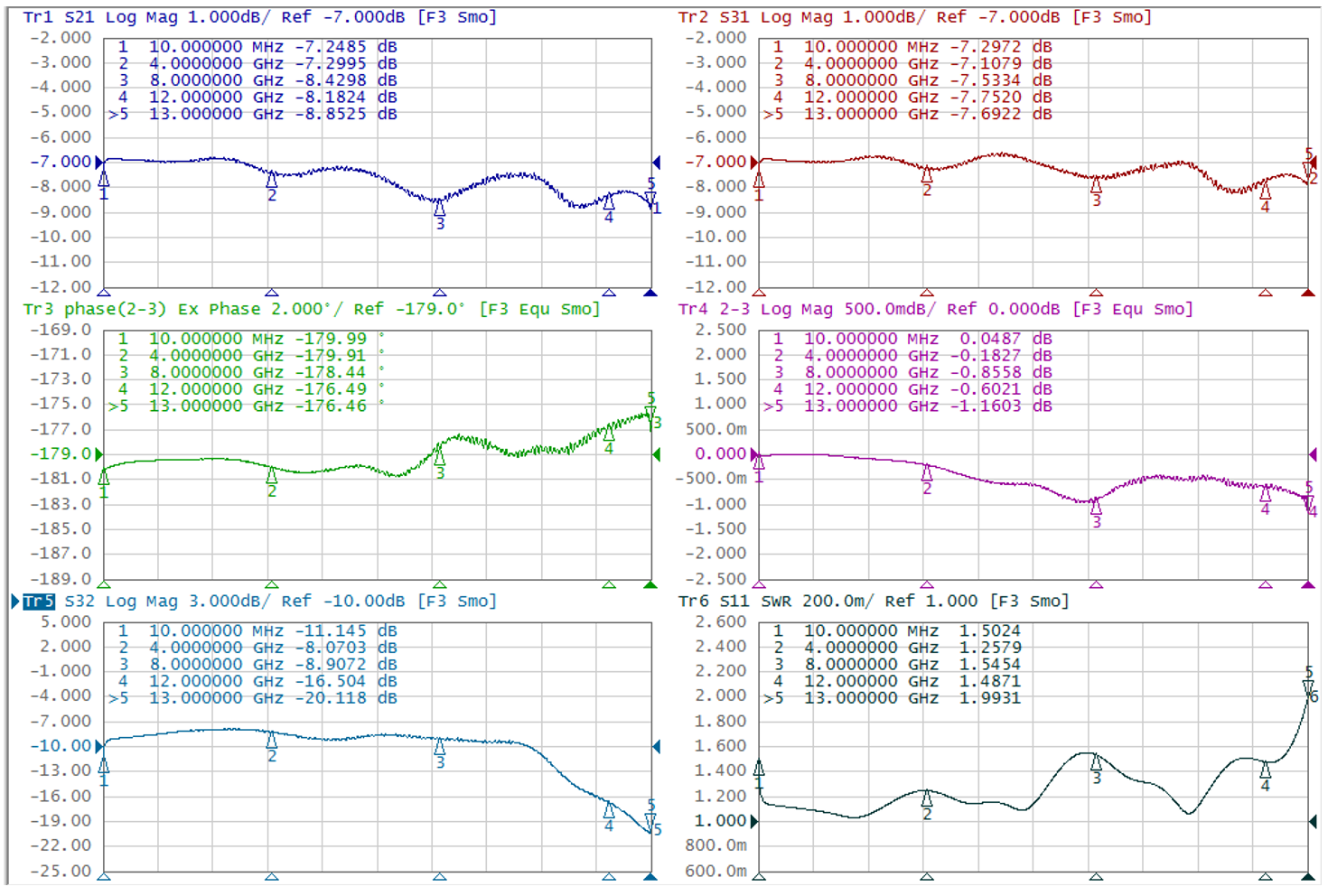

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 10 | ~ | 12000 | MHz |
| IL | 6.5 | dB | ||
| Input VSWR | 1.6 | |||
| Amplitude balance | 1.8 | dB | ||
| Phase balance | 12 | ° | ||
| Common Mode Rejection | 18 | dB | ||
| Isolation | 8 | dB |
| Impedance ratio | 1:2 Balun |
| Connector | SMD |
| Power Capacity | 1W Design assurance |
| Operation Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Substitutes model | BAL-0012SSG |
| ROHS | Compliant Available |

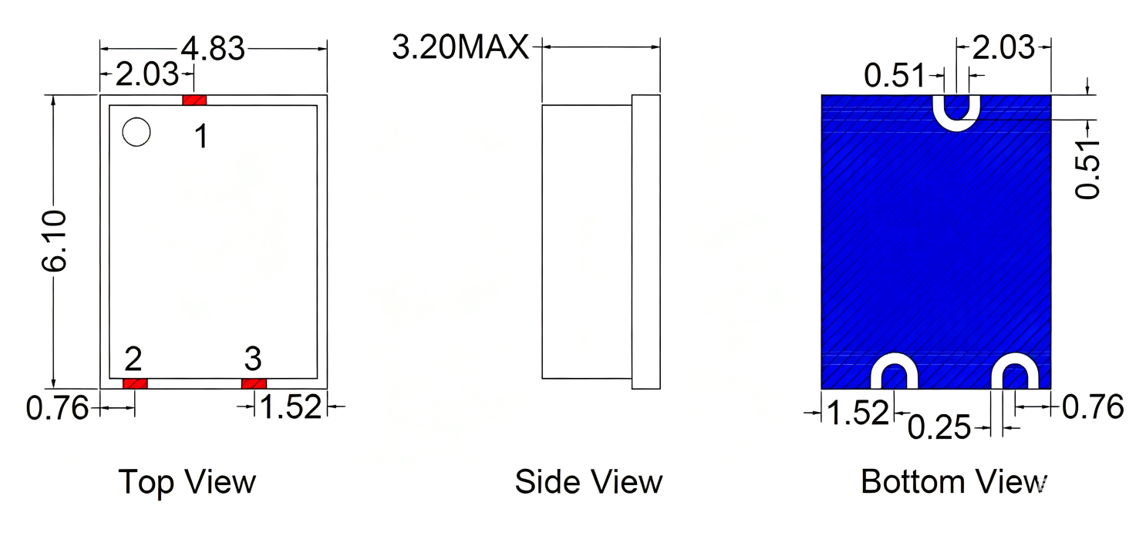

| Input | 1 | --- |
|---|---|---|
| Output 0° | 2 | --- |
| Output 180° | 3 | --- |
| 1 | Supports reflow soldering at 245 ℃. |
| --- | Short term soaking and cleaning, please dry in a timely manner. |
