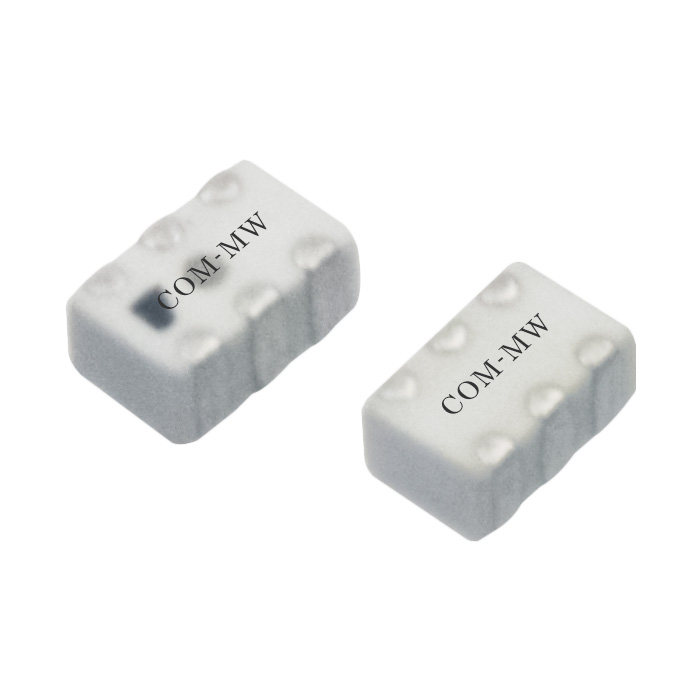

380~960MHz, 1:2Balun, SMD, Substitutes modelHHM1591D1, LTCC
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
LTCC process, small size, good consistency, and high cost-effectiveness.

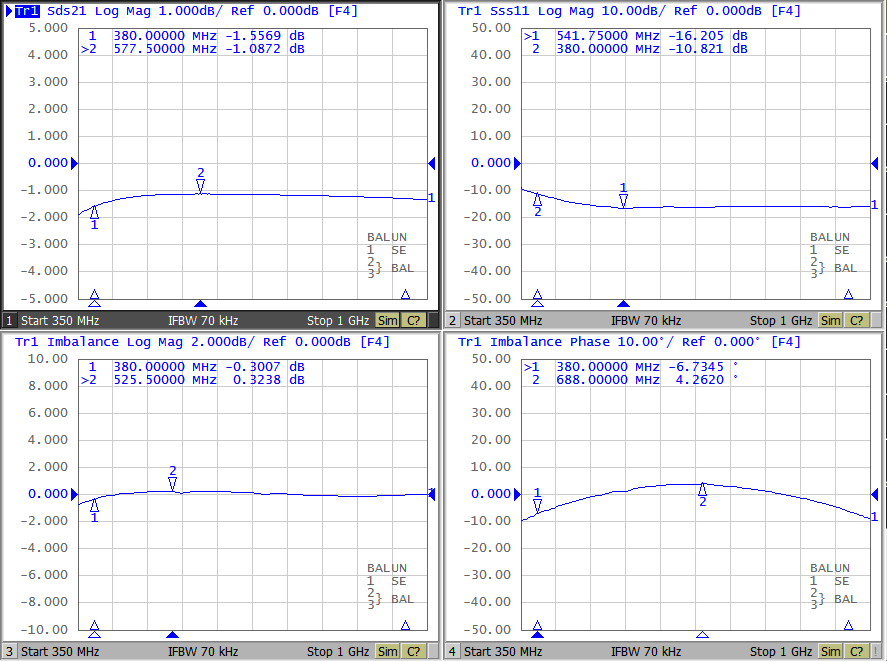

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 380 | ~ | 960 | MHz |
| IL | 1.8 | dB | ||
| Return loss | 8 | dB | ||
| Amplitude balance | 0.8 | dB | ||
| Phase balance | 13 | ° |
| Impedance ratio | 1:2 Balun |
| Connector | SMD |
| Power Capacity | 2W Design assurance |
| Operation Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Substitutes model | HHM1591D1 |
| ROHS | Compliant Available |
| Other | LTCC |
| Unbalance Port | 1 | --- |
|---|---|---|
| GND Port | 2,5 | --- |
| Balance Port | 3 | --- |
| Balance Port | 4 | --- |
| Not used | 6 | --- |

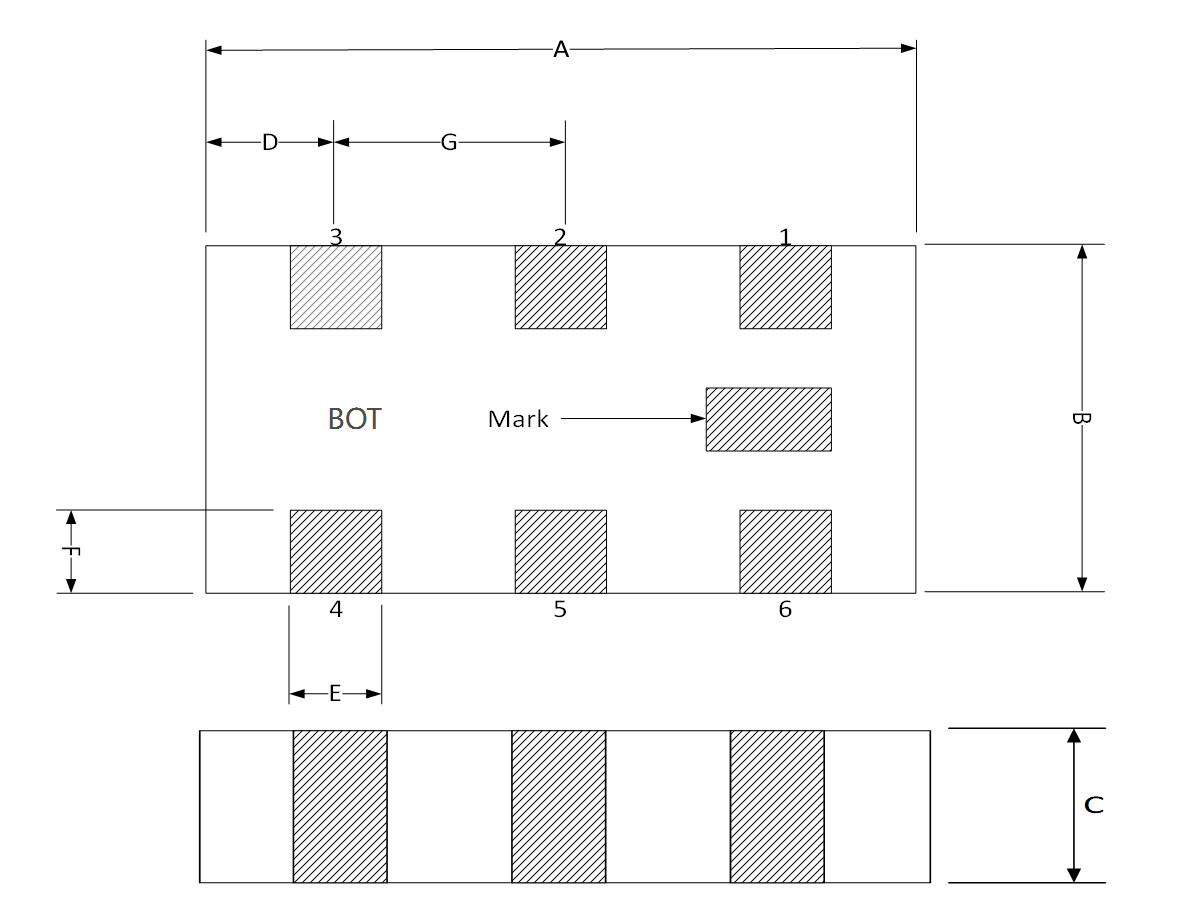

| Size Code | size | Units |
|---|---|---|
| A | 2 | mm |
| B | 1.25 | mm |
| C | 0.9 | mm |
| D | 0.35 | mm |
| E | 0.3 | mm |
| F | 0.2 | mm |
| G | 0.65 | mm |
| 1 | The product supports 260 ℃ reflow soldering. |
| 2 | Short term soaking and cleaning, please dry in a timely manner. |
