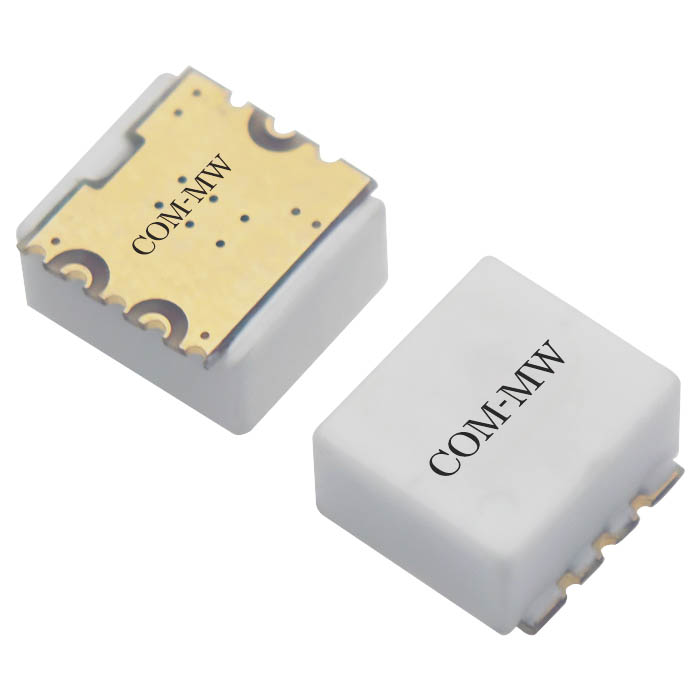

0.5~3000MHz, 1:2, Balun, SMD, 替代BAL-0003SMG
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.5 | ~ | 3000 | MHz |
| IL | 3.8 | 5 | dB | |
| Common Mode Rejection | 25 | 35 | dB | |
| Isolation | 9 | dB | ||
| Input VSWR | 1.5 | |||
| Amplitude balance | 0.3 | 0.8 | dB | |
| Phase balance | 3 | 8 | ° |
| Impedance ratio | 1:2 , Balun |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 1W Design assurance |
| Operation Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 替代BAL-0003SMG |

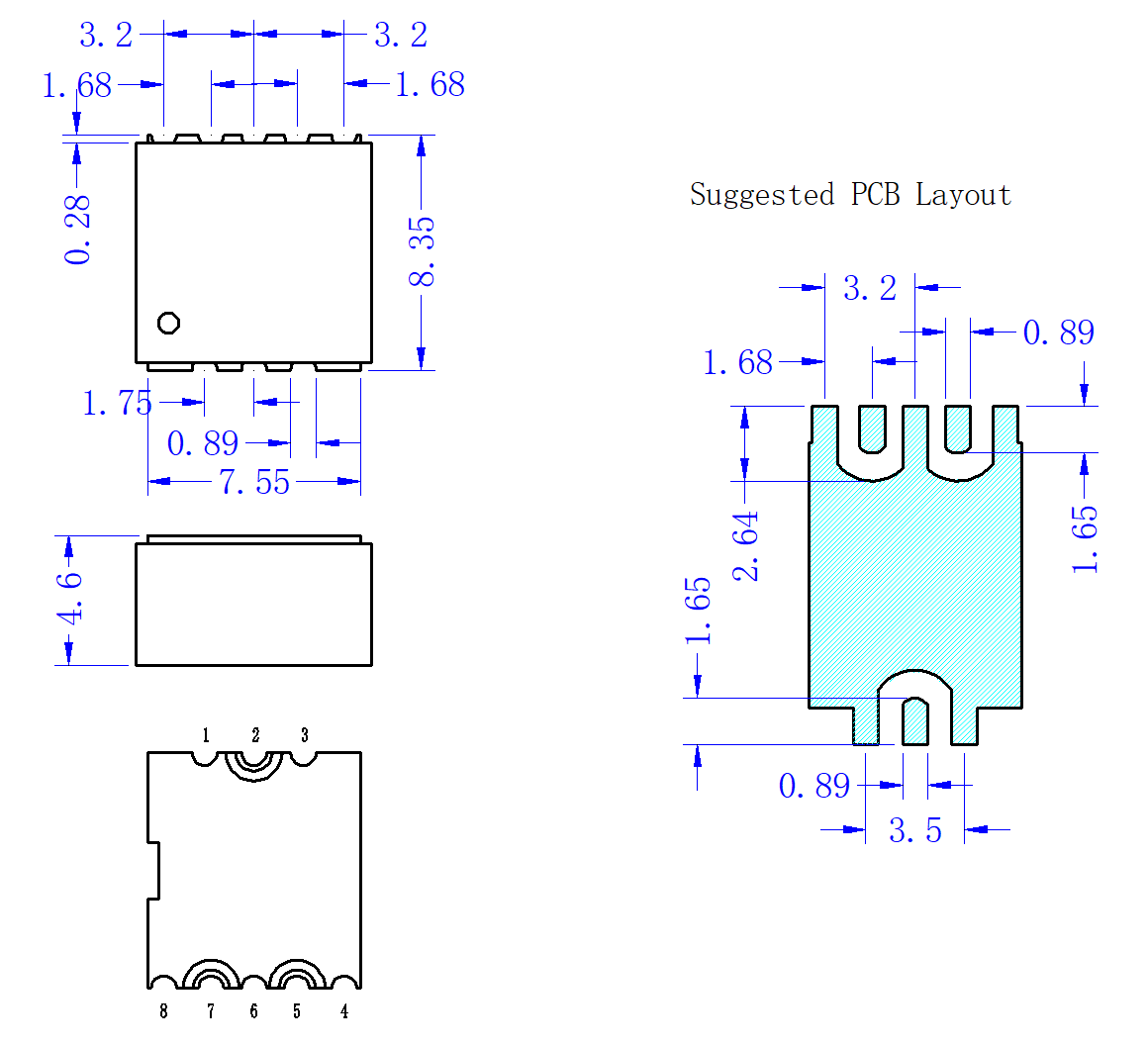

| IN | Common port | 2 | The port is DC short to ground |
|---|---|---|---|
| OUT1 | 0° | 7 | The port is DC short to ground |
| OUT2 | 180° | 5 | The port is DC short to ground |
| 1 | The product supports 260 ℃ reflow soldering. |
