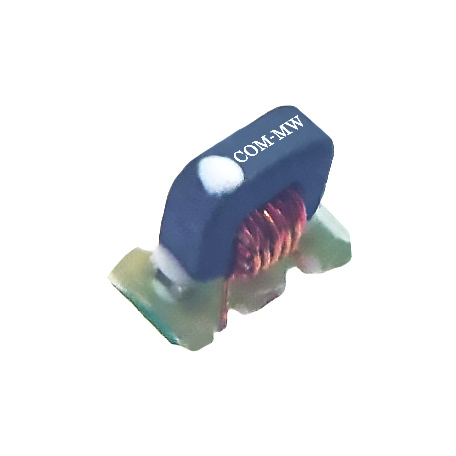

4.5~3000MHz, Impedance ratio1:1Balun, SMD, 替代TTC1-33W+
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, small volume.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 4.5 | ~ | 3000 | MHz |
| IL | 2 | 3.3 | dB | |
| VSWR | 1.5 | |||
| Amplitude balance | 1 | 1.6 | dB | |
| Phase balance | 4 | 8 | ° | |
| Common Mode Rejection | 17 | 23 | dB |
| Impedance ratio | 1:1 Balun |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 1W Design assurance |
| Operation Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 替代TTC1-33W+ |

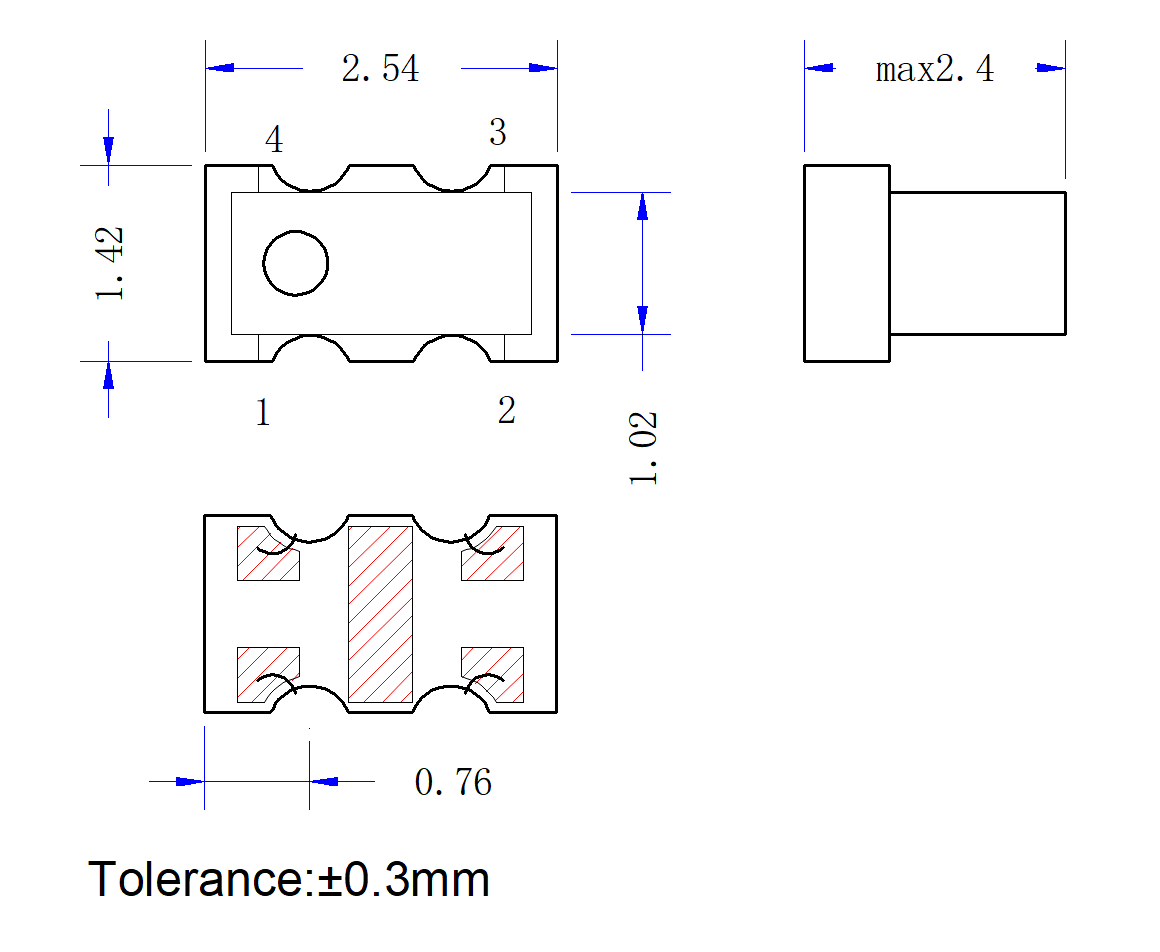

| PRIMARY DOT | PRIMARY DOT: 1 |
| PRIMARY | PRIMARY: 4 |
| SECONDARY DOT | SECONDARY DOT: 2 |
| SECONDARY | SECONDARY: 3 |
| NOT USED | 5 |
| 1 | The product supports 260 ℃ reflow soldering. |
| 2 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
