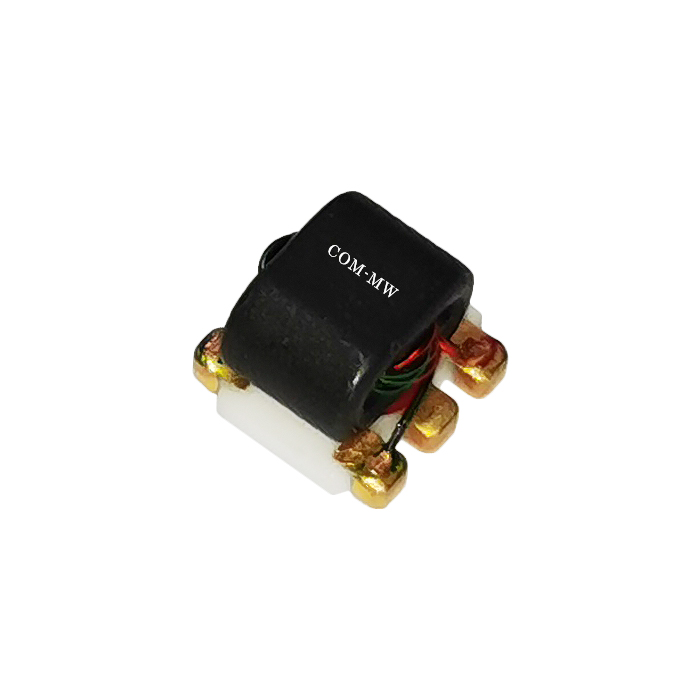

2~800MHz, 1：4Balun, SMD, ReplaceETC4-1-2TR
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, small volume.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 800 | MHz |
| IL | 1.21 | 3 | dB | |
| Amplitude balance | 1 | dB | ||
| Phase balance | 10 | ° |
| Impedance ratio | 1:4 Balun |
| Connector | SMD |
| Impedance | 50Ω |
| Power | 0.25W Design assurance |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Replace ETC4-1-2TR |
| PRIMARYDOT | PRIMARY DOT | 4 |
|---|---|---|
| PRIMARY | PRIMARY | 5 |
| SECONDARYDOT | SECONDARY DOT | 3 |
| SECONDARY | SECONDARY | 1 |
| SECONDARYCT | SECONDARY CT | 2 |
| NOTUSED | Not used | --- |
| 1 | The product supports 220 ℃ reflow soldering. |
