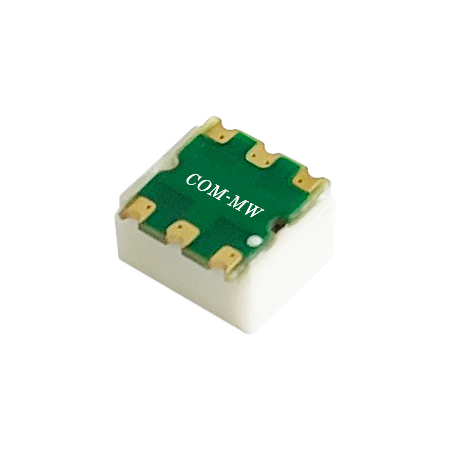

50~1000MHz, Impedance ratio1:4Balun, SMD, Industrial grade, ReplaceJTX-4-10T+
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 50 | ~ | 1000 | MHz |
| IL | 2 | dB | ||
| VSWR | 1.5 | |||
| Amplitude balance | ±0.2 | dB | ||
| Phase balance | ±3 | ° |
| Impedance ratio | 1:4 Balun |
| Connector | SMD |
| Impedance | 50Ω |
| Power | 1W |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 代替JTX-4-10T+ |

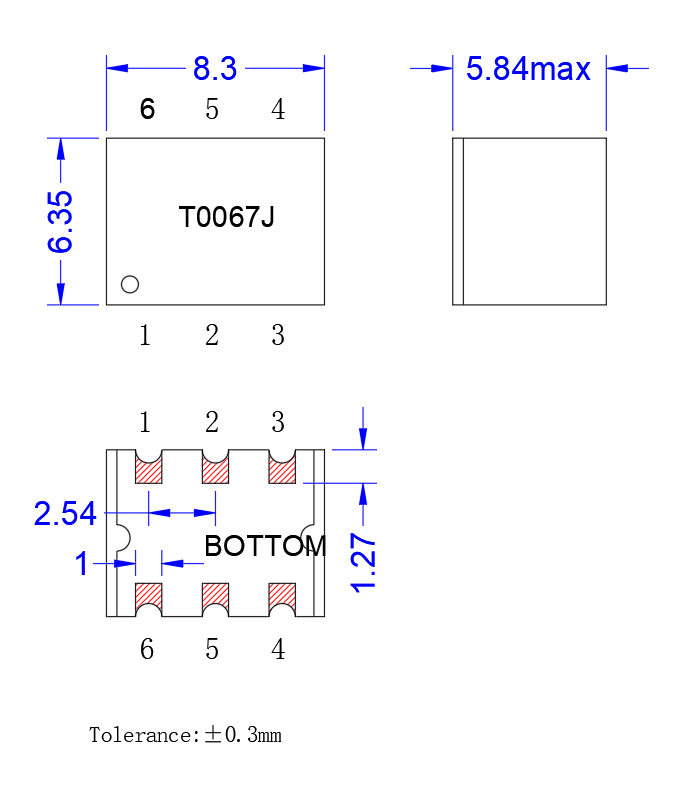

| PRIMARY DOT | PRIMARY DOT | 3 |
|---|---|---|
| PRIMARY | PRIMARY | 1 |
| SECONDARY DOT | SECONDARY DOT | 6 |
| SECONDARY | SECONDARY | 4 |
| SECONDARY CT | SECONDARY CT | 5 |
| NOT USED | Not used | 2 |
| 1 | The product supports 260 ℃ reflow soldering. |
| 2 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
