BandwidthDC-14.0GHz, Rejection30@16.8-28.0GHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High precision machining technology
Low temperature drift, high power.
Ceramic substrate, 50 Ω coplanar waveguide
Gold wire bonding
| Items | Parameters | Units |
|---|---|---|
| Center Frequency | 7.0 | GHz |
| Bandwidth | DC-14.0 | GHz |
| Passband IL | 1.5 | dB |
| Ripple | 1.5 | dB |
| VSWR | 1.7:1 | |
| Group delay ripple | 0.4 | ns |
| Rejection | 30@16.8-28.0GHz | dBc |
| power | 1W CW |
| Work Temp. | -55~+85℃ |
| Storage Temp. | -55~+125℃ |

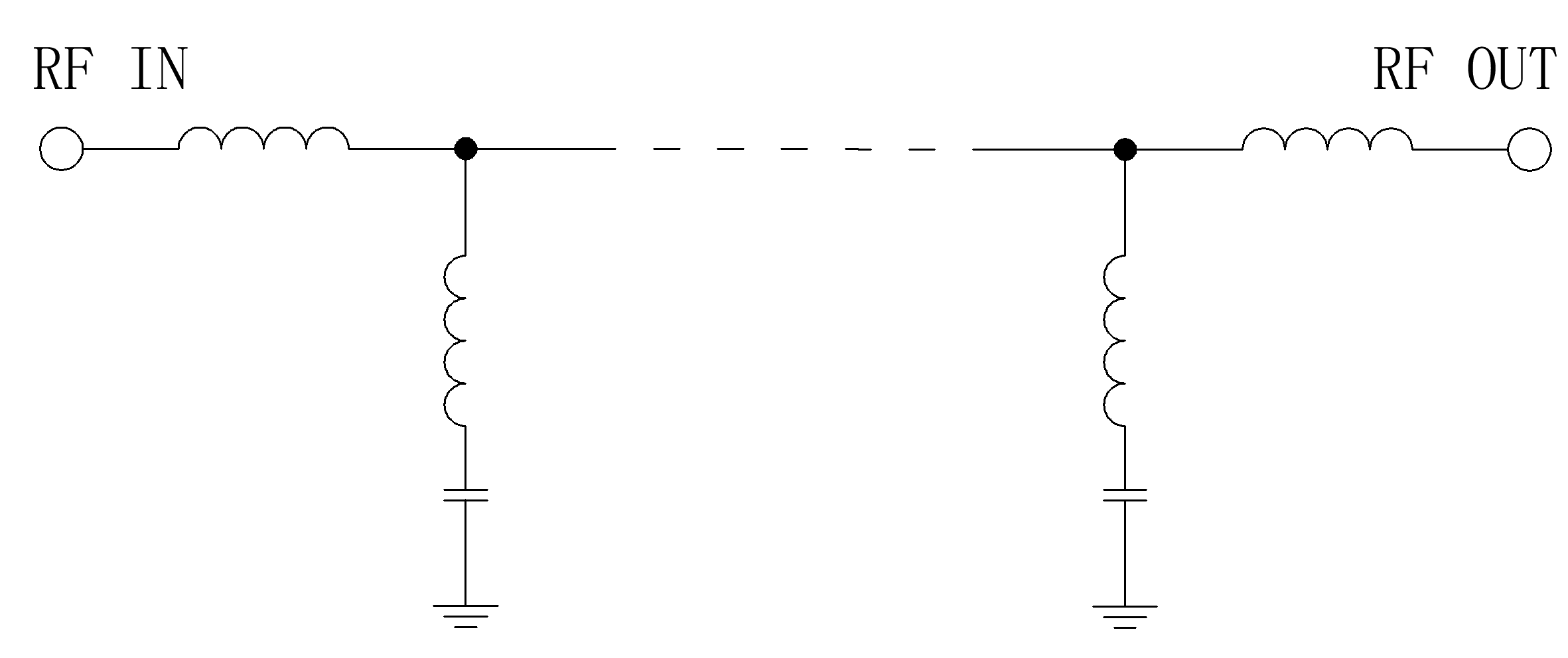

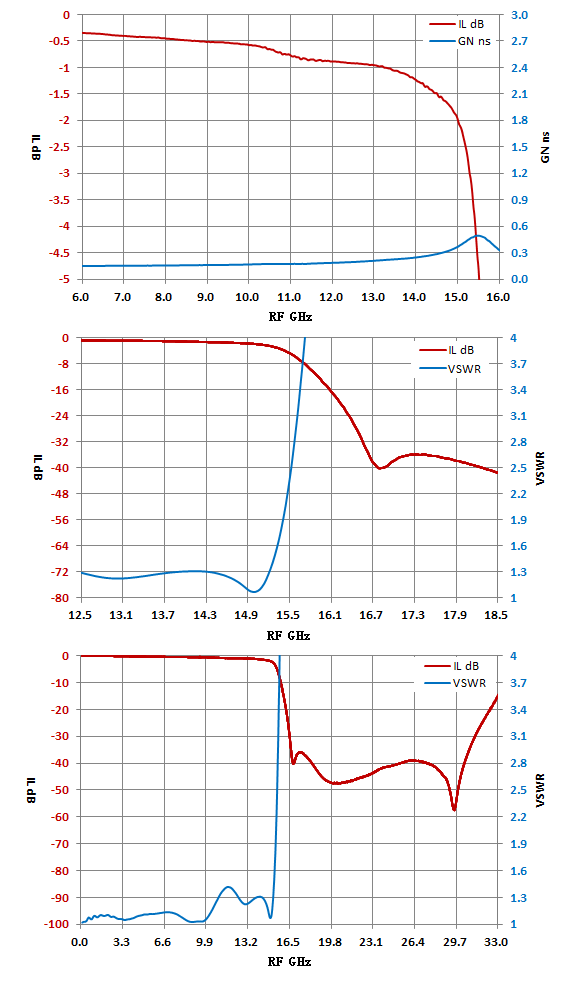

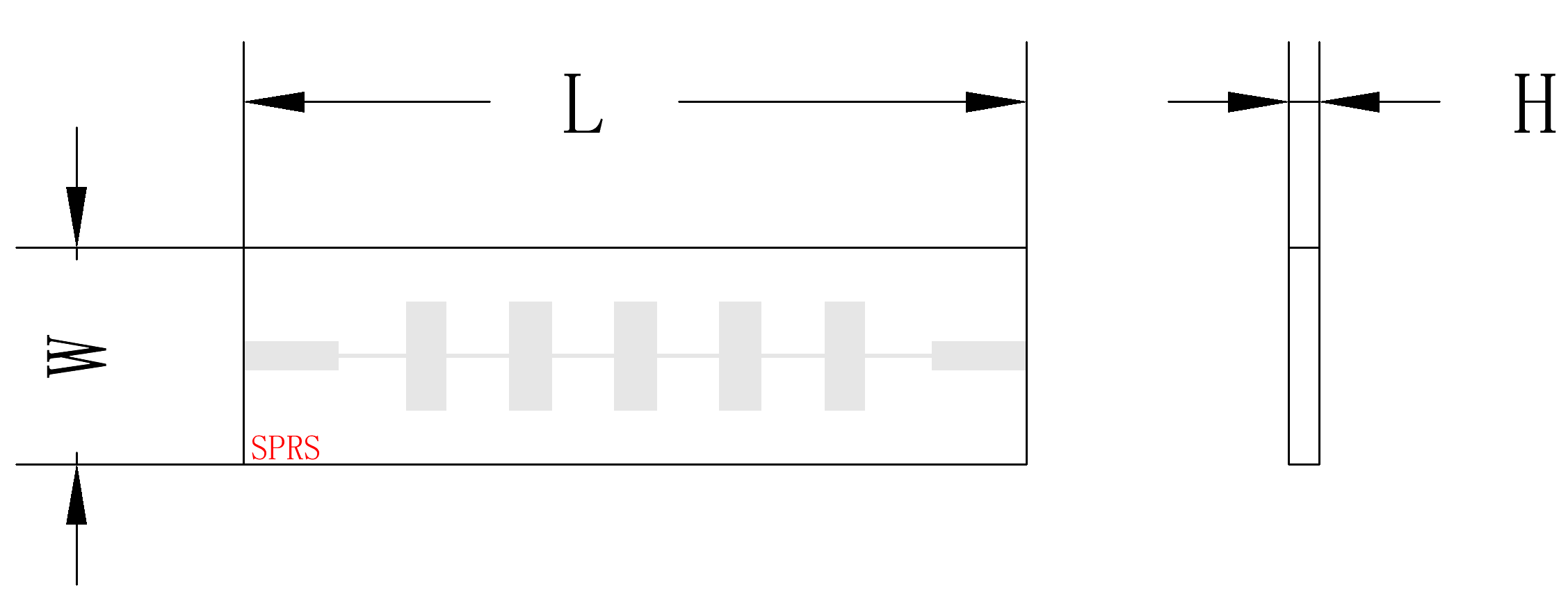

| Outline size | L:4.0，W:2.0，h:0.26 |

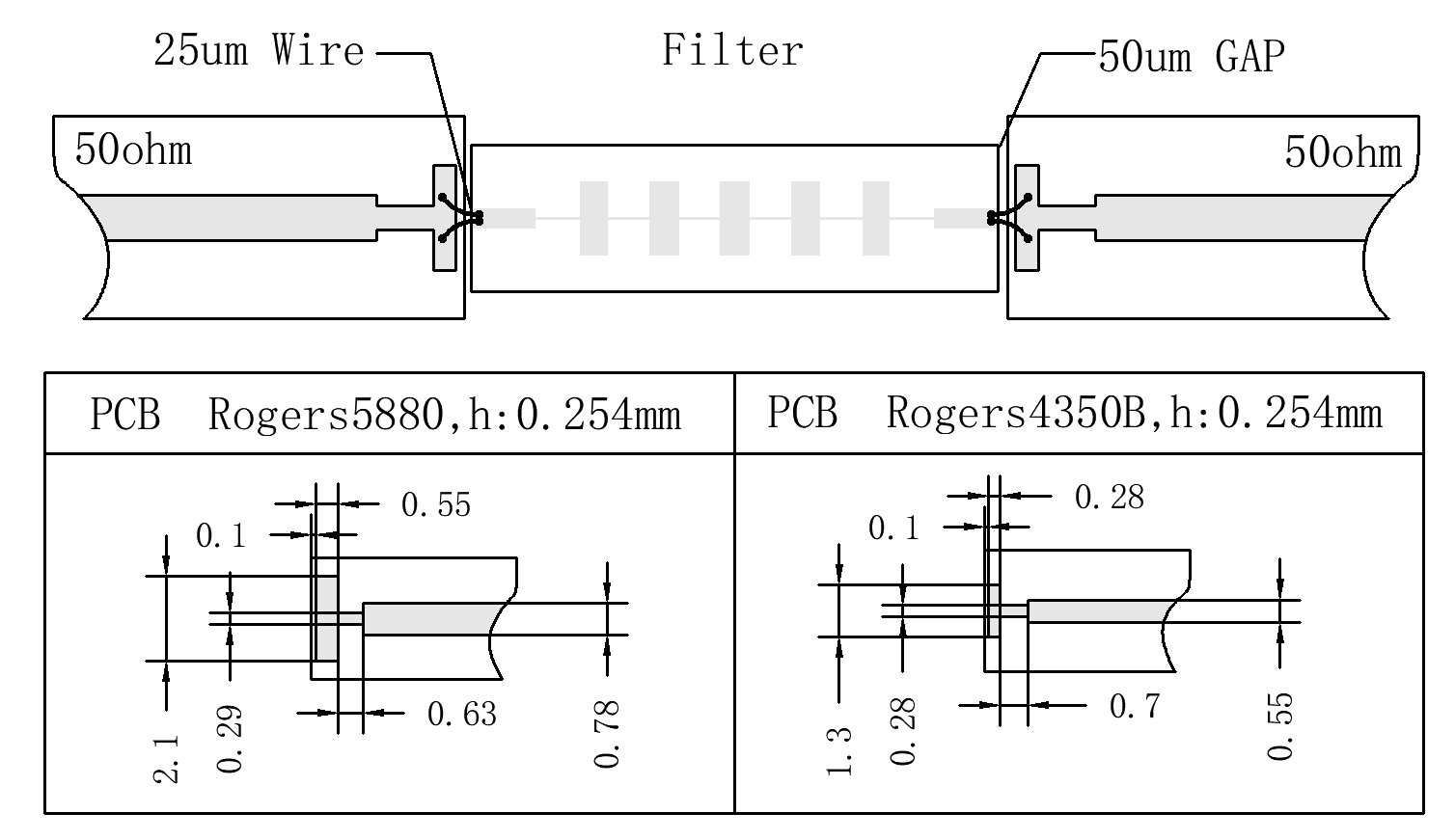

1: 0.1mm from the side wall, 2.75mm from the surface to the upper cover.
2: Suggest using conductive adhesive for bonding;
3: The chip should be installed on kovar alloy or molybdenum copper;
4: Suggest using a T-shaped structure for microstrip bonding.
