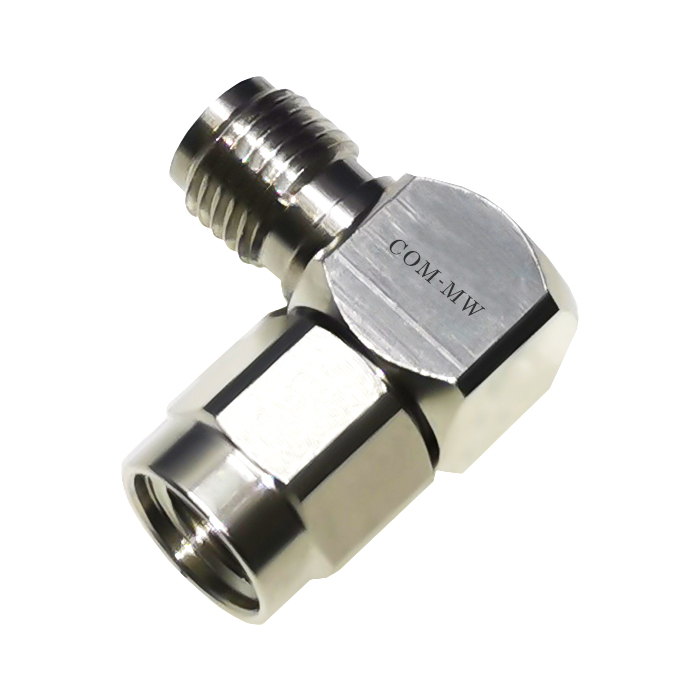

FrequencyDC~27GHz, SMA-K & SMA-J, Stainless steel
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low VSWR, high cost-effectiveness.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 27 | GHz |
| IL | 0.2@18G | dB | ||
| VSWR | 1.3@27G | |||
| VSWR | 1.2@18G |
| Power | 100W@8GHz Design assurance |
| Impedance | 50Ω |
| Connector | SMA-K & SMA-J |
| Surface | Passivation of stainless steel |
| Product shell material | Stainless steel SUS303F |
| Inner conductor | Beryllium Copper Gold Plated |
| Spanning | PTFE |
| Work Temp. | -55~+125℃ Design assurance |
| Other | Executive Standard GJB680A-2009 |
