Bandwidth1.0-18.0GHz, Rejection40@DC-0.65GHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High performance, low-temperature float
Suitable for multi-channel integration

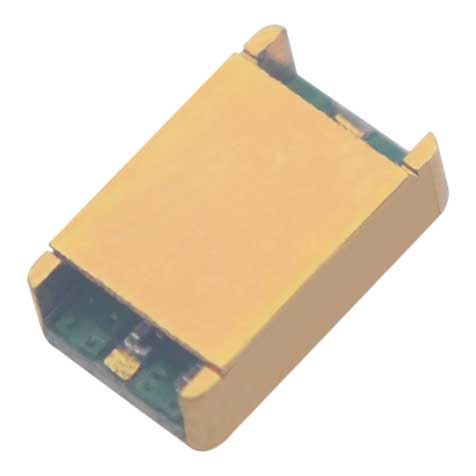

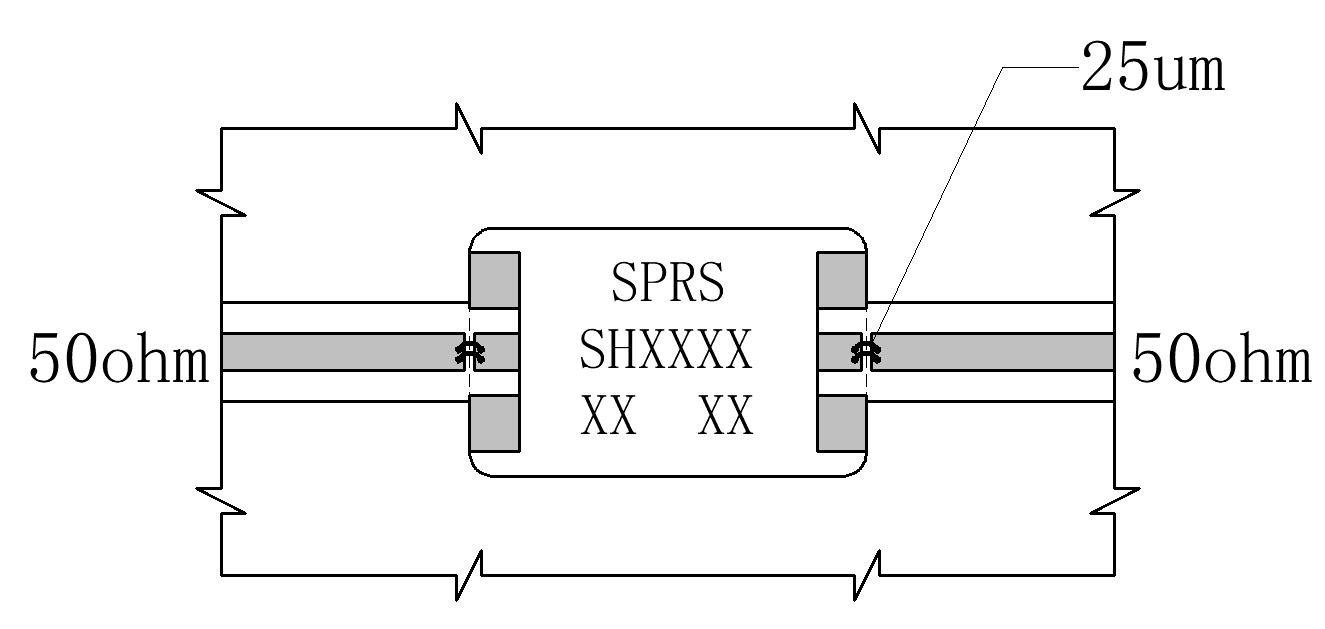

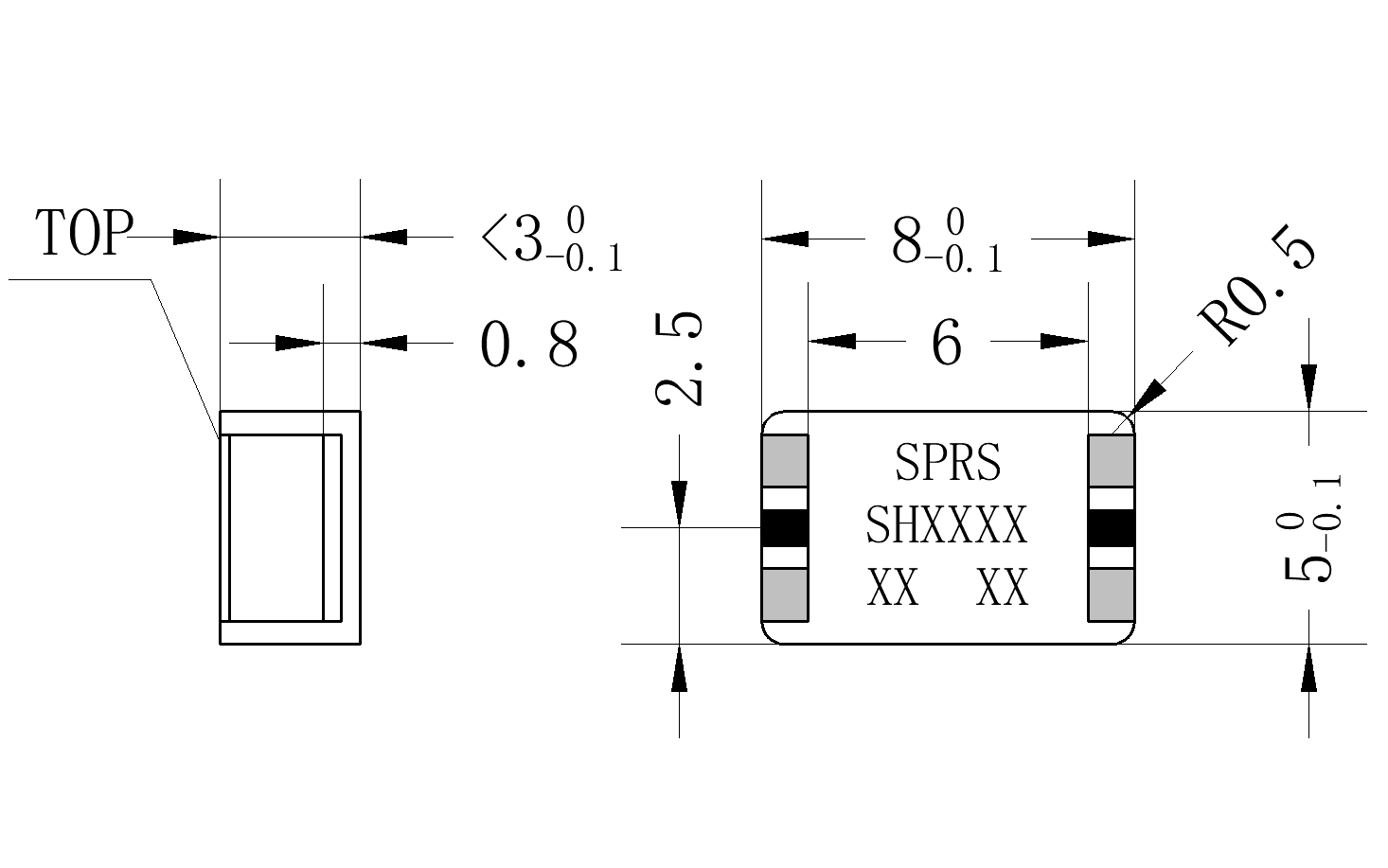

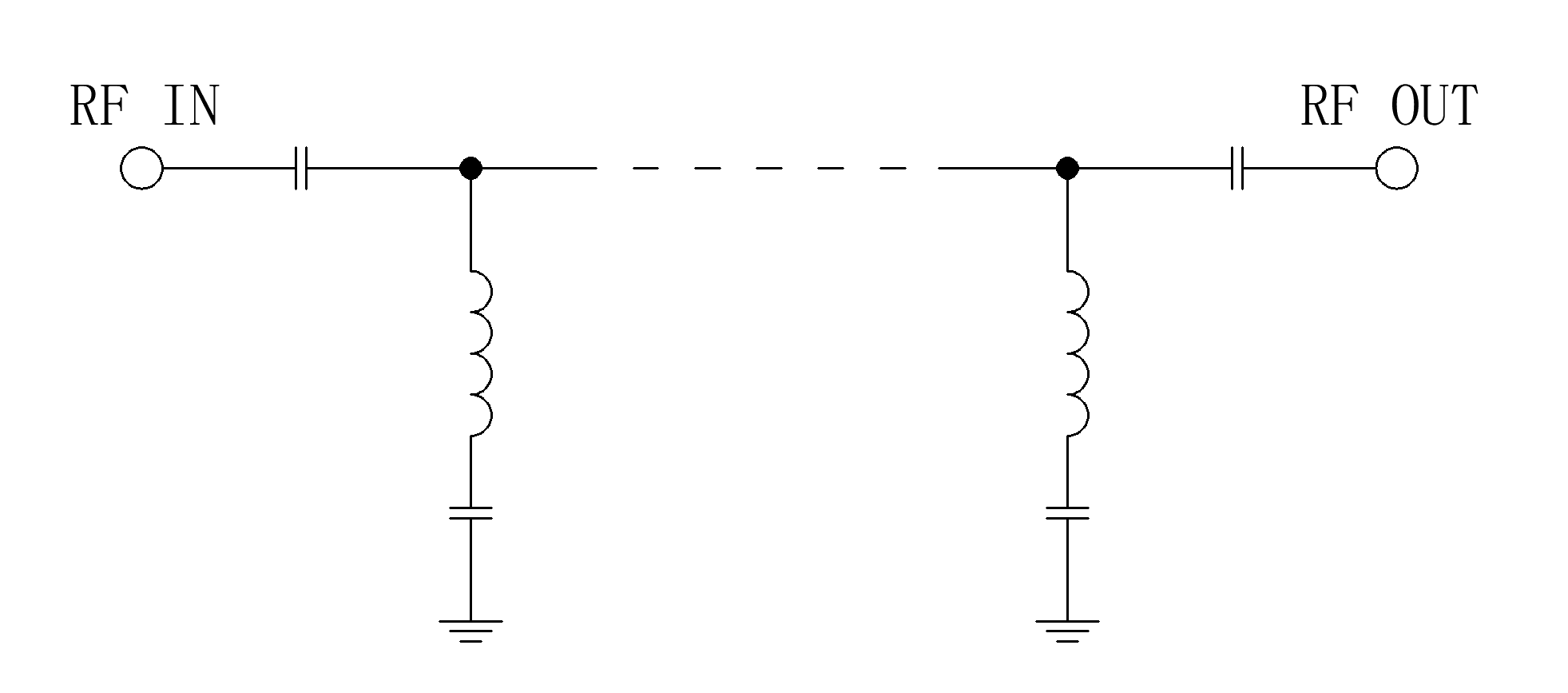

50 Ω coplanar waveguide, gold wire bonding
It effectively supplements the size and performance of the chip and LTCC
Applied in fields such as radar, electronic countermeasures, and mobile communication.

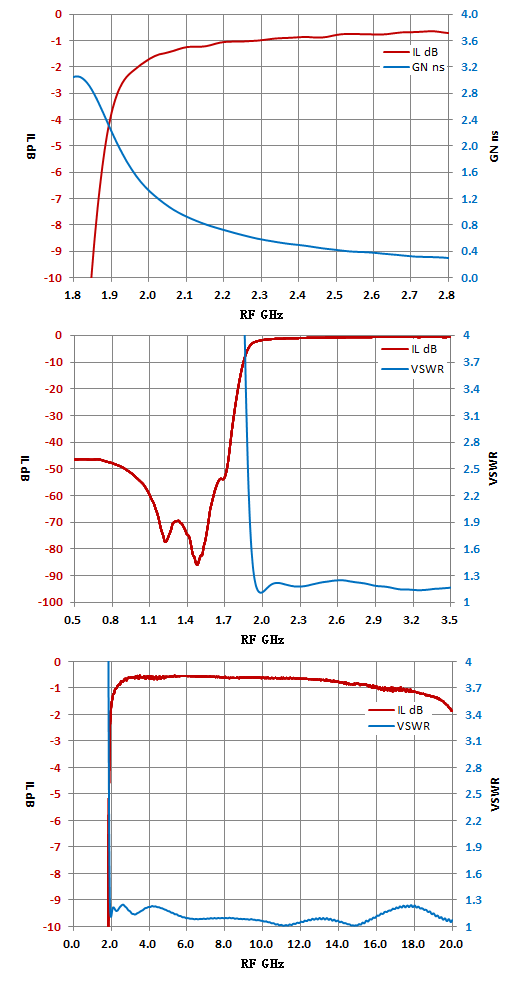

| Items | Parameters | Units |
|---|---|---|
| Center Frequency | 9.5 | GHz |
| Bandwidth | 1.0-18.0 | GHz |
| Passband IL 1 | 2.0@1.0GHz | dB |
| Passband IL 2 | 1.5@1.1-18.0GHz | dB |
| Pass band ripple 1 | 1.5@1.0-18.0GHz | dB |
| Pass band ripple 2 | 1.0@1.1-18.0GHz | dB |
| VSWR | 1.7:1 | |
| Group delay ripple | 1.5 | ns |
| Rejection | 40@DC-0.65GHz | dBc |
| power | 0.1W CW |
| Operation Temp. | -40~+70℃ |
| Storage Temp. | -55~+85℃ |
1: Recommend using low stress conductive adhesive,
2: Suggest using separate chambers, interchangeable ports, and does not support reflow soldering,
3: Good grounding is necessary to maximize the performance of the filter.
4: During the cleaning process, the filter should not be immersed in the cleaning solution. After cleaning, place it in an oven at 40-50 ° C and dry it for 20-30 minutes,
5: In practical use, embedding gaps has a significant impact on harmonic suppression, and small gaps should be maintained to avoid high-frequency resonance,
