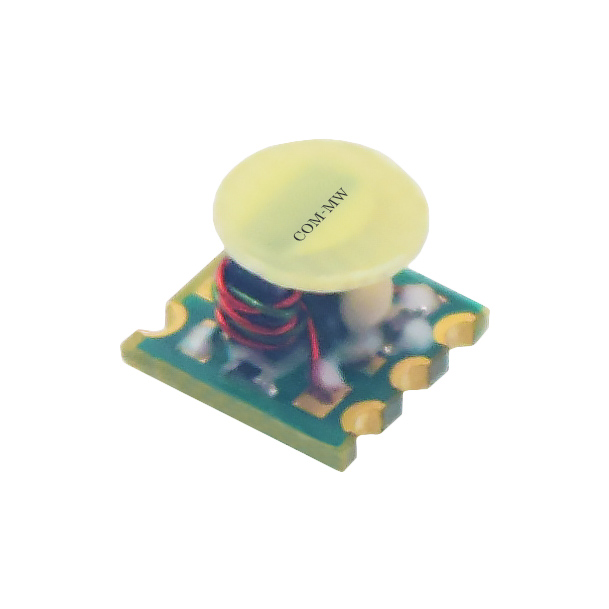

90~1000MHz, 5W, 2way, Phase0°, SMD, Industrial grade
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 90 | ~ | 1000 | MHz |
| IL | 0.8 | dB | ||
| Isolation | 18 | dB | ||
| Input VSWR | 1.25 | |||
| Output VSWR | 1.25 | |||
| Amplitude balance | 0.3 | dB | ||
| Phase balance | 3 | ° |
| Power Capacity | 5W |
| X-Way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMD |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |

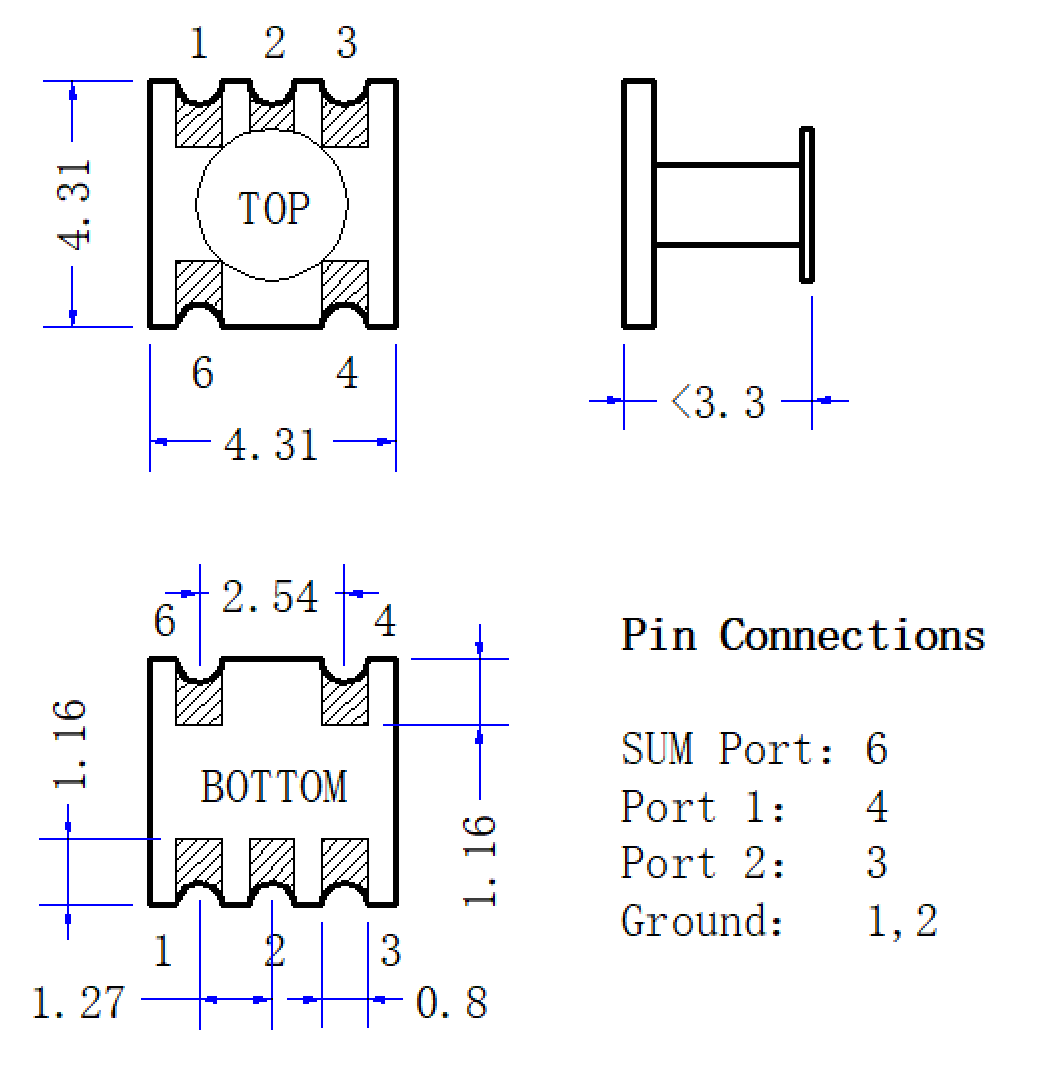

| Common port | 6 |
| Dispatch Port | 3，4 |
| GND | 1，2 |
| 1 | Short term soaking and cleaning, please dry in a timely manner. |
| 2 | The product supports 260 ℃ reflow soldering. |
