5~1000MHz, 1W, 4way, 0°, SMD, Substitutes modelMAPDCT0028
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 5 | ~ | 1000 | MHz |
| IL | 1.2 | 1.4 | dB | |
| Isolation | 17 | dB | ||
| Input VSWR | 1.45 | |||
| Output VSWR | 1.55 | |||
| Amplitude balance | 0.5 | dB | ||
| Phase balance | 8 | ° |
| Power Capacity | 1W Design assurance |
| X-Way | 4-way |
| Phase | 0° |
| Impedance | 75Ω |
| Connector | SMD |
| Operation Temp. | -40~+85℃ Design assurance |
| Substitutes model | MAPDCT0028 |
| ROHS | Compliant Available |

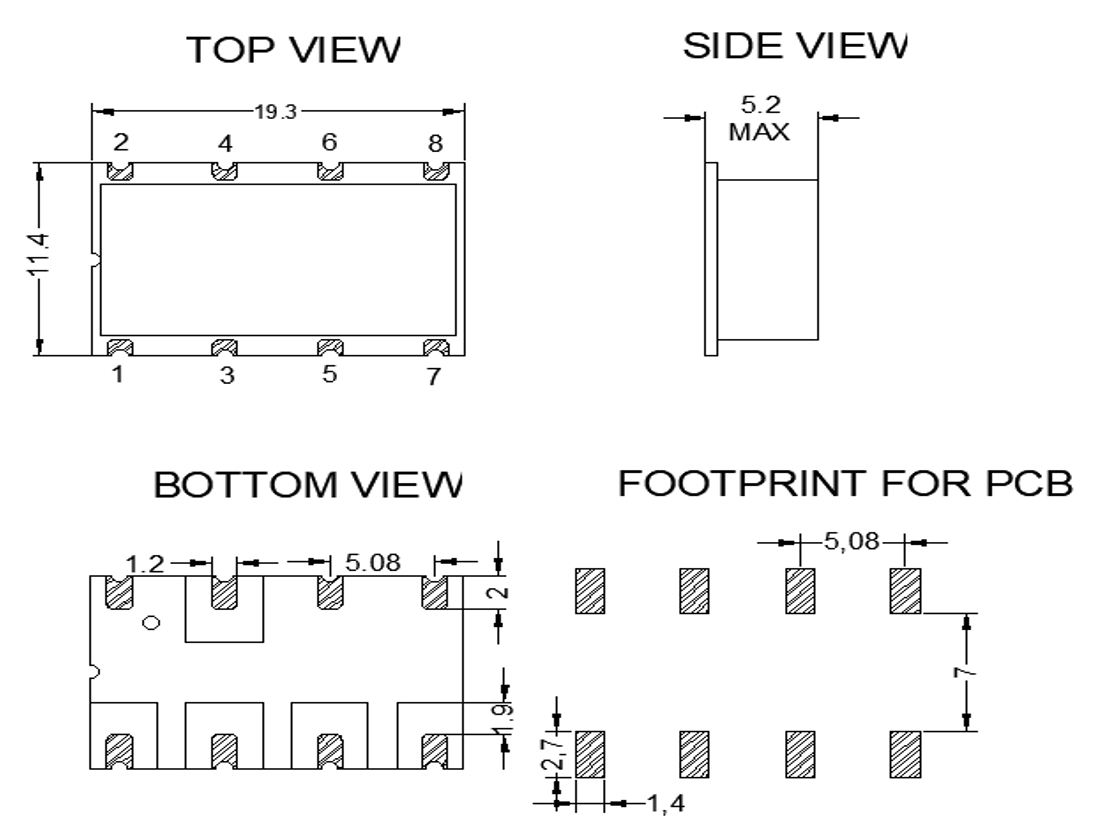

| Common port | 3 |
| Dispatch Port | 2,4,6,8 |
| GND | 1,5,7 |
| 1 | Short term soaking and cleaning, please dry in a timely manner. |
| 2 | Support 245 ° reflow soldering. |
