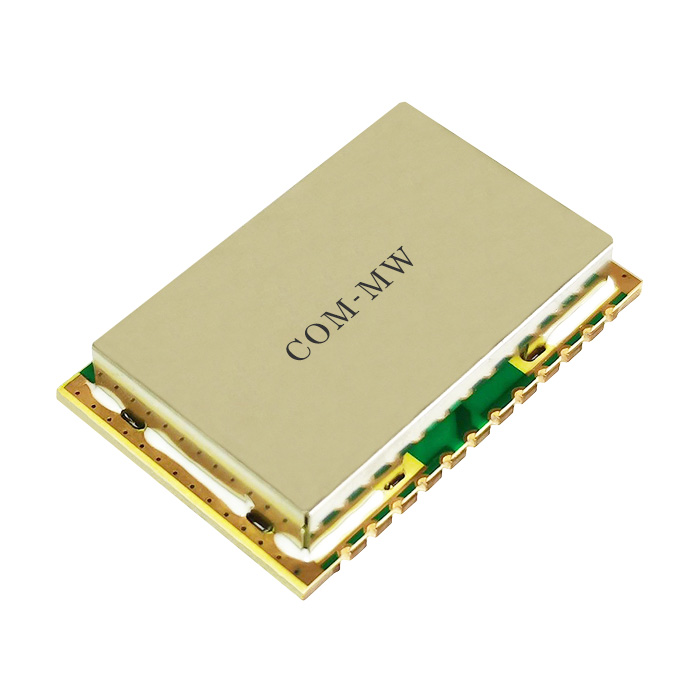

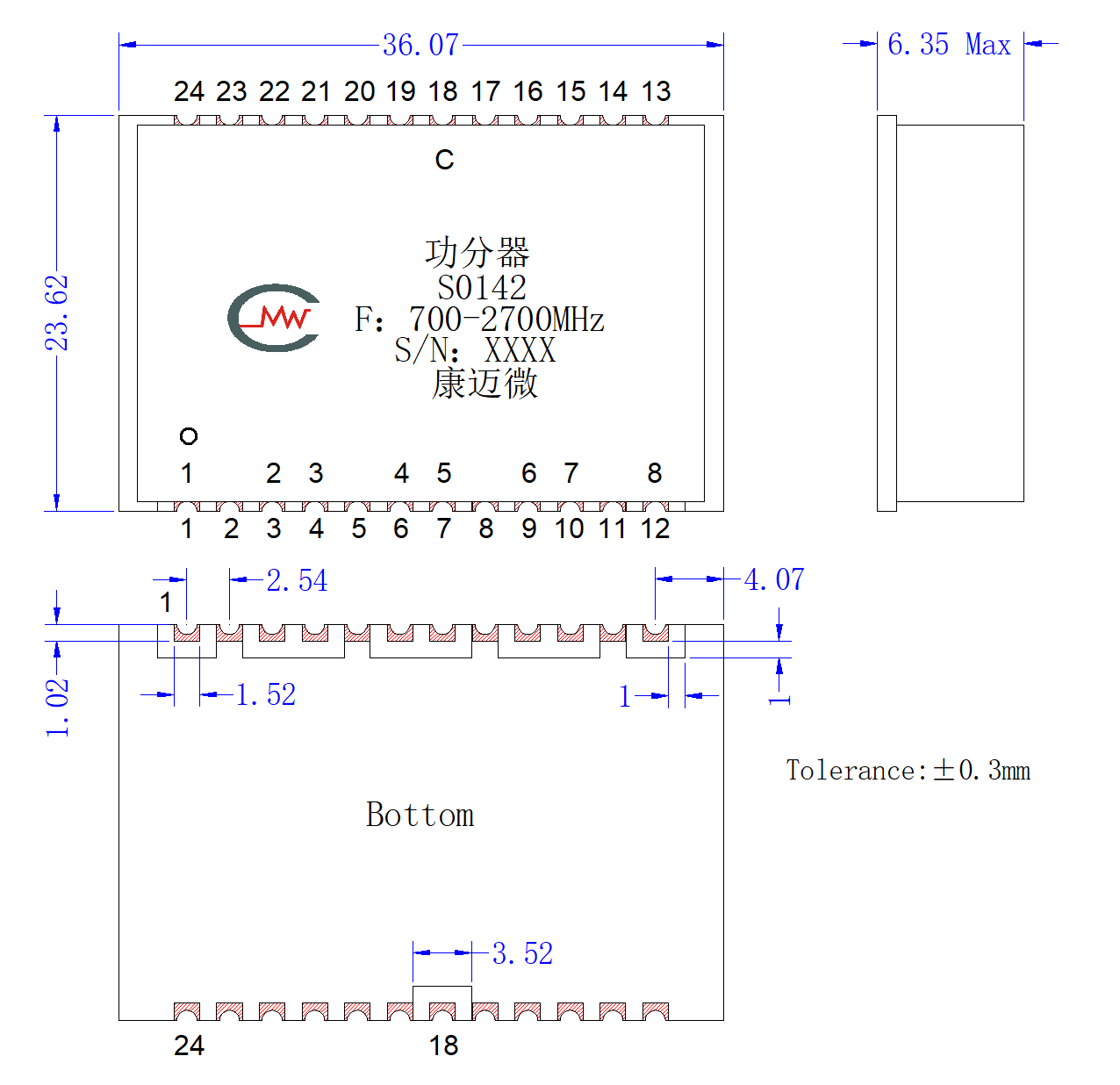

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 700 | ~ | 2700 | MHz |
| IL | 3.5 | 4.9 | dB | |
| Isolation | 10 | 15 | dB | |
| Input VSWR | 1.9 | 2.5 | ||
| Output VSWR | 1.6 | 1.9 | ||
| Amplitude balance | 1.2 | 2.1 | dB | |
| Phase balance | 10 | 19 | ° |
| Power | 2W |
|---|---|
| way | 8-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMD |
| Work Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | Replace SEPS-8-272+ |
| Common port | 18 |
|---|---|
| Dispatch Port | 1，3，4，6，7，9，10，12 |
| GND | Other |

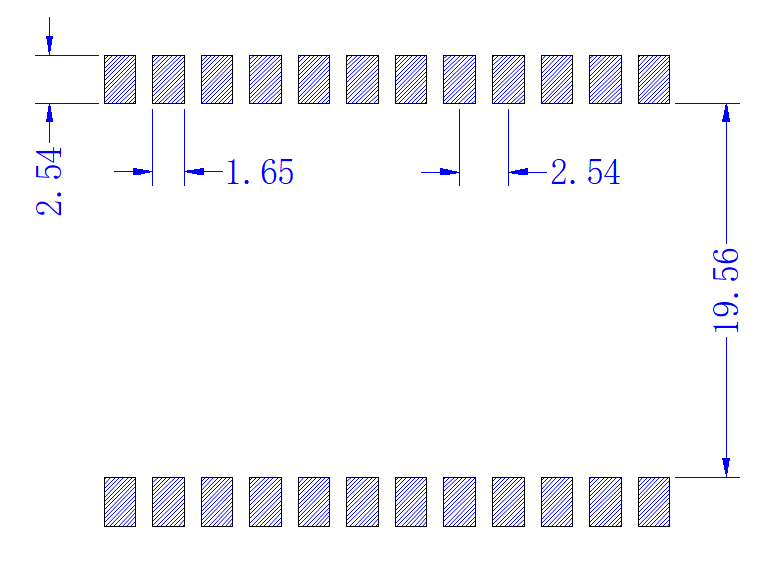

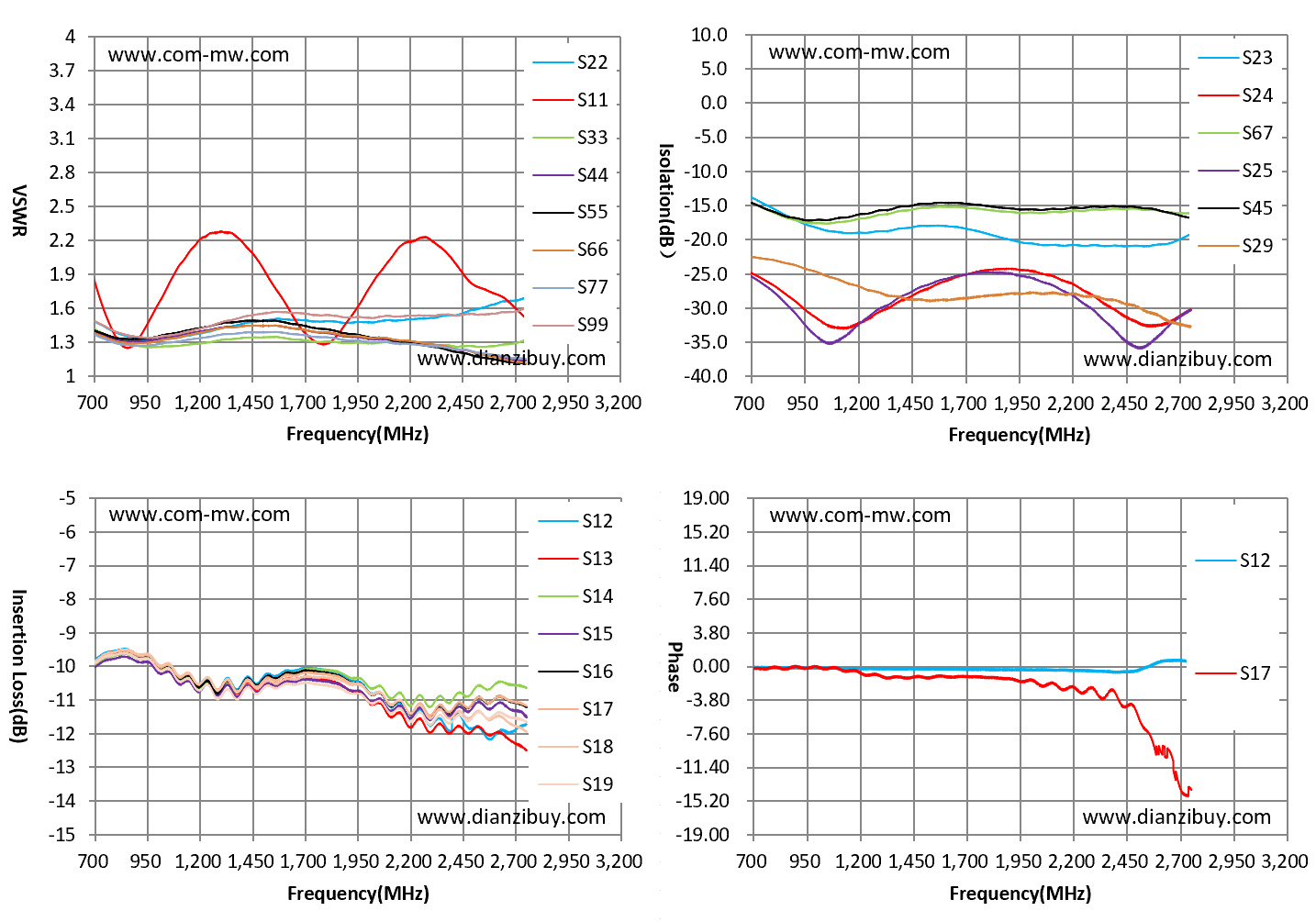

| F(MHz) | S12 IL | S23 ISO | S11 VSWR | S22 VSWR |
|---|---|---|---|---|
| 700 | -9.79 | -13.8 | 1.83 | 1.48 |
| 900 | -9.66 | -17.1 | 1.33 | 1.33 |
| 1100 | -10.3 | -18.9 | 1.96 | 1.34 |
| 1300 | -10.6 | -18.8 | 2.27 | 1.42 |
| 1500 | -10.3 | -17.9 | 1.97 | 1.48 |
| 1800 | -10.1 | -19.2 | 1.48 | 1.29 |
| 2200 | -11.5 | -20.8 | 2.19 | 1.5 |
| 2500 | -11.8 | -20.9 | 1.81 | 1.58 |
| 2700 | -11.9 | -20 | 1.61 | 1.66 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
|---|---|
| 2 | The product supports 220 ℃ reflow soldering. |
