5~1000MHz, 1W, 2way, Phase0°, SMD, Industrial grade, 替代SBTC-2-10L+
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Small size and low price.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 5 | ~ | 1000 | MHz |
| IL | 0.6 | 1.2 | dB | |
| Isolation | 18 | 21 | dB | |
| Input VSWR | 1.2 | 1.4 | ||
| Output VSWR | 1.2 | 1.3 | ||
| Amplitude balance | 0.3 | 0.6 | dB | |
| Phase balance | 3 | 5 | ° |
| Power Capacity | 1W |
| X-Way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMD |
| Operation Temp. | -40~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 替代SBTC-2-10L+ |

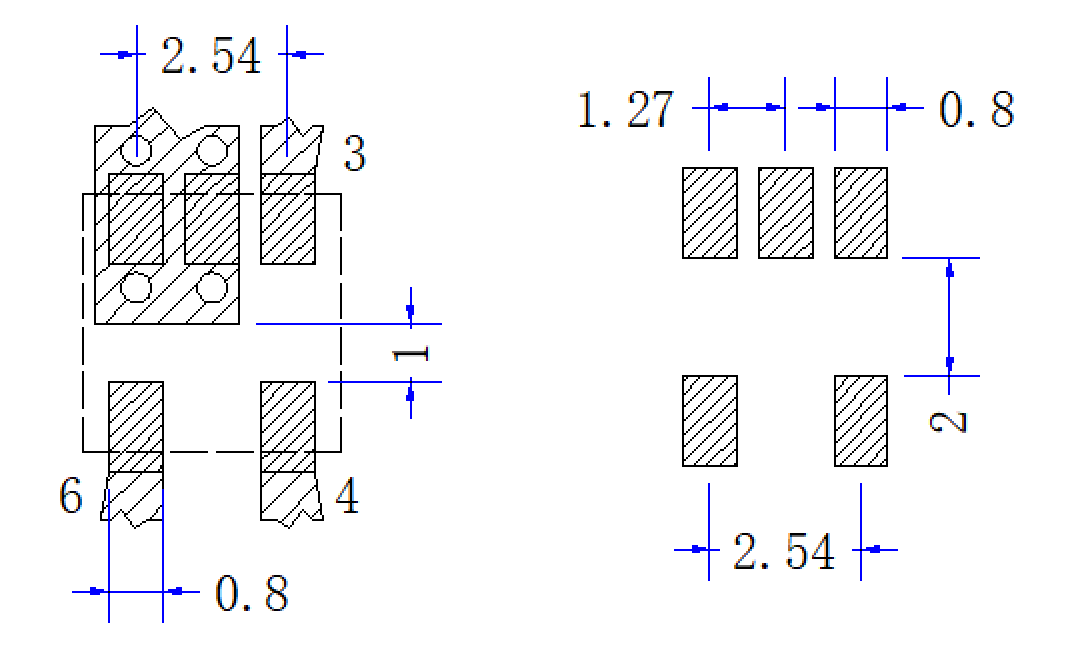

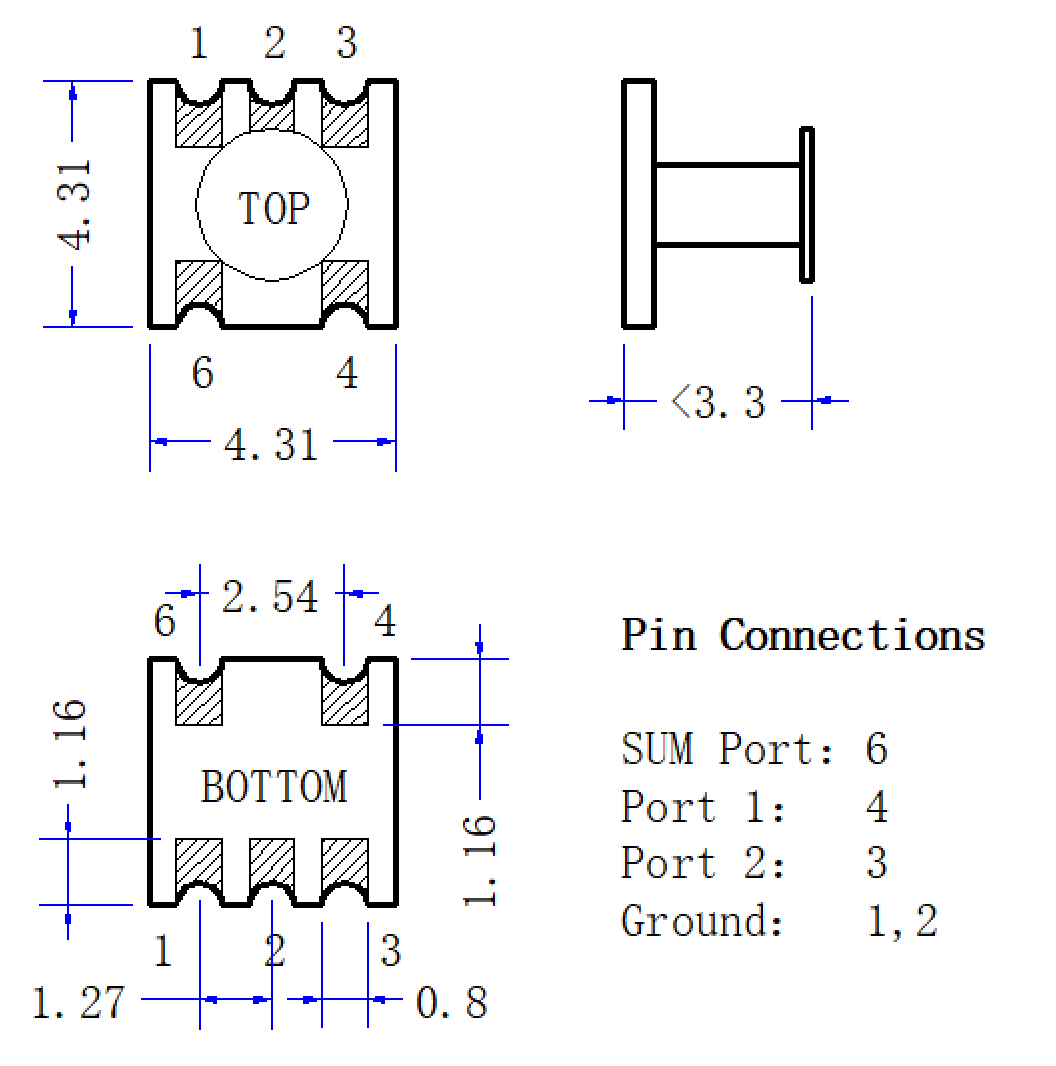

| Common port | 6 |
| Dispatch Port | 3，4 |
| GND | 1，2 |

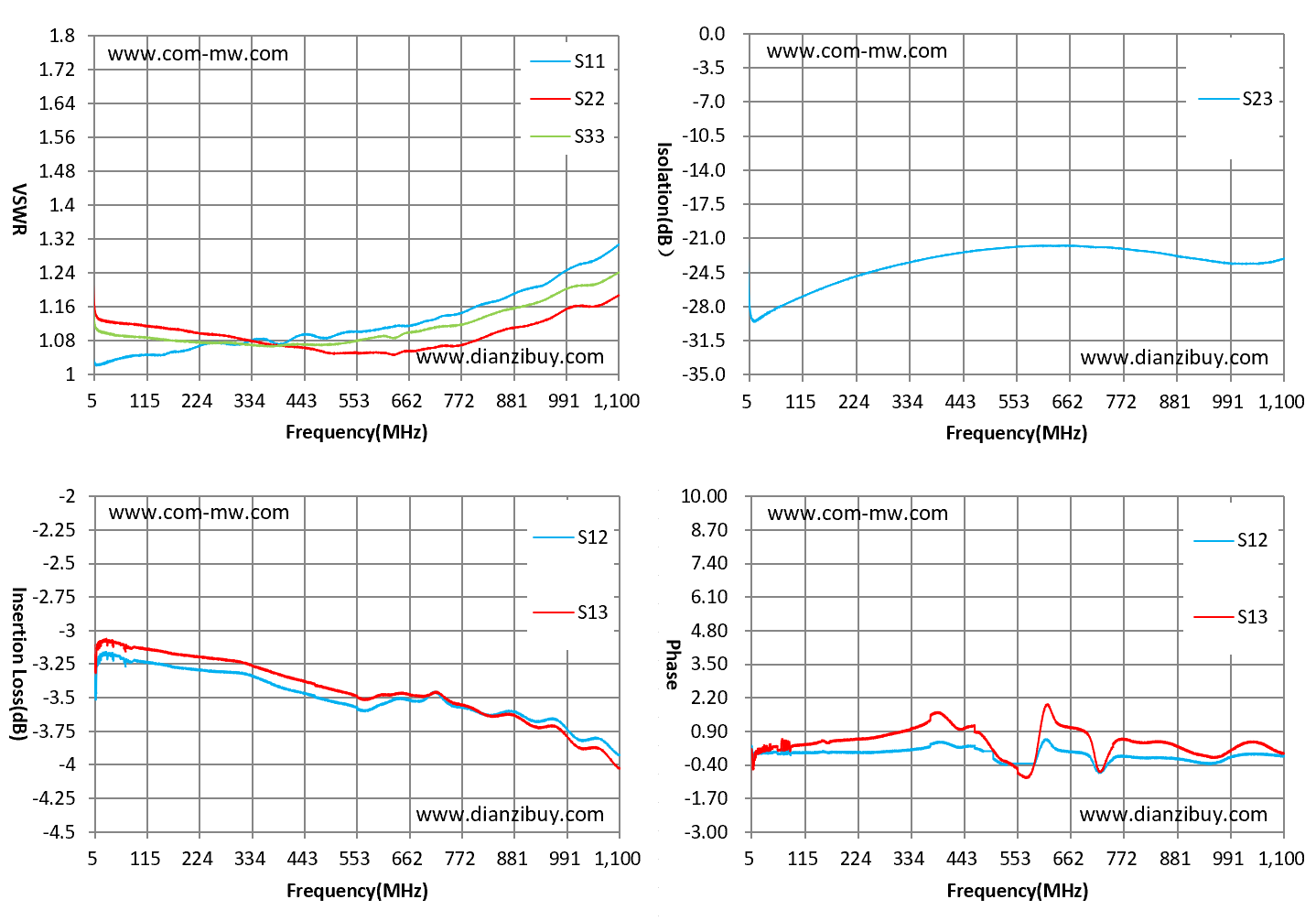

| F(MHz) | S12 IL | S23 ISO | S11 VSWR | S22 VSWR |
|---|---|---|---|---|
| 5 | 3.18 | -27.6 | 1.03 | 1.16 |
| 10 | -3.22 | -29.2 | 1.02 | 1.14 |
| 50 | -3.19 | -28.5 | 1.03 | 1.12 |
| 100 | -3.23 | -27.3 | 1.04 | 1.11 |
| 200 | -3.29 | -25.3 | 1.06 | 1.11 |
| 400 | -3.43 | -22.8 | 1.07 | 1.07 |
| 600 | -3.54 | -21.8 | 1.11 | 1.05 |
| 800 | -3.61 | -22.2 | 1.16 | 1.08 |
| 1000 | -3.78 | -23.6 | 1.25 | 1.16 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 260 ℃ reflow soldering. |
