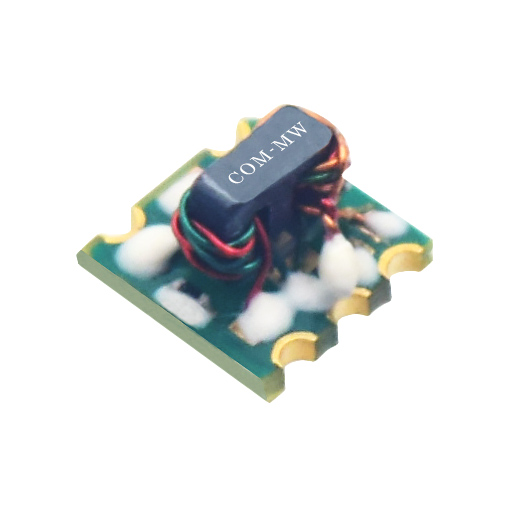

5~1000MHz, 1W, 2way, 0°, SMD, Substitutes modelSBTC-2-10+
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| 1 | Low loss. |
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 5 | ~ | 1000 | MHz |
| IL | 1.2 | dB | ||
| Isolation | 18 | dB | ||
| Input VSWR | 1.4 | |||
| Output VSWR | 1.3 | |||
| Amplitude balance | 0.6 | dB | ||
| Phase balance | 5 | ° |
| Power Capacity | 1W Design assurance |
| X-Way | 2-way |
| Phase | 0° |
| Impedance | 50Ω |
| Connector | SMD |
| Operation Temp. | -45~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Substitutes model | SBTC-2-10+ |
| ROHS | Compliant Available |

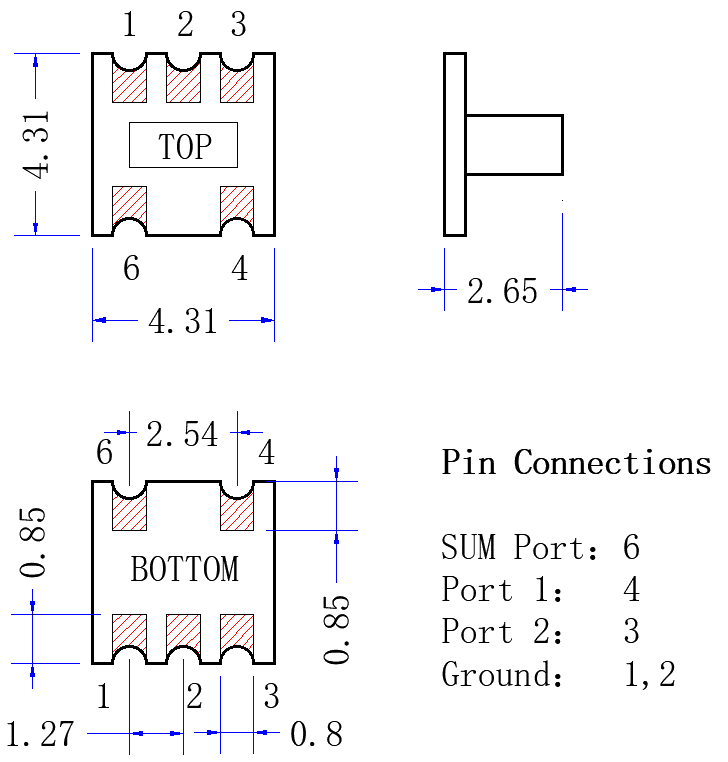

| Common port | 6 |
| Dispatch Port | 3，4 |
| GND | 1，2 |

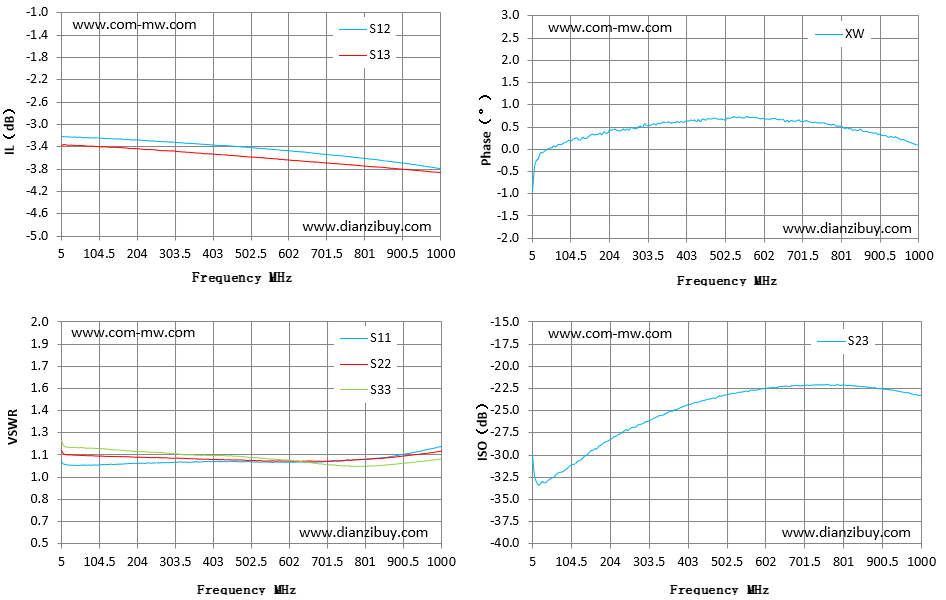

| Frequency MHz | S12 IL dB | S13 IL dB | S11VSWR | S22 VSWR | S33 VSWR | XW PU ° | S23 ISO dB |
|---|---|---|---|---|---|---|---|
| 5.00 | -3.22 | -3.38 | 1.06 | 1.13 | 1.20 | -0.96 | -29.98 |
| 76.00 | -3.23 | -3.39 | 1.03 | 1.10 | 1.15 | 0.12 | -31.92 |
| 147.00 | -3.26 | -3.41 | 1.04 | 1.09 | 1.13 | 0.25 | -29.97 |
| 218.00 | -3.28 | -3.44 | 1.04 | 1.09 | 1.12 | 0.46 | -27.92 |
| 289.00 | -3.31 | -3.47 | 1.05 | 1.08 | 1.11 | 0.49 | -26.39 |
| 360.00 | -3.34 | -3.51 | 1.05 | 1.08 | 1.10 | 0.62 | -25.06 |
| 431.00 | -3.38 | -3.54 | 1.06 | 1.07 | 1.10 | 0.63 | -24.04 |
| 503.00 | -3.41 | -3.58 | 1.05 | 1.06 | 1.08 | 0.67 | -23.17 |
| 574.00 | -3.45 | -3.61 | 1.05 | 1.06 | 1.07 | 0.74 | -22.70 |
| 645.00 | -3.49 | -3.66 | 1.05 | 1.06 | 1.05 | 0.68 | -22.27 |
| 716.00 | -3.54 | -3.69 | 1.06 | 1.06 | 1.03 | 0.66 | -22.16 |
| 787.00 | -3.60 | -3.73 | 1.07 | 1.07 | 1.02 | 0.54 | -22.06 |
| 858.00 | -3.65 | -3.77 | 1.08 | 1.08 | 1.03 | 0.42 | -22.28 |
| 929.00 | -3.71 | -3.81 | 1.12 | 1.10 | 1.05 | 0.28 | -22.68 |
| 1000.00 | -3.79 | -3.86 | 1.15 | 1.13 | 1.07 | 0.11 | -23.28 |
| 1 | Short term soaking and cleaning, please dry in a timely manner. |
| 2 | The product supports 260 ℃ reflow soldering. |
