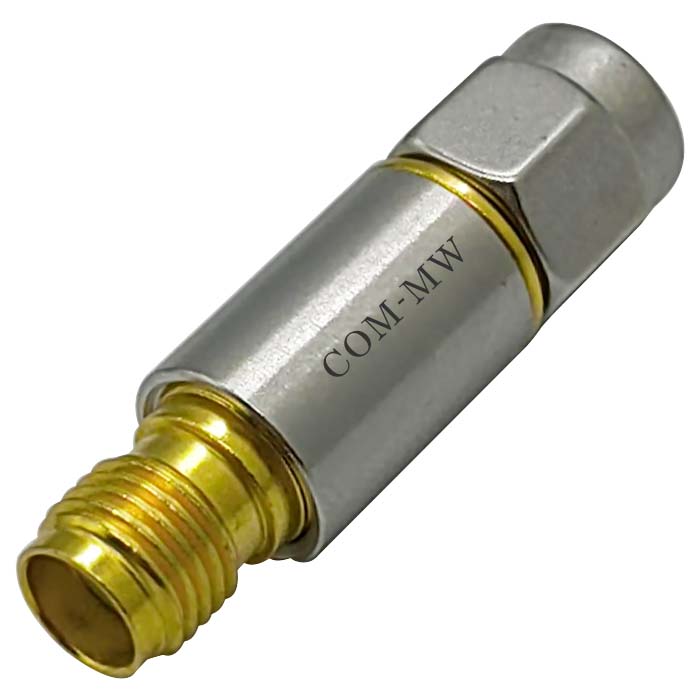

Frequency8~18GHz, Clipping level17dBm, 1W, SMA, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 8 | ~ | 18 | GHz |
| Clipping level | 17 | dBm | ||
| IL | 1.8 | dB | ||
| VSWR | 2 | |||
| Response time | 150 | ns | ||
| Recovery time | 150 | ns |
| Power Capacity | 1W Design assurance |
| Impedance | 50Ω |

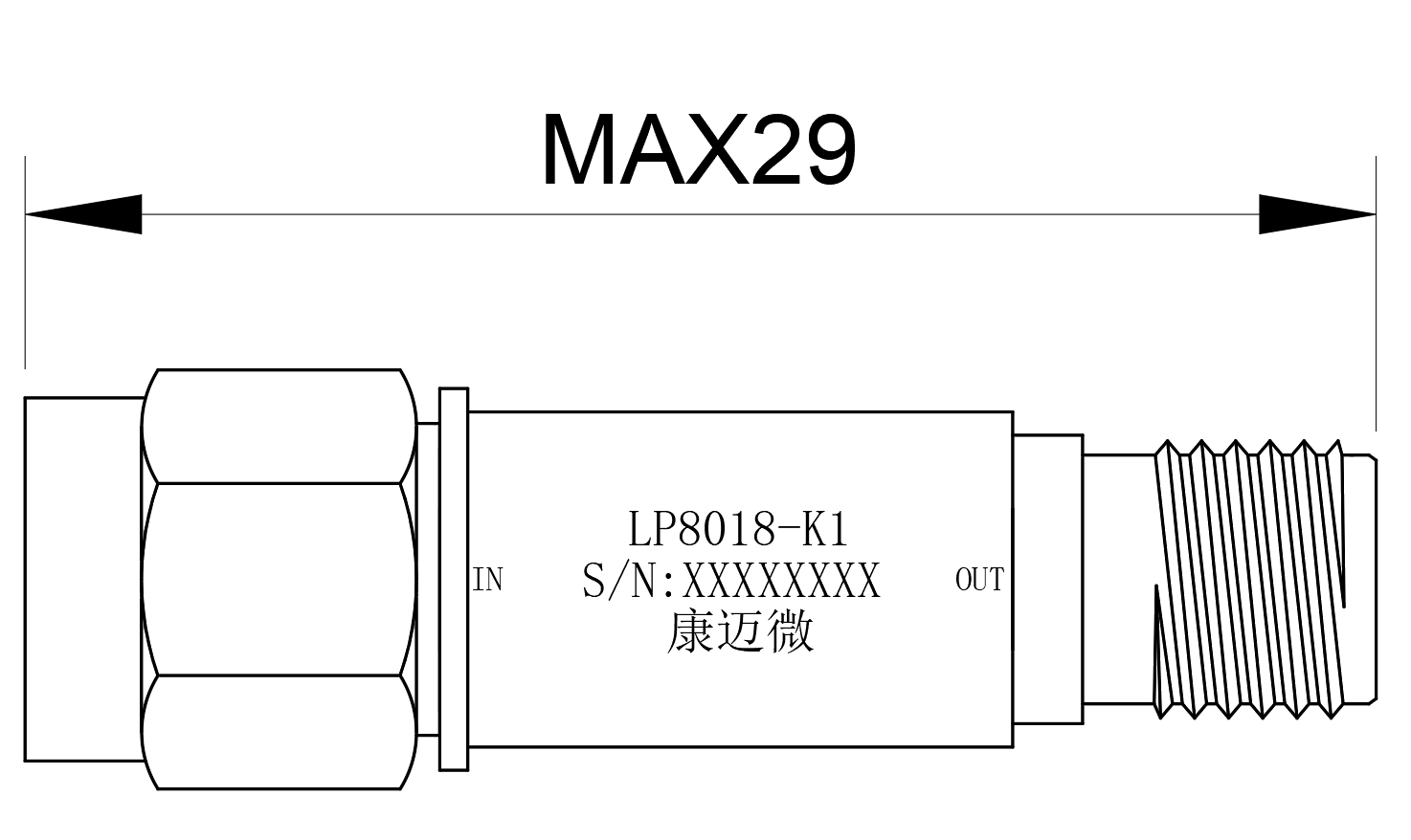

| Input port | SMA-M |
| Output port | SMA-F |
| Surface | Conductive oxidation |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | ：损耗以及驻波是在输入信号为0dBm下测试所得。 |
1, Pay attention to the direction of input and output, reverse connection may cause the product to burn out.
