Passband F11800~2700MHz, Passband F23300~4200MHz, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband F1 | 1800 | ~ | 2700 | MHz | ||
| Passband F2 | 3300 | ~ | 4200 | MHz | ||
| band 1 IL | 1.5 | dB | ||||
| band 2 IL | 2.0 | dB | ||||
| Passband ripple | 1.0 | dB | ||||
| Passband VSWR | 14 | |||||
| Band 1 Rejection | 600-960 | MHz≥ | 30 | dB | ||
| Band 1 Rejection | 3300-4200 | MHz≥ | 30 | dB | ||
| band 2 Rejection | 600-2700 | MHz≥ | 30 | dB | ||
| band 2 Rejection | 6000-8400 | MHz≥ | 30 | dB |
| Connector | SMD |
| Impedance | 50Ω |
| Power Capacity | 30dBm Design assurance |
| Operation Temp. | -40~+70℃ |
| Storage Temp. | -55~+85℃ Design assurance |
| Other | 1，材料要求符合:RoHS工艺。 |

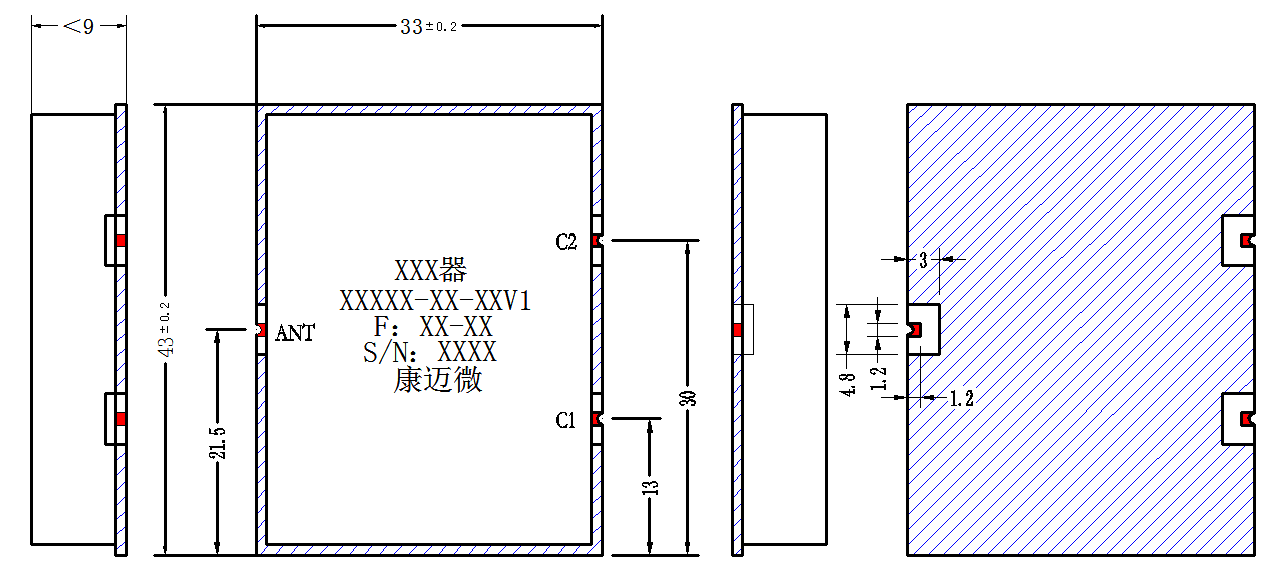

| 1 | Common port | ANT |
|---|---|---|
| 2 | Passband 1 | C1 |
| 3 | Passband 2 | C2 |
| 4 | GND Port | GND |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 190 ℃ reflow soldering |
| 3 | / |
