Frequency73.8~112GHz, Gain20dBi, Vertical polarization, Waveguide
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Horn antenna is a type of microwave antenna with a circular or rectangular cross-section that gradually opens at the end of a waveguide, and is the most widely used. Our KSHA series standard gain horn antennas all use linear polarization, covering frequencies from 320MHz to 325GHz. They are widely used in EMI, reconnaissance, antenna gain and pattern measurement, and other application fields. This series of standard gain horn antennas features high gain, low standing wave, good directionality, and high stability.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 73.8 | ~ | 112 | GHz |
| Gain | 20 | dBi | ||
| VSWR | 1.25 | |||
| Cross polarization isolation | 35 | dB |
| Polarization | Vertical polarization |
| Power Capacity | 2W Design assurance |
| Connector | Waveguide |
| Waveguide model | BJ900 or WR10 |
| Waveguide flange | FUGP900 |

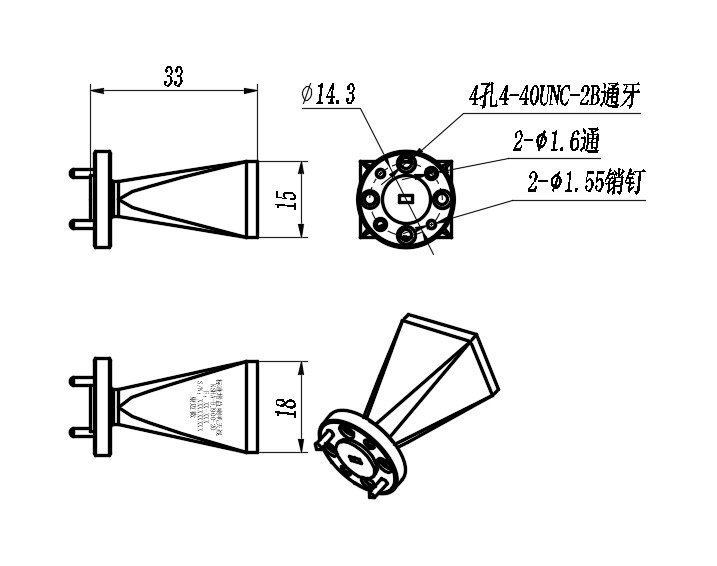

| Outline size | 19.1*19.1*33mm |
| Estimated weight | 30g |
| Material | Copper |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
