Frequency 11.9~18GHz, Gain 5dBi, Linear Pol., SMA-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

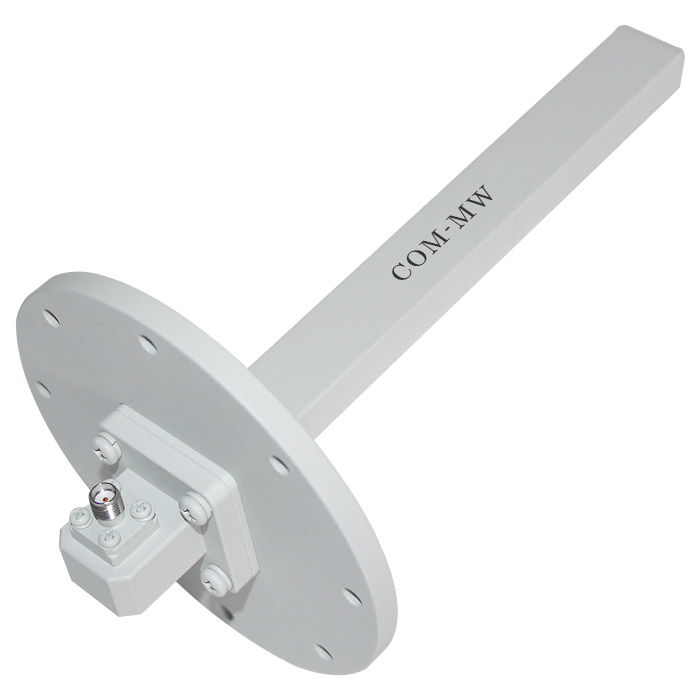

The waveguide probe is applied in antenna near-field measurement systems, with a simple structure and flat gain.
| Parameters | Min | Typical | Max | Units |
| Frequency | 11.9 | ~ | 18 | GHz |

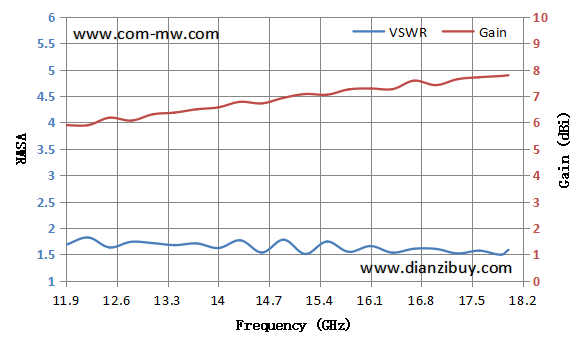

| Gain | 5 | dBi | ||
| VSWR | 2 | |||
| Cross polarization isolation | 35 | dB |
| Polarization | Linear Pol. |
| Power Capacity | 50W Design assurance |
| Connector | SMA-K |
| Waveguide model | BJ140 |

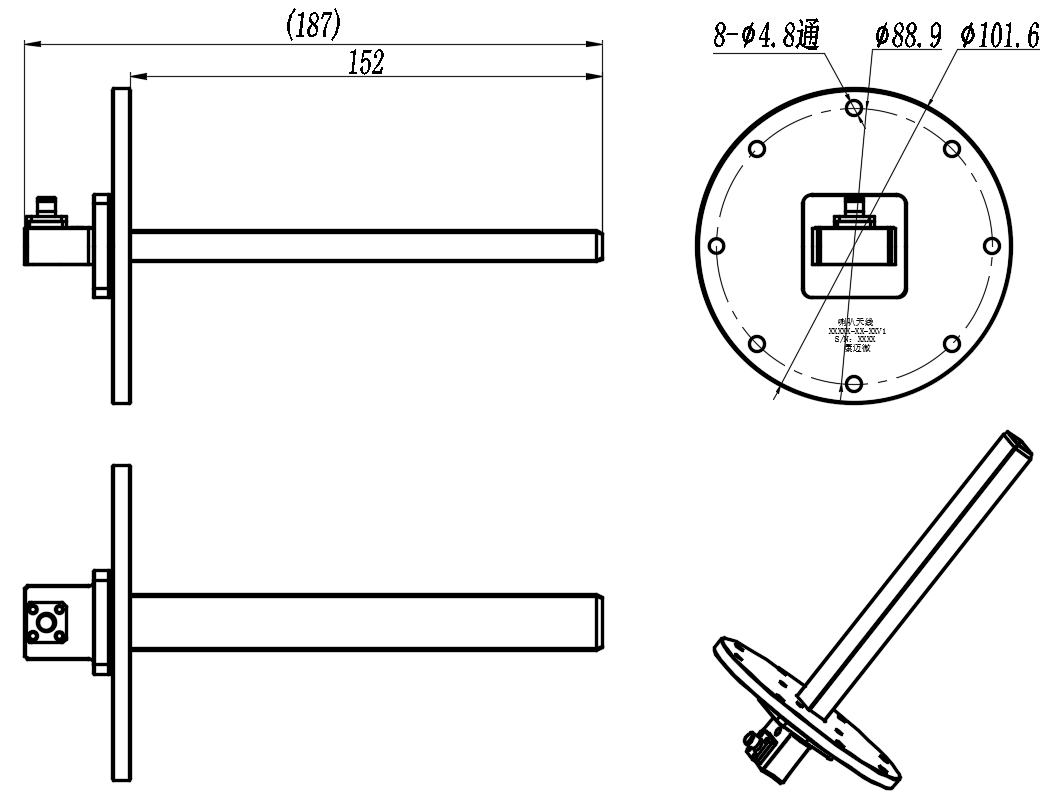

| Outline size | 101.6*101.6*187mm |
| Estimated weight | 280g |
| Material | Copper |
| surface treatment | Grey |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -40~+75℃ Design assurance |
