Frequency1~6GHz, Gain9dBi, Linear Pol., N-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

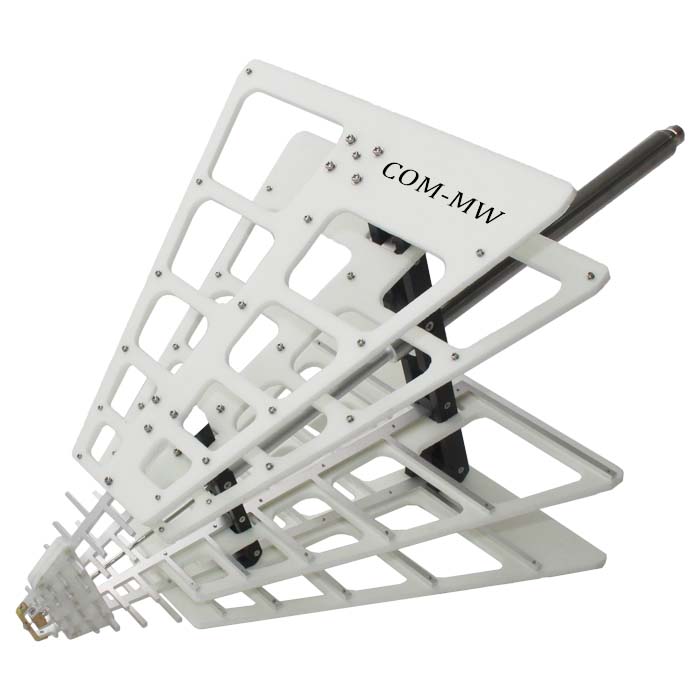

The stacked logarithmic periodic oscillator antenna consists of two logarithmic periodic oscillator structures. Stacking design helps to focus the H-plane pattern to a certain extent, and compared with ordinary logarithmic periodic antennas, the typical gain is increased by about 2-3 dB. Usually used indoors, it can work for a long time, stably, and reliably.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1 | ~ | 6 | GHz |

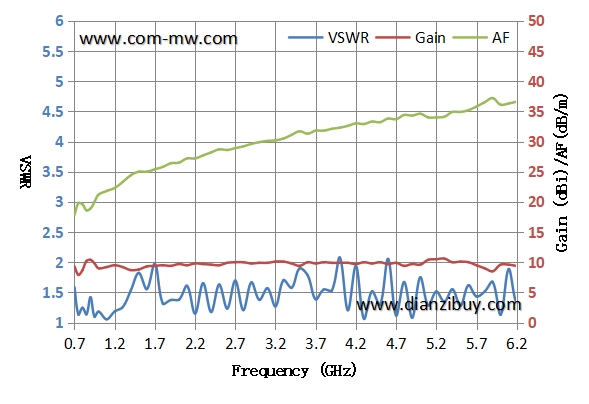

| Gain | 9 | dBi | ||
| VSWR | 2 | |||

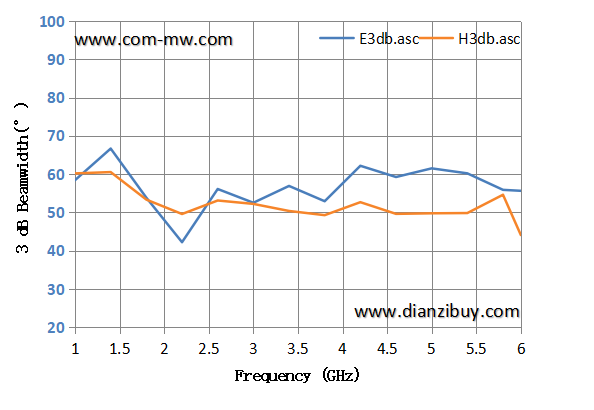

| 3dB Beamwidth | 40 | 70 | ° |
| Polarization | Linear Pol. |
| Power Capacity | 350W Design assurance |
| Connector | N -K |
| Connector material | Housing 304 stainless steel |

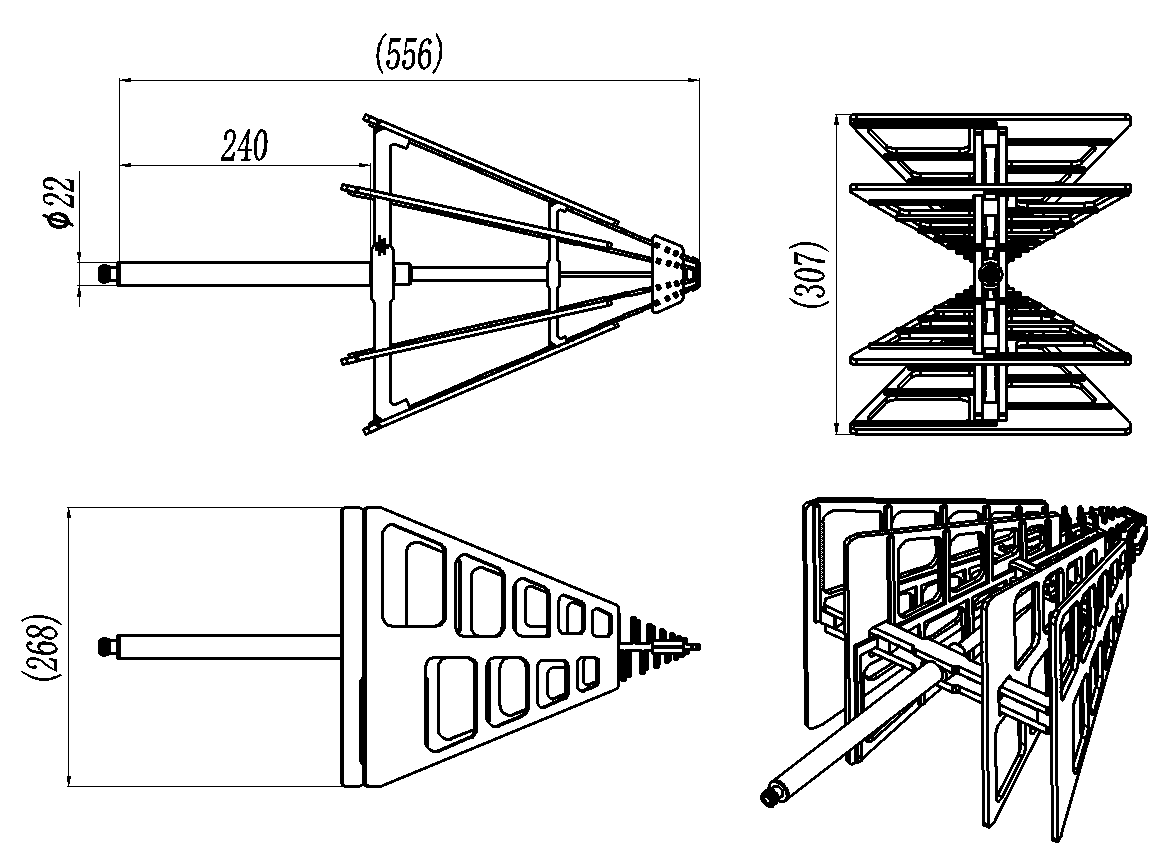

| Outline size | 560*270*310mm |
| Estimated weight | 850g |
| Surface | Sandblasting Nature Color Conductive Oxidation |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -40~+60℃ Design assurance |
| Other | Substitutes STLP 9149 |
1. Non professionals are not allowed to disassemble.
/
