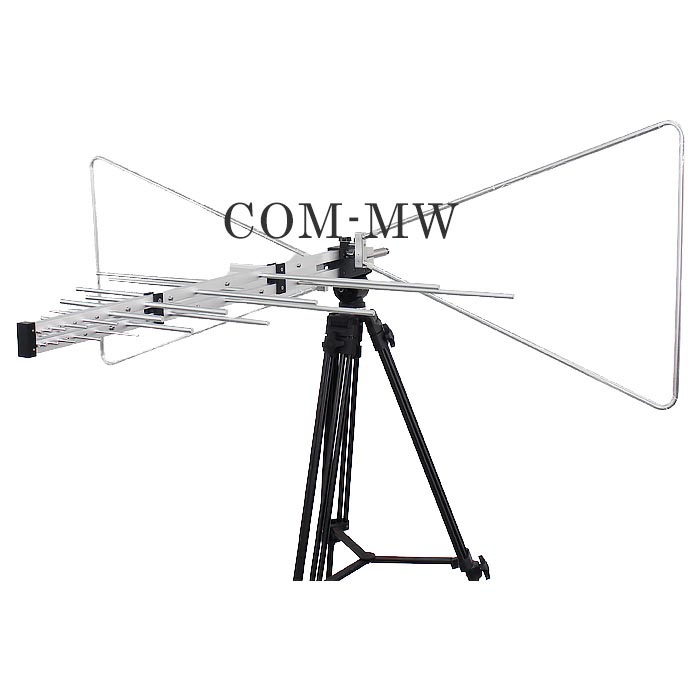

Frequency30~3000MHz, Gain4dBi, Linear Pol., N-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
It has characteristics such as medium gain, wide operating frequency band, and good performance consistency within the operating frequency band.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 30 | ~ | 3000 | MHz |
| Gain | -16 | 4 | dBi | |

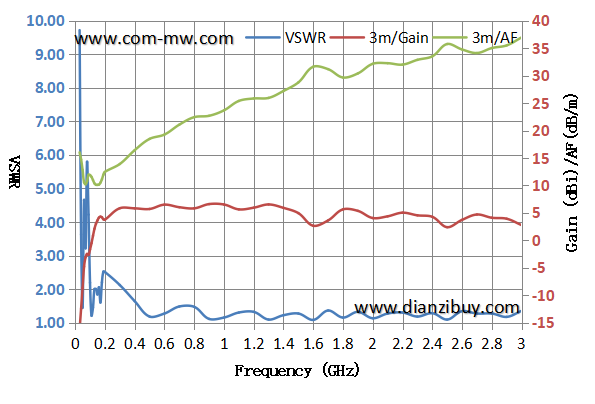

| VSWR | 2 | |||

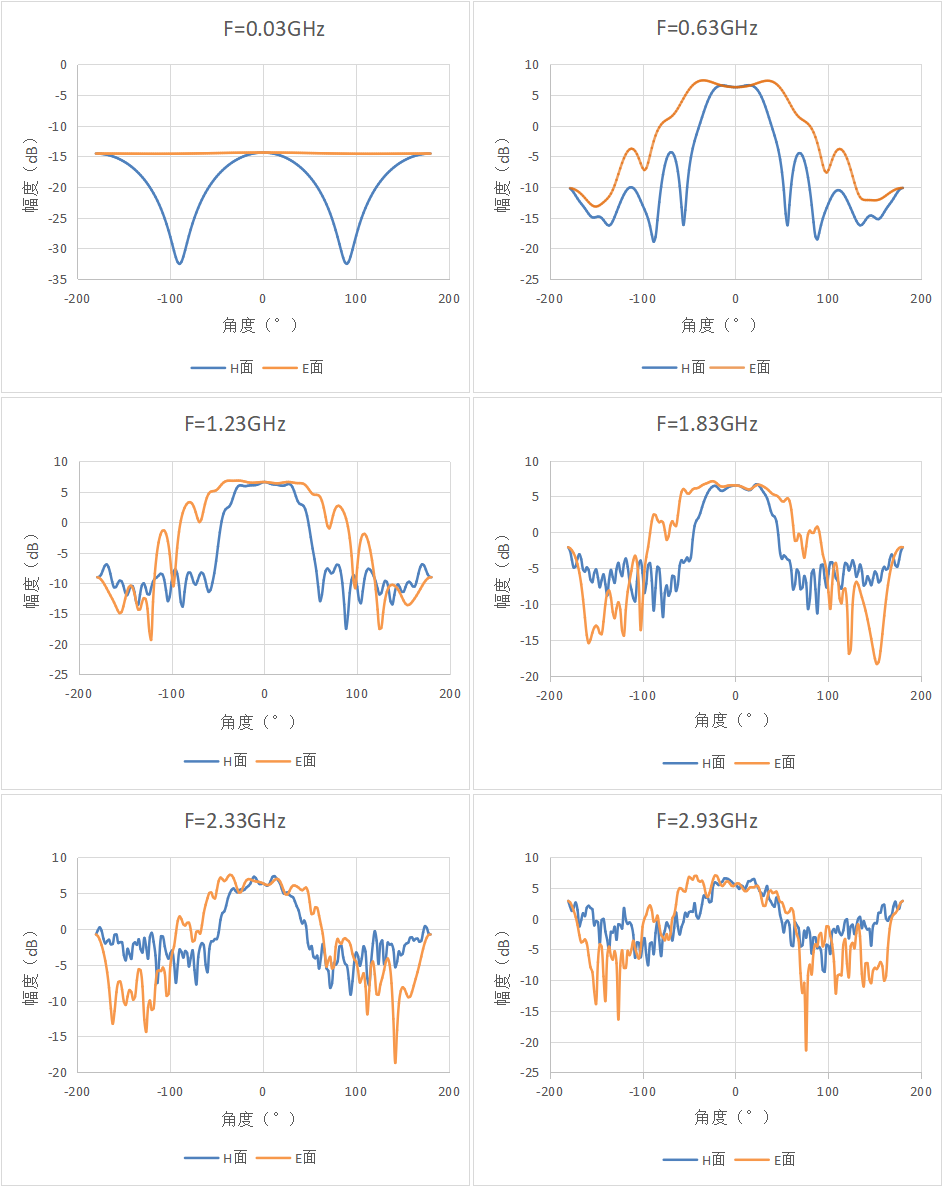

| 3dB Beamwidth | 45 | 120 | °@≥150MHZ | |
| Antenna factor | 10 | 40 | dB/m |
| Polarization | Linear Pol. |
| Power Capacity | 20W Design assurance |
| Connector | N-K |

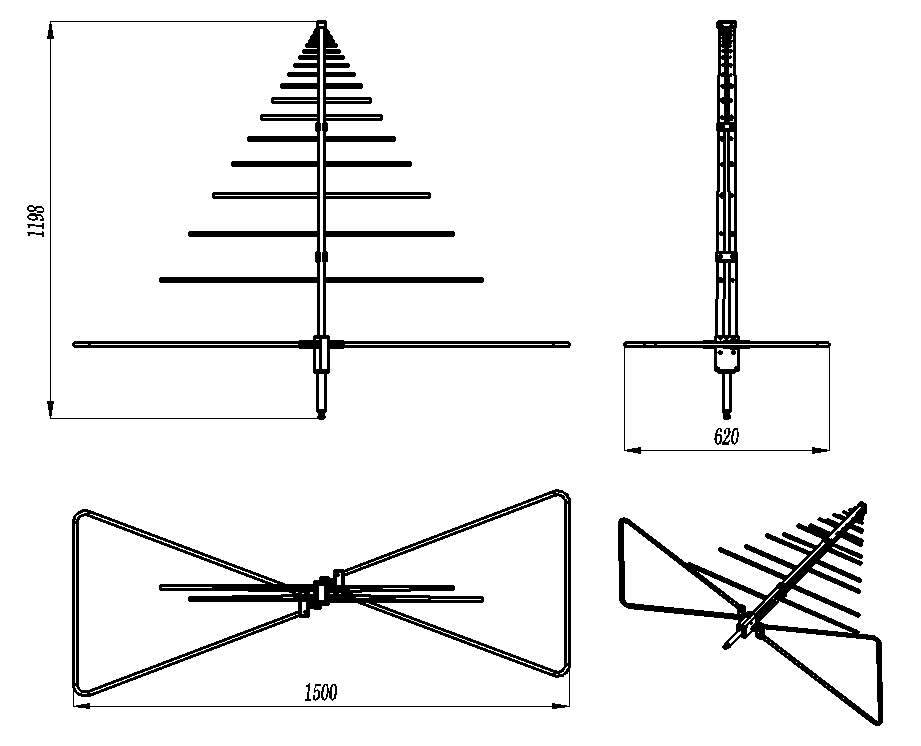

| Outline size | 1198*1500*620mm |
| Estimated weight | 2.6Kg |
| Surface | Conductive oxidation |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -40~+60℃ Design assurance |
| Other | 推荐天线架型号TXJ7-2000-1257 |
1. Non professionals are not allowed to disassemble.
/
