It has the characteristics of wide bandwidth, low sidelobes, and high efficiency.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2.6 | 7.8 | GHz | |
| Gain | 10 | dBi | ||
| VSWR | 1.6 |
| Polarization | Linear Pol. |
| Power Capacity | 200W Design assurance |
| Waveguide model | WRD250D30&30JS2500 |

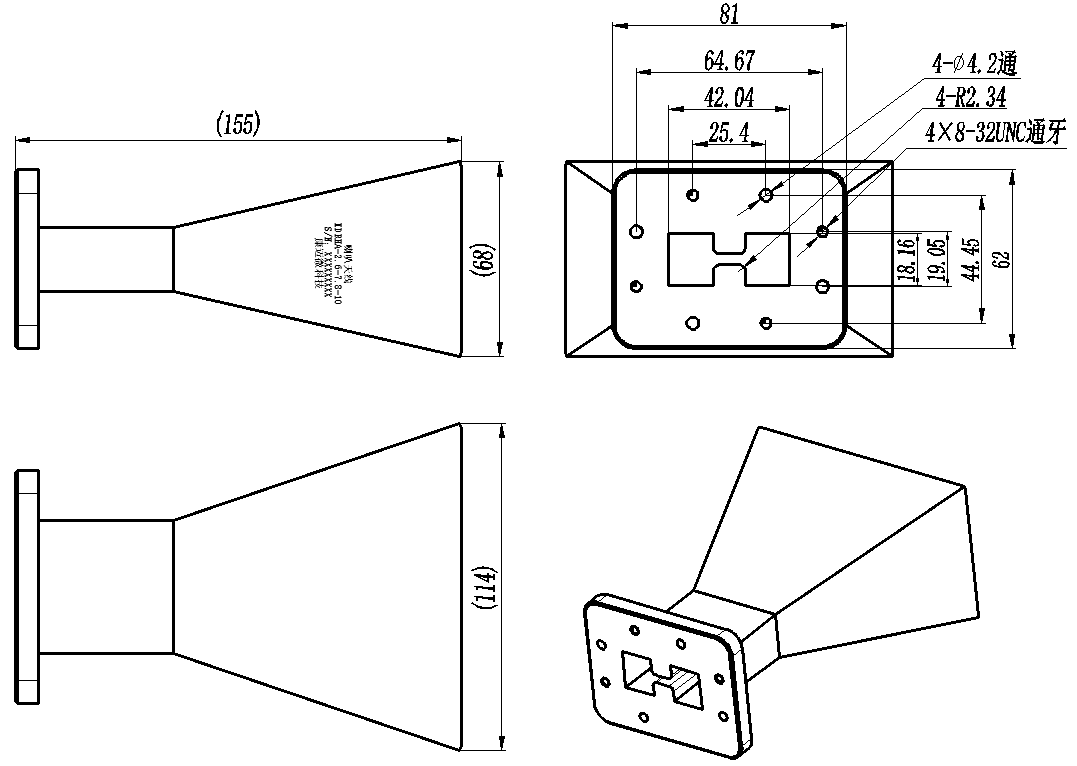

| Outline size | 155*114*68mm |
| Estimated weight | 400g |
| surface treatment | Sea gray orange pattern |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |
