It has the characteristics of wide bandwidth, low sidelobes, and high efficiency.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1 | 10 | GHz | |

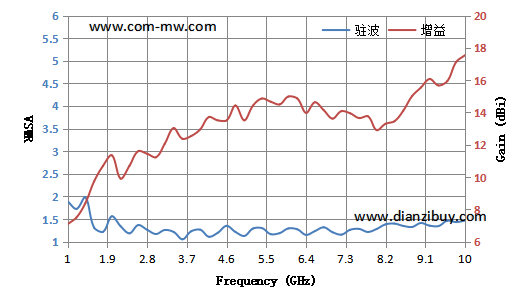

| Gain | 9 | dBi | ||
| VSWR | 2 | |||

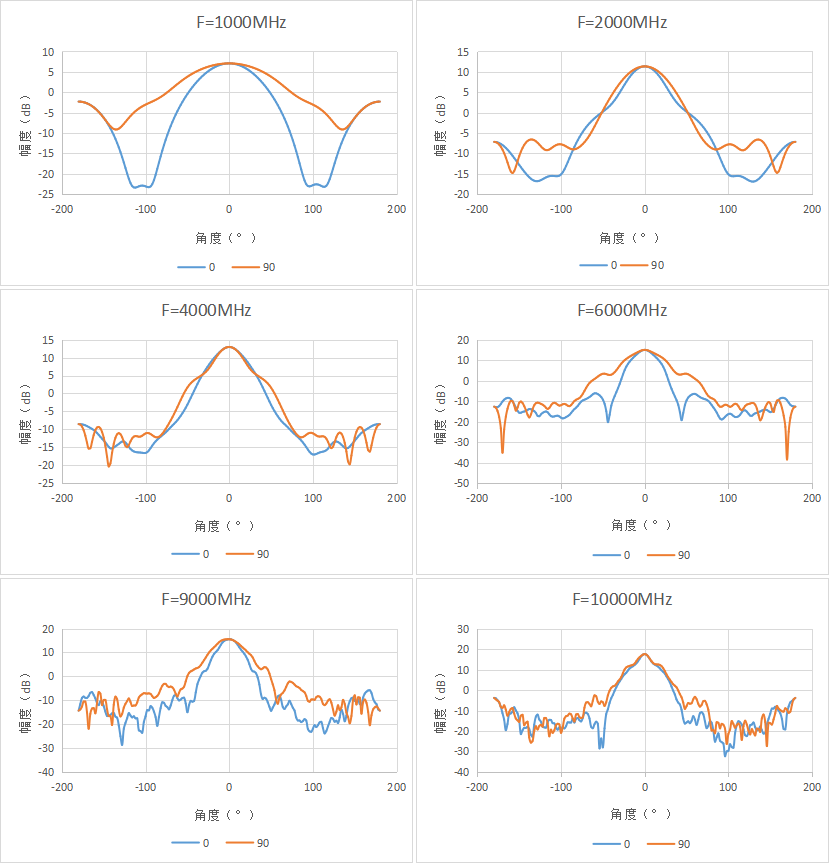

| 3dB Beamwidth | 18 | 96 | ° | |
| Cross polarization isolation | 20 | dB |
| Polarization | Linear Pol. |
| Power Capacity | 50W Design assurance |
| Connector | N-K |

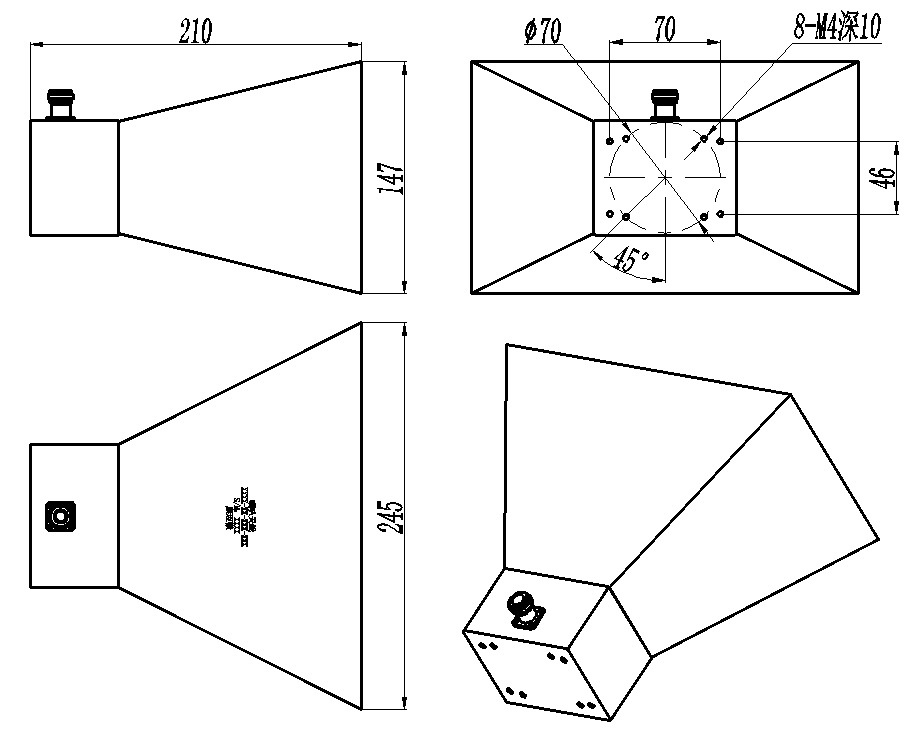

| Outline size | 210*245*147mm |
| Estimated weight | 1.0Kg |
| surface treatment | Sea gray orange pattern |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -45~+75℃ Design assurance |
