Frequency2~43GHz, Gain2dBi, Vertical polarization, 20W, 2.92-K
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

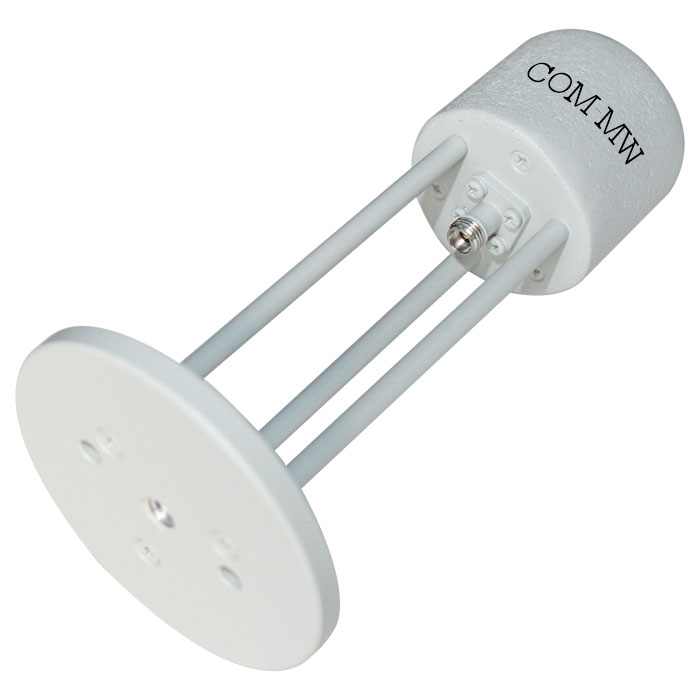

The conical antenna belongs to the ultra wideband omnidirectional antenna, which has the characteristics of light weight and easy installation and installation.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 43 | GHz |
| Gain | 2 | dBi | ||

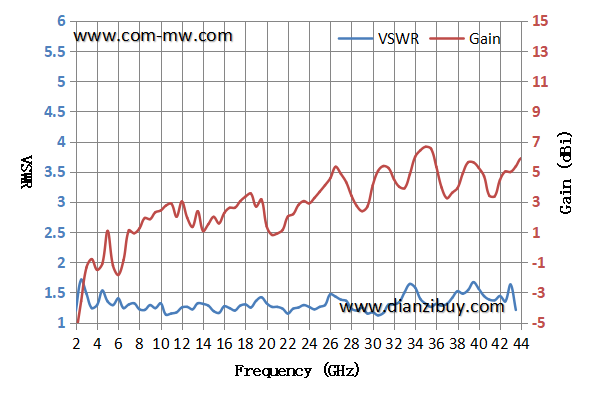

| VSWR | 2 |

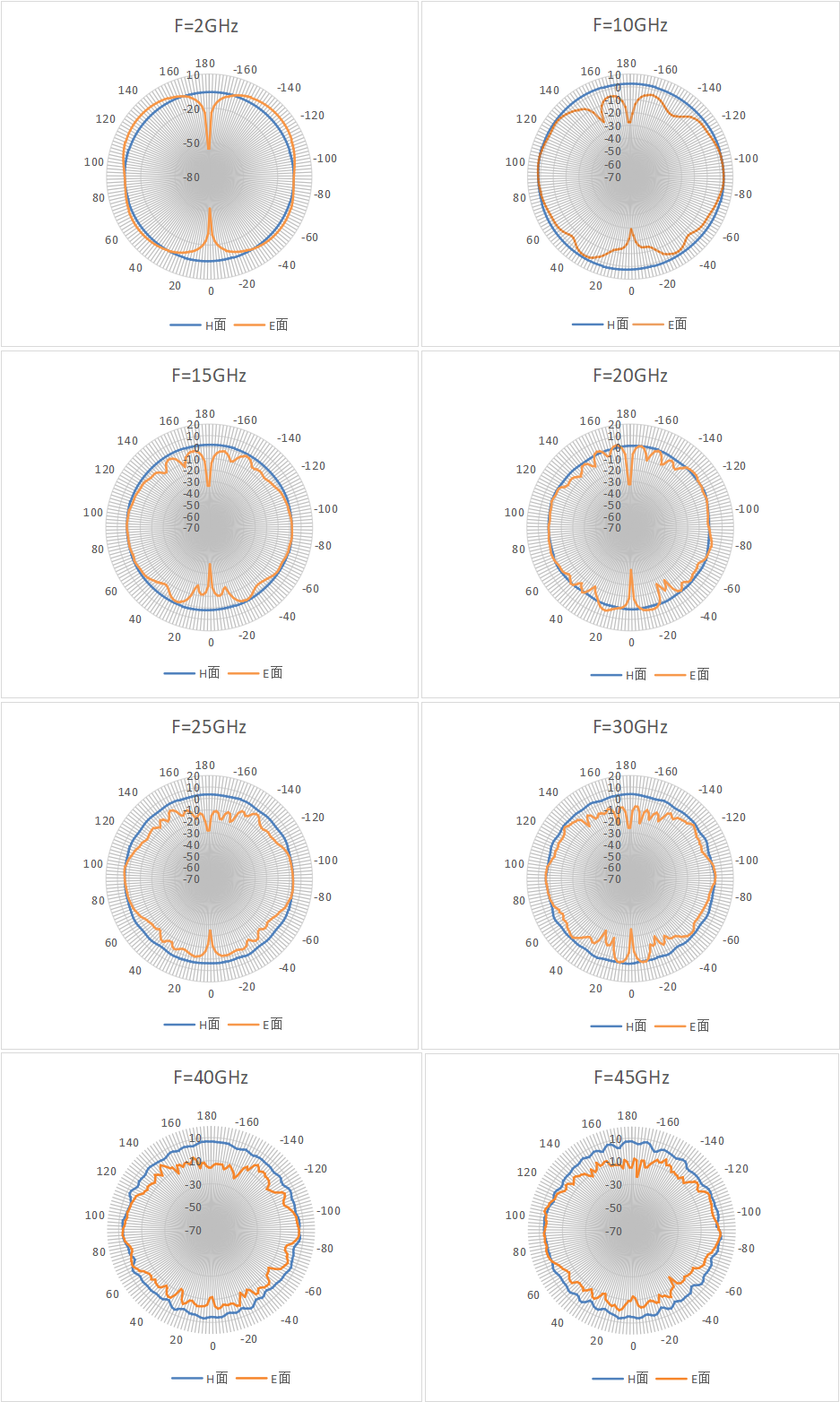

| Polarization | Vertical polarization |
| Power Capacity | 20W Design assurance |
| Connector | 2.92-K |
| Connector material | Housing 304 stainless steel |

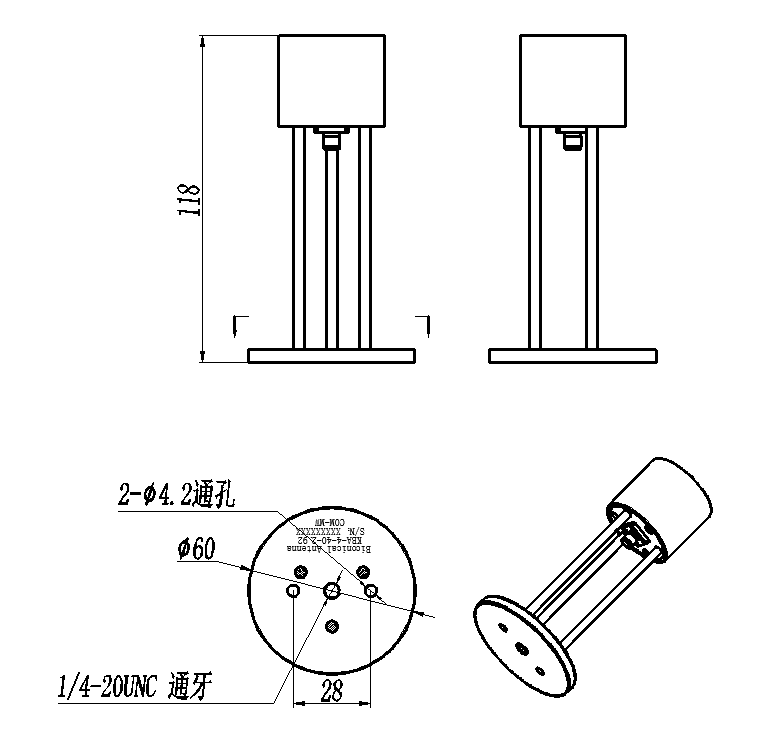

| Outline size | 118*60*60mm |
| Estimated weight | 90g |
| surface treatment | Gray |
| Operation Temp. | -25~+55℃ Design assurance |
| Storage Temp. | -40~+75℃ Design assurance |
