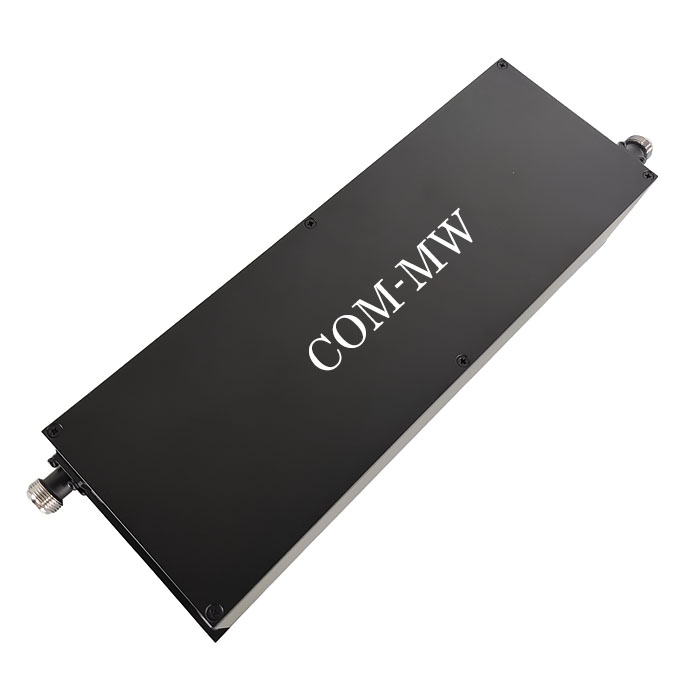

Stopband F3300~3395MHz, ≥60dB, PassbandDC~3290MHz, 3400~6000MHz, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|
| Stopband F | 3300 | ~ | 3395 | MHz | |
| Stopband Rej. | ≥ | 60 | dB | ||
| Passband | DC | ~ | 3290 | MHz | |
| Passband | 3400 | ~ | 6000 | MHz | |
| Passband IL | 5.5 | dB | |||
| Passband VSWR | 1.6 |
| Connector | N -F |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 30W Design assurance |
| IM3 | -140dBc@设计保证 |
| Operation Temp. | +10~+25℃设计保证 |
