Frequency4.64~7.05GHz, Power4000W, Rect waveguider, BJ58, BJ58
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 4.64 | ~ | 7.05 | GHz |
| IL | 0.15 | dB | ||
| VSWR | 1.2 |
| Power | 4000W Design assurance |
| Waveguide model | Rect waveguider |

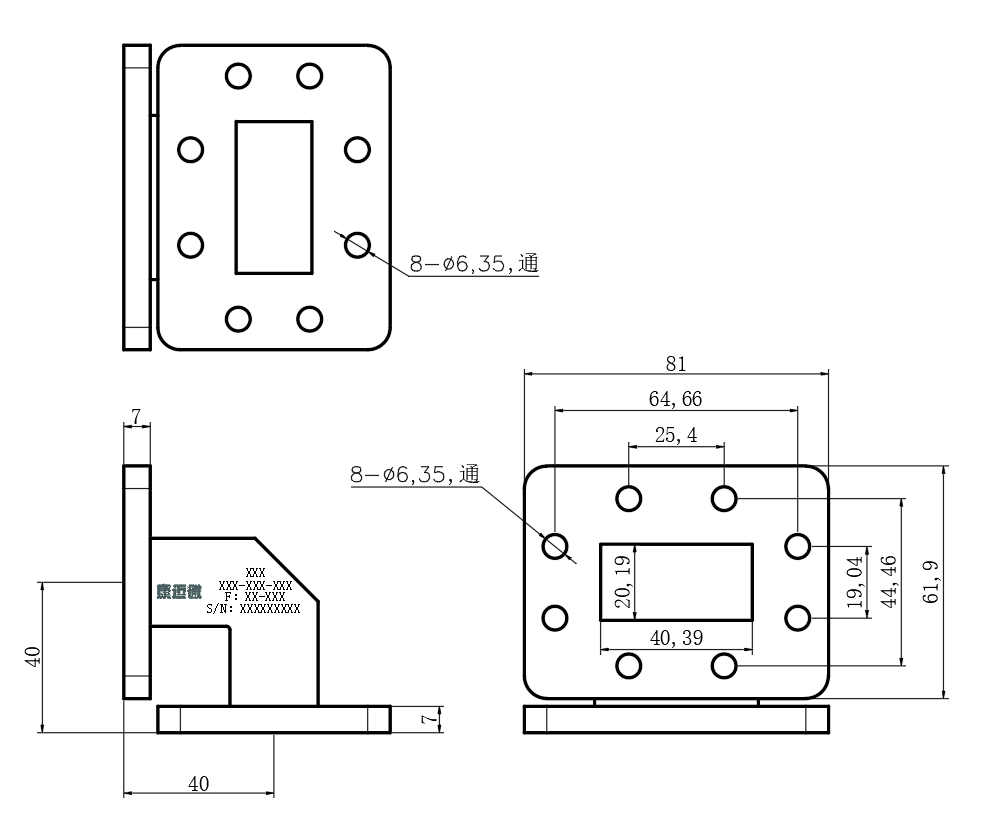

| Waveguide shape | Curved waveguide |
| Connector 1 | BJ58 |
| Connector 2 | BJ58 |
| Flange model | FDP58 |
| Surface | Black baking paint |
| Product shell material | Aluminum |
| Work Temp. | -40~+85℃ Design assurance |

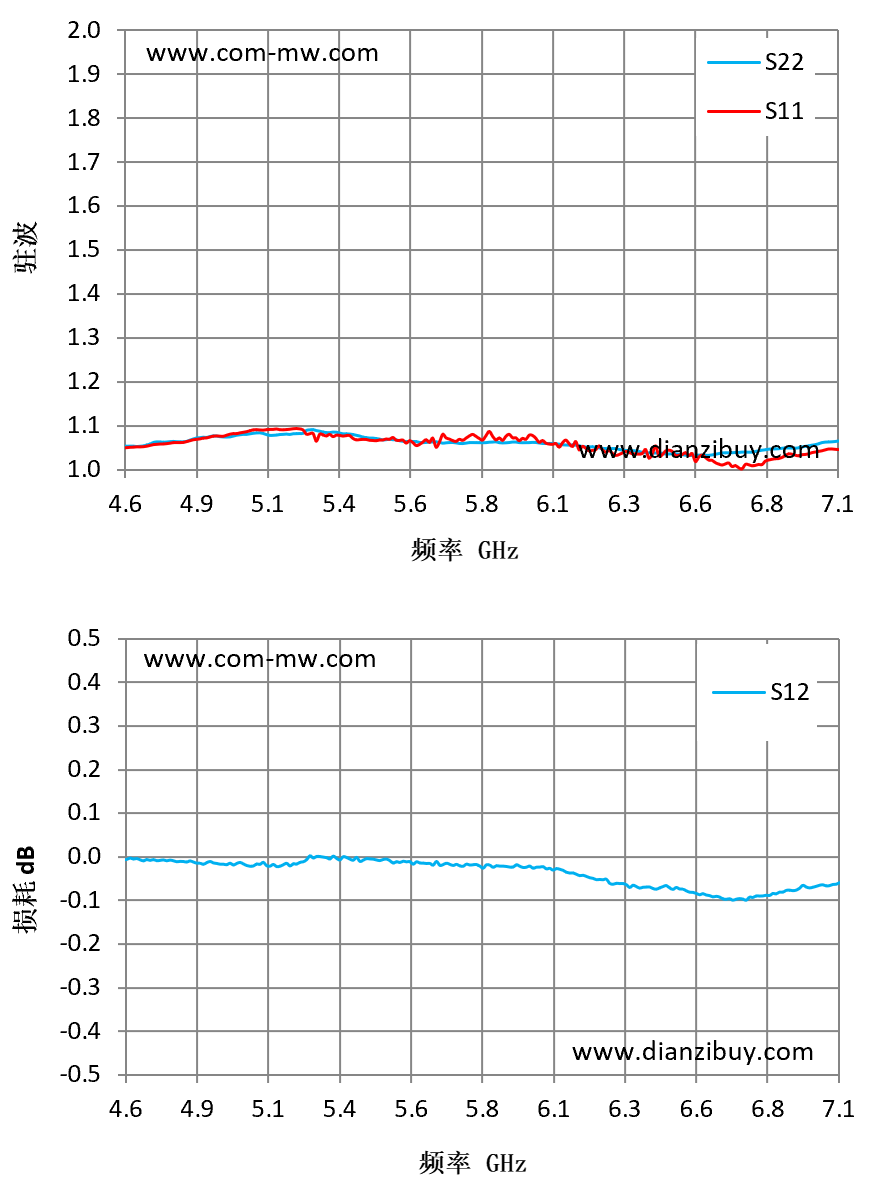

| Frequency(GHz) | S22 VSWR | S11 VSWR | S12 IL dB |
|---|---|---|---|
| 4.64 | 1.05 | 1.05 | -0.01 |
| 4.81 | 1.06 | 1.06 | -0.01 |
| 4.98 | 1.08 | 1.08 | -0.02 |
| 5.16 | 1.08 | 1.09 | -0.02 |
| 5.33 | 1.09 | 1.08 | |
| 5.5 | 1.07 | 1.07 | -0.01 |
| 5.67 | 1.06 | 1.06 | -0.01 |
| 5.85 | 1.06 | 1.07 | -0.03 |
| 6.02 | 1.06 | 1.08 | -0.03 |
| 6.19 | 1.05 | 1.05 | -0.04 |
| 6.36 | 1.04 | 1.04 | -0.07 |
| 6.53 | 1.03 | 1.03 | -0.07 |
| 6.71 | 1.04 | 1.01 | -0.1 |
| 6.88 | 1.05 | 1.03 | -0.08 |
| 7.05 | 1.06 | 1.05 | -0.06 |
