Frequency26.5~40GHz, Power Capacity200W, Rect waveguider, BJ320 or WR28, BJ320 or WR28
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 26.5 | ~ | 40 | GHz |
| IL | 0.3 | dB | ||
| VSWR | 1.07 |
| Power Capacity | 200W Design assurance |
| Waveguide model | Rect waveguider |

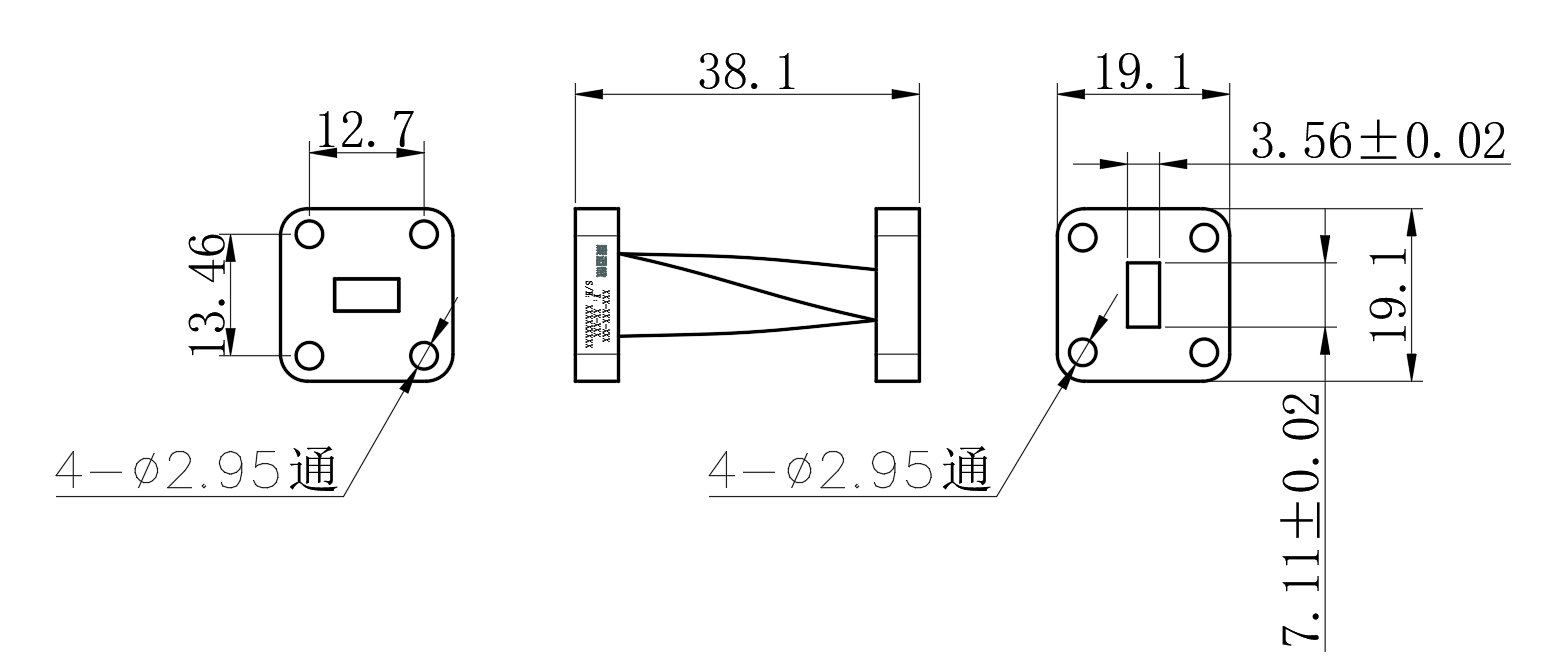

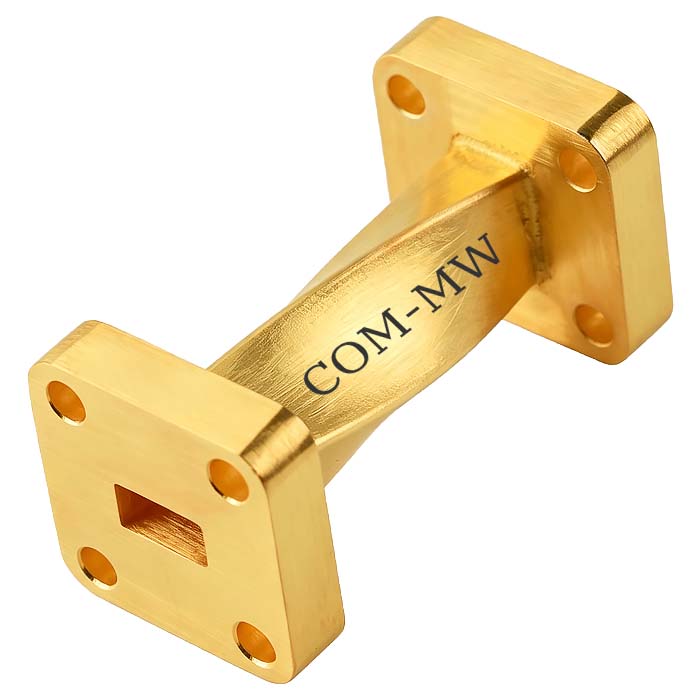

| Waveguide shape | Twisted waveguide |
| Connector 1 | BJ320 or WR28 |
| Connector 2 | BJ320 or WR28 |
| Flange model | FBP320 |
| Surface | Gold-plating |
| Product shell material | Copper |
| Operation Temp. | -40~+70℃ Design assurance |

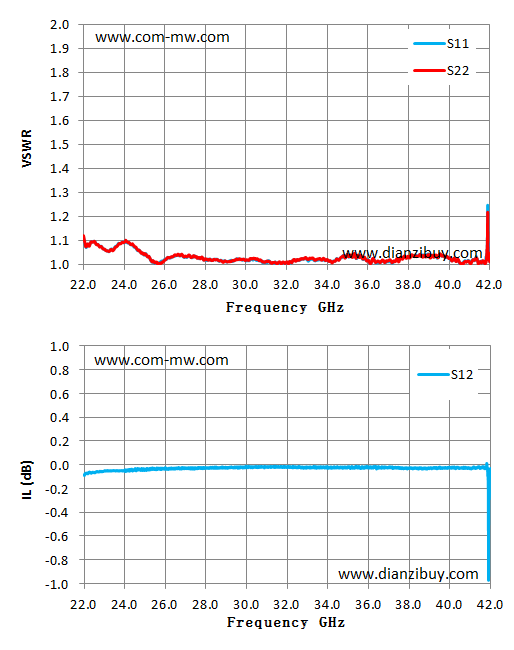

| Frequency GHz | S11 VSWR | S22 VSWR | S12 IL (dB) |
|---|---|---|---|
