Frequency 11.9~18GHz, Power Capacity W, Rect waveguider, BJ140 or WR62, BJ140 or WR62
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
| Frequency | 11.9 | ~ | 18 | GHz |
| IL | 0.15 | dB | ||
| VSWR | 1.08 |
| Power Capacity | W (Design assurance) |
| Waveguide model | Rect waveguider |
| Connector 1 | BJ140 or WR62 |
| Connector 2 | BJ140 or WR62 |

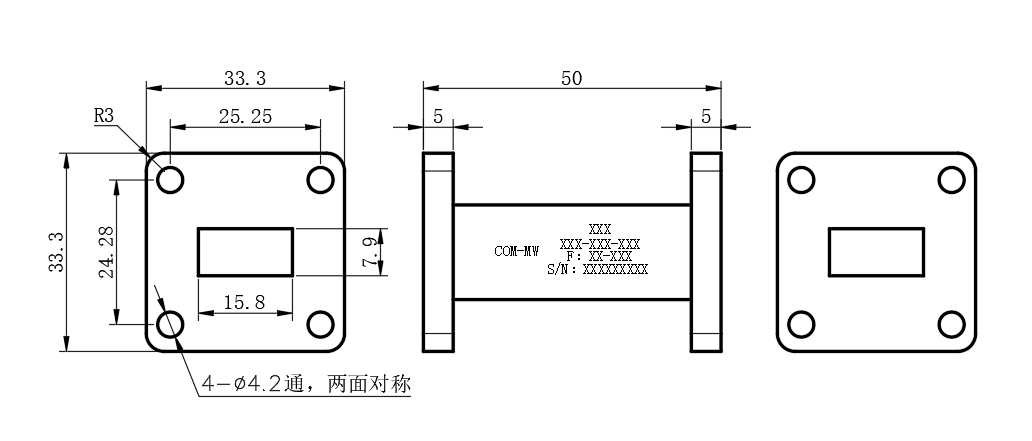

| Flange model | FBP140 |
| Surface | Black baking paint |
| Product shell material | Aluminum |
| Operation Temp. | -40~+70℃ Design assurance |
| ROHS | Compliant Available |
