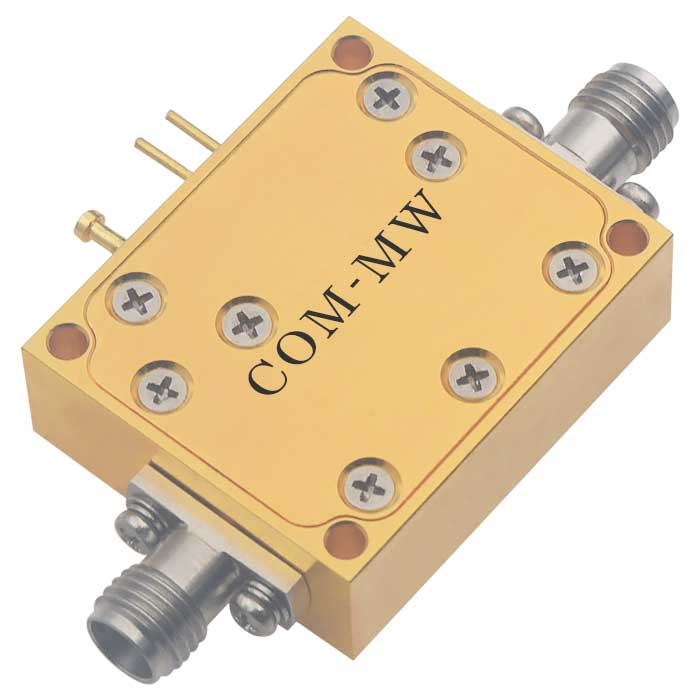

10~40GHz, Attenuation range8~40dB, 0.1W, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 10 | ~ | 40 | GHz |
| Attenuation range | 8 | ~ | 40 | dB |
| VSWR | 4.2 | |||
| Control Voltage Range | -2 | ~ | 0 | V |
| Power Capacity | 0.1W Design assurance |
| Impedance | 50Ω |
| Connector | 2.92 |
| Connector material | Stainless steel |
| Surface | Gold-plating |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -65~+105℃ Design assurance |
| Other | 当控制电压VC1=-2V，VC2=-2V时衰减量最小，控制电压VC1=0V,VC2=0V时，衰减量最大，设置控制电压时需要先设置VC1，只有当VC1设置为0V时，才能设置VC2的电压 |

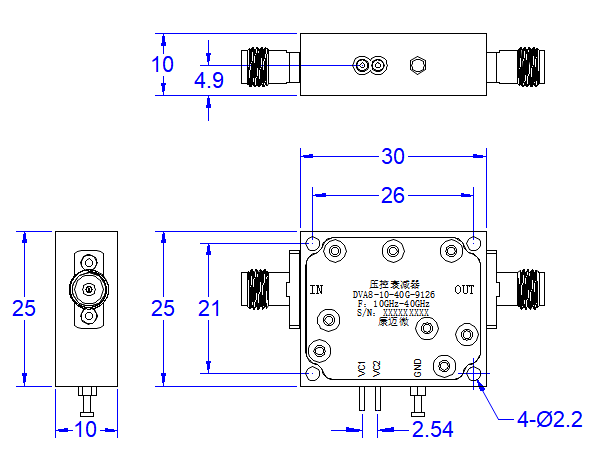

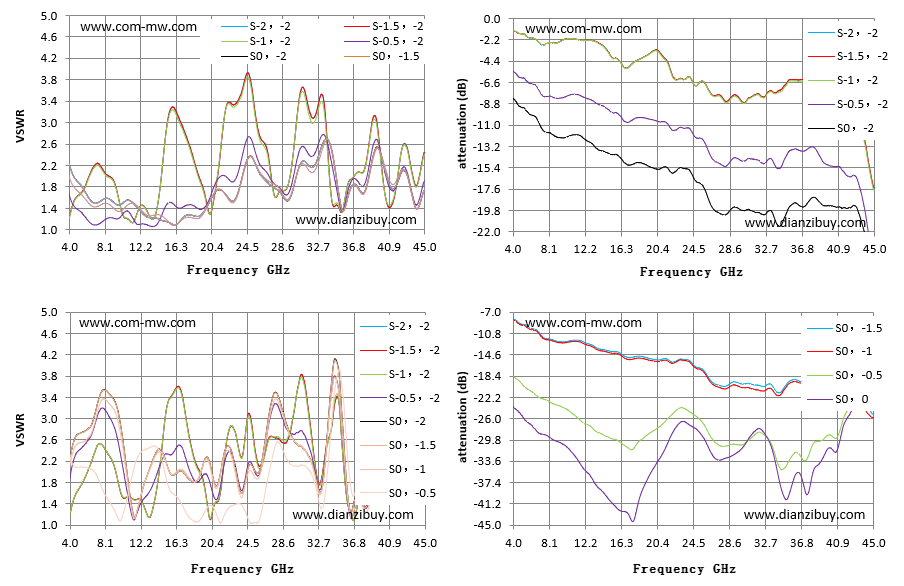

| Frequency GHz | S-2，-2 驻波 | S-0.5，-2 驻波 | S0，-0.5 驻波 | S-2，-2 衰减 dB | S-0.5，-2 衰减 dB | S0，-1 衰减 dB | S0，-0.5 衰减 dB | S0，0 衰减 dB |
|---|---|---|---|---|---|---|---|---|
| 4.00 | 1.26 | 1.62 | 1.96 | -1.22 | -5.47 | -8.35 | -18.5 | -23.9 |
| 6.93 | 2.21 | 1.09 | 1.43 | -2.37 | -7.32 | -10.7 | -22.2 | -28.6 |
| 9.86 | 1.43 | 1.24 | 1.35 | -2.10 | -8.14 | -12.4 | -24.1 | -30.7 |
| 12.79 | 1.39 | 1.10 | 1.28 | -2.19 | -8.38 | -12.9 | -27.4 | -36.3 |
| 15.71 | 3.27 | 1.51 | 1.10 | -4.03 | -9.71 | -14.2 | -29.7 | -41.8 |
| 18.64 | 2.13 | 1.41 | 1.21 | -4.04 | -10.2 | -15.1 | -29.6 | -38.9 |
| 21.57 | 2.70 | 2.01 | 1.74 | -4.44 | -10.8 | -15.6 | -26.0 | -30.4 |
| 24.50 | 3.93 | 2.70 | 2.28 | -6.66 | -11.9 | -16.5 | -25.2 | -27.5 |
| 27.43 | 1.82 | 1.89 | 1.87 | -7.83 | -14.9 | -20.3 | -30.7 | -33.4 |
| 30.36 | 3.27 | 2.39 | 2.11 | -8.59 | -14.6 | -20.4 | -30.4 | -30.6 |
| 33.29 | 3.47 | 2.78 | 2.55 | -7.41 | -14.4 | -20.5 | -30.2 | -30.6 |
| 36.21 | 1.89 | 1.78 | 1.65 | -6.28 | -13.5 | -19.3 | -32.0 | -35.8 |
| 39.14 | 3.12 | 2.62 | 2.39 | -8.48 | -14.7 | -19.7 | -29.9 | -33.3 |
| 42.07 | 2.21 | 1.99 | 2.03 | -9.78 | -16.2 | -21.0 | -24.5 | -25.7 |
| 45.00 | 2.45 | 1.91 | 1.74 | -17.55 | -26.0 | -25.7 | -22.0 | -21.9 |
