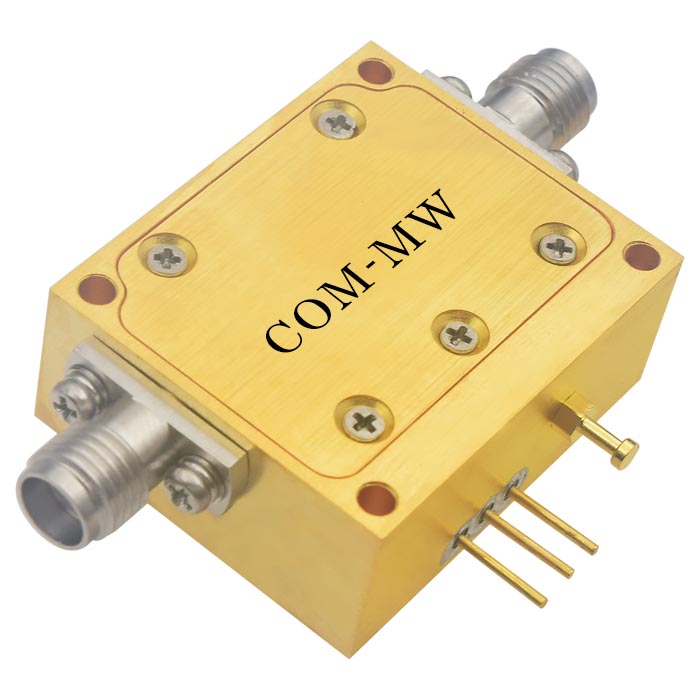

5~3000MHz, Attenuation range2~35dB, 0.3W, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 5 | ~ | 3000 | MHz |
| Attenuation range | 2 | ~ | 35 | dB |
| VSWR | 1.8 | 2 | ||
| Control Voltage Range | 0 | ~ | 5 | V |
| Power Capacity | 0.3W Design assurance |
|---|---|
| Impedance | 50Ω |
| Response time | 10us |
| Connector | SMA |
| Connector material | Stainless steel |
| Surface | Gold-plating |
| Working voltage | +5V |
| Working current | 10mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -65~+105℃ Design assurance |
| Other | When MODE=+5V, the attenuation is minimized when the control voltage VC=0V, and the attenuation is maximized when the control voltage VC=+5V. When MODE=0V, the attenuation is maximized when the control voltage VC=0V, and the attenuation is minimized when the control voltage VC=5V. |

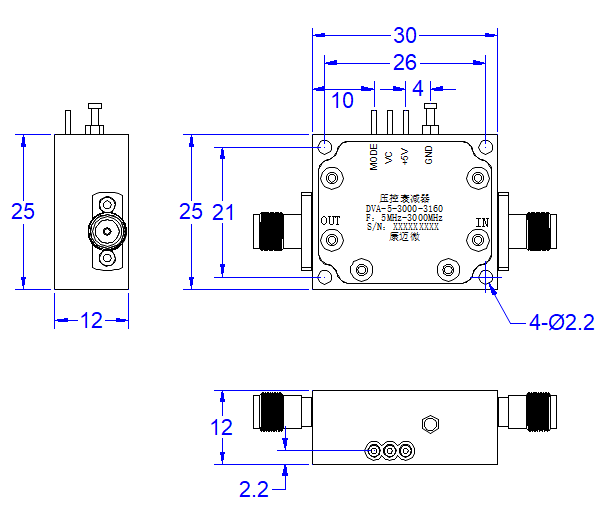

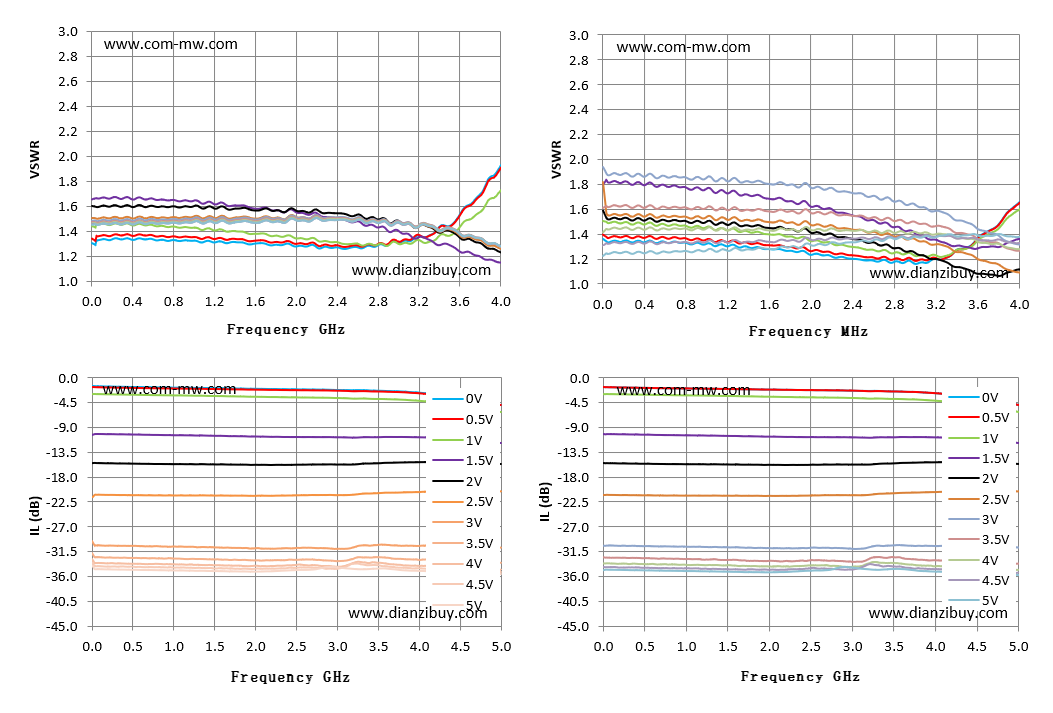

| Frequency GHz | 0V IL dB | 1V IL dB | 2V IL dB | 3V IL dB | 4V IL dB | 5V IL dB |
|---|---|---|---|---|---|---|
