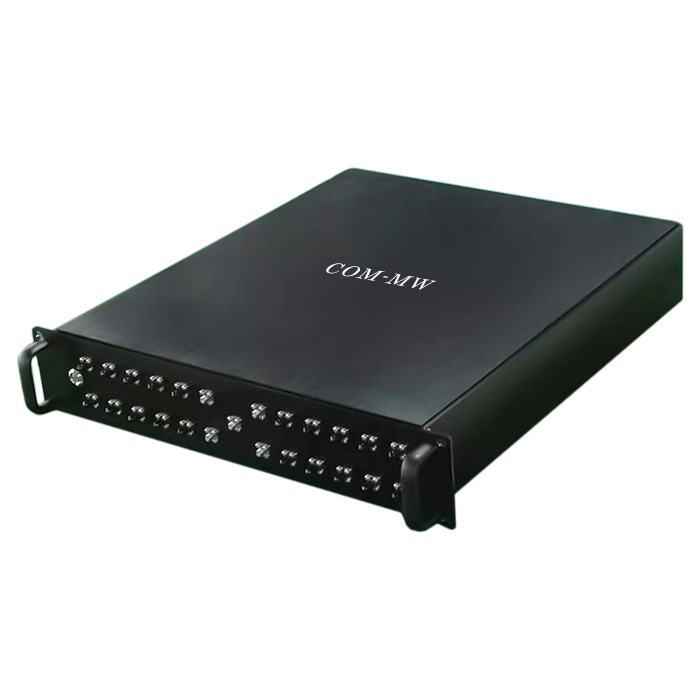

6~18GHz, 8-way, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 6 | ~ | 18 | GHz |
| Receive Gain | 20 | dB | ||
| Transmit gain | 40 | dB | ||
| Thoroughfare ISO | 60 | dB | ||
| VSWR | 2 |
| 通道路数 | 8-way |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Black |
| Working voltage | +220V |
| Operation Temp. | -30~+70℃ Design assurance |
| Quality Grade | Industrial grade |
| 1 | 1 host |
| 2 | 1 AC power cord |
| 3 | 1 set of test report or user /uploads/kmw-media/dtr8-6-18g-4065/manual/DTR8-6-18G-4065@2025-06-15-09-02-14.pdf |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
