DC~40GHz, SP6T, TTL Control, Absorption, 15ms, 2.92, 24V, 2 million Cycles, Latching, Port indication
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

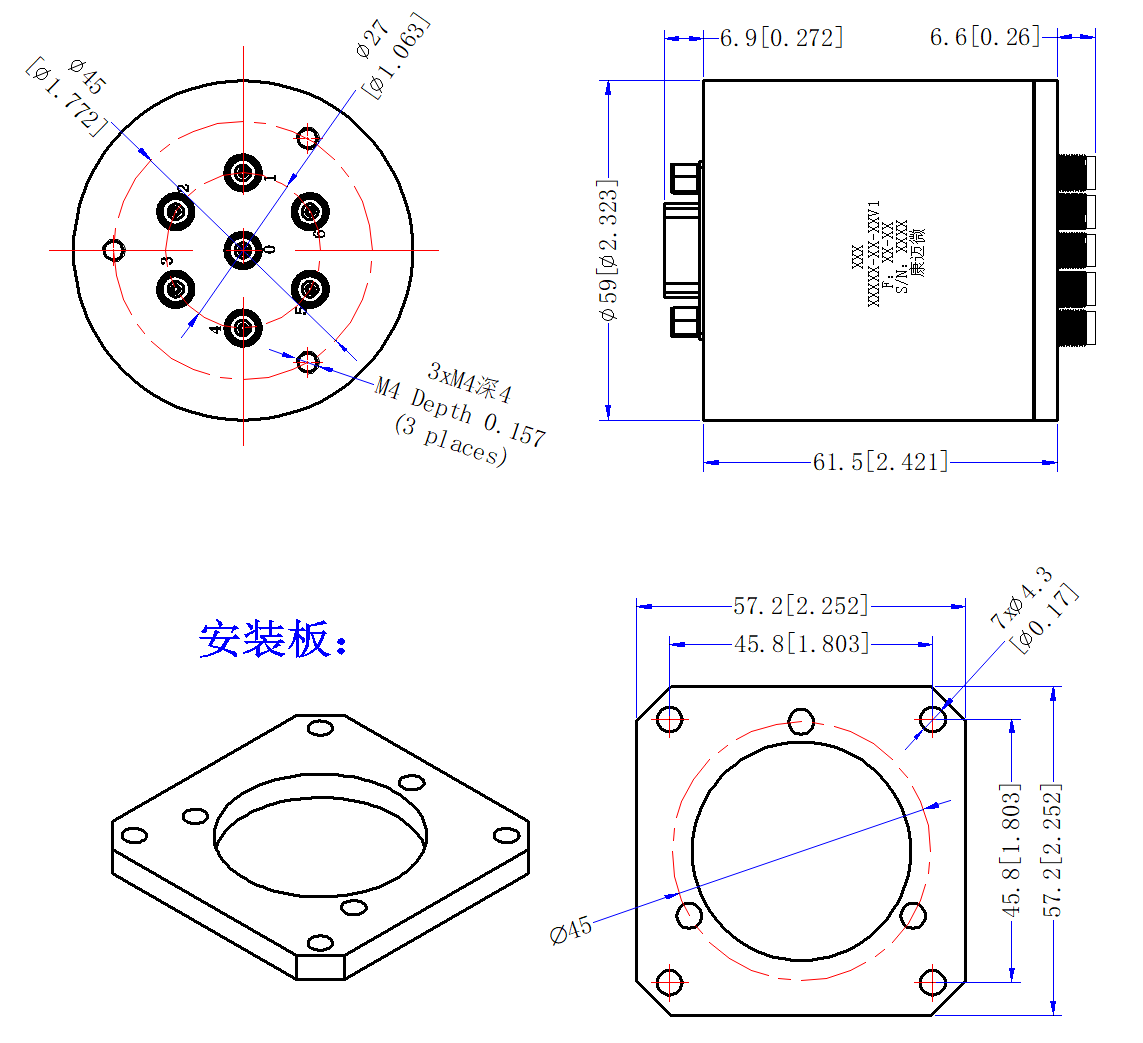

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 40 | GHz |
| IL | 0.3 | dB@6G | ||
| IL | 0.5 | dB@18G | ||
| IL | 0.9 | dB@40G | ||
| Isolation | 70 | dB@6G | ||
| Isolation | 55 | dB@18G | ||
| Isolation | 50 | dB@40G | ||
| VSWR | 1.3 | @6G | ||
| VSWR | 1.5 | @18G | ||
| VSWR | 1.9 | @40G | ||
| Power Capacity | 40 | W@6G | ||
| Power Capacity | 25 | W@18G | ||
| Power Capacity | 5 | W@40G |
| Switch way | SP6T |
| Control | TTL Control |
| Switching characteristic | Mechanical absorption switch |
| Switch time | 15ms |
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +24V |
| Working current | 200mA |
| Operation Temp. | -25~+65℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Switching Lifetime | 2 million Cycles |
| Control port | D-SUB26 Male |
| Switching sequence | First disconnect and then close |
| 控制模式 | Latching |
| Pin 1 | TTL high level (3~5V) | RF 0-1 |
|---|---|---|
| Pin 2 | TTL high level (3~5V) | RF 0-2 |
| Pin 3 | TTL high level (3~5V) | RF 0-3 |
| Pin 4 | TTL high level (3~5V) | RF 0-4 |
| Pin 5 | TTL high level (3~5V) | RF 0-5 |
| Pin 6 | TTL high level (3~5V) | RF 0-6 |
| Pin 7 | TTL（RESET） | |
| Pin 8 | +24V | / |
| Pin 9 | GND | / |
| Pin 10 | Port indication | RF 0-1 |
| Pin 11 | Port indication | RF 0-2 |
| Pin 12 | Port indication | RF 0-3 |
| Pin 13 | Port indication | RF 0-4 |
| Pin 14 | Port indication | RF 0-5 |
| Pin 15 | Port indication | RF 0-6 |
| Pin 16 | Port indication | Common port |
| Pin 17~26 | Not used | / |
