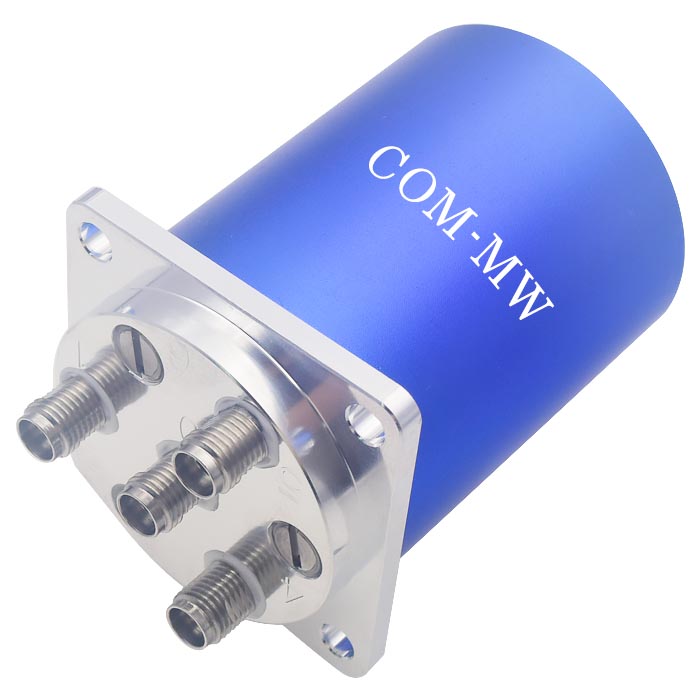

DC~40GHz, SP3T, Reflective, 15ms, 2.92-K, 24V, 2 million Cycles
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 40 | GHz |
| IL | 0.3 | dB@6G | ||
| IL | 0.5 | dB@18G | ||
| IL | 0.9 | dB@40G | ||
| Isolation | 70 | dB@6G | ||
| Isolation | 60 | dB@18G | ||
| Isolation | 50 | dB@40G | ||
| VSWR | 1.3 | @6G | ||
| VSWR | 1.5 | @18G | ||
| VSWR | 1.9 | @40G | ||
| Power Capacity | 40 | W@6G | ||
| Power Capacity | 25 | W@18G | ||
| Power Capacity | 5 | W@40G |
| Switch way | SP3T |
|---|---|
| Switching characteristic | Mechanical reflective switch |
| Switch time | 15ms |
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +24V |
| Working current | 150mA |
| Operation Temp. | -25~+65℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Switching Lifetime | 2 million Cycles |
| Control port | D-SUB15 Male |

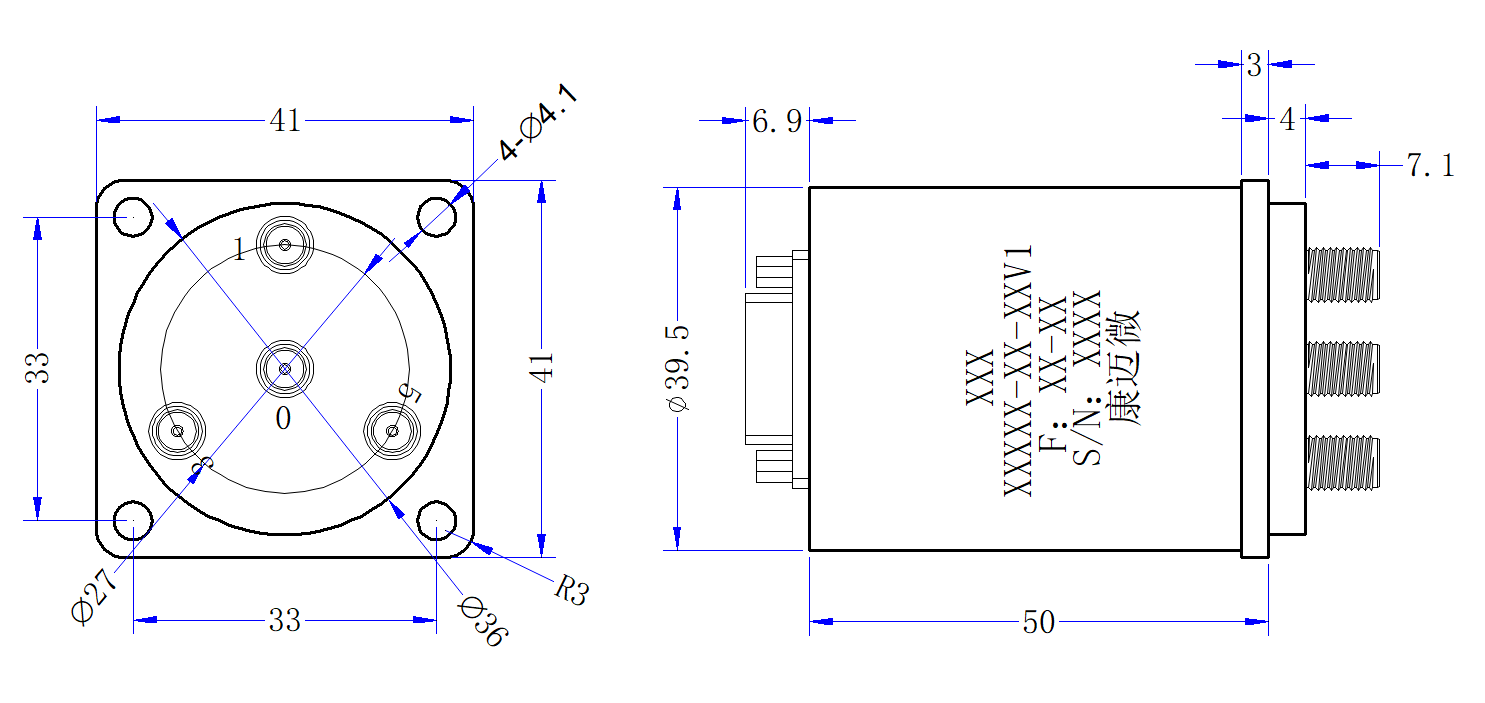

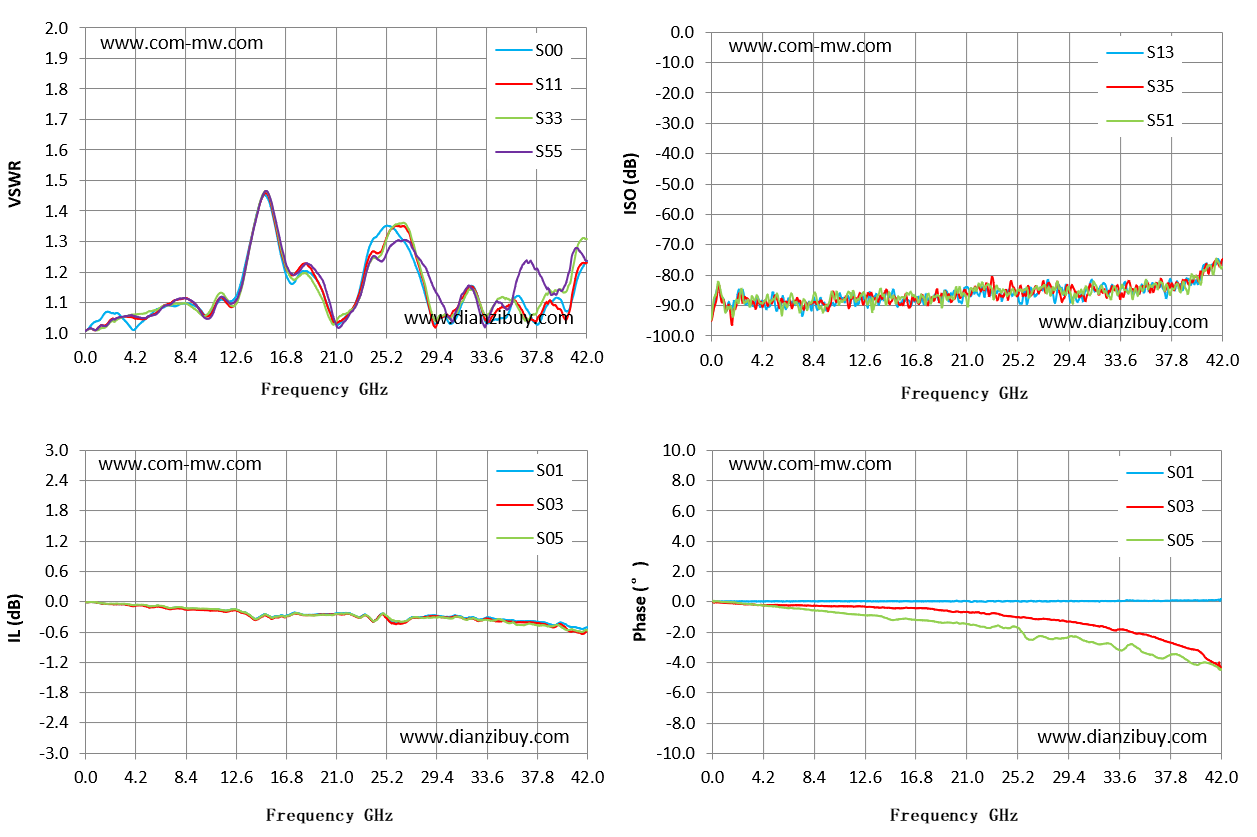

| Frequency GHz | S00 VSWR | S01 IL dB | S13 ISO | S03 Phase |
|---|---|---|---|---|
| 0.01 | 1.01 | -0.01 | -93.69 | |
| 3.01 | 1.05 | -0.05 | -88.91 | -0.15 |
| 6.01 | 1.08 | -0.08 | -89.02 | -0.22 |
| 9.01 | 1.09 | -0.14 | -87.47 | -0.25 |
| 12.01 | 1.1 | -0.17 | -89 | -0.29 |
| 15.01 | 1.45 | -0.25 | -84.98 | -0.42 |
| 18.01 | 1.2 | -0.25 | -87.97 | -0.45 |
| 21.01 | 1.03 | -0.24 | -83.79 | -0.65 |
| 24 | 1.3 | -0.39 | -86.71 | -0.89 |
| 27 | 1.28 | -0.35 | -84.43 | -1.14 |
| 30 | 1.05 | -0.3 | -88.23 | -1.35 |
| 33 | 1.1 | -0.36 | -83.68 | -1.84 |
| 36 | 1.12 | -0.39 | -84.86 | -2.22 |
| 39 | 1.1 | -0.47 | -81.11 | -3 |
| 42 | 1.23 | -0.52 | -75.34 | -4.34 |
| Pin 1 | TTL high level (3~5V) | RF 0-1 |
|---|---|---|
| Pin 3 | TTL high level (3~5V) | RF 0-3 |
| Pin 5 | TTL high level (3~5V) | RF 0-5 |
| Pin 7 | +24V | / |
| Pin 8 | GND | / |
| Pin 2,4,6,9~15 | Not used | / |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
| 3 | Switching sequence: disconnect first and then close. |
