DC~18GHz, SP3T, TTL Control, Reflective, 15ms, N, 12V, 2 million Cycles
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 18 | GHz |
| IL | 0.7 | dB@18G | ||
| IL | 0.5 | dB@12.4G | ||
| IL | 0.3 | dB@5G | ||
| Isolation | 50 | dB@18G | ||
| Isolation | 60 | dB@12.4G | ||
| Isolation | 70 | dB@5G | ||
| VSWR | 1.7 | @18G | ||
| VSWR | 1.5 | @12.4G | ||
| VSWR | 1.3 | @5G |
| Switch way | SP3T |
|---|---|
| Control | TTL Control |
| Switching characteristic | Mechanical reflective switch |
| Switch time | 15ms |
| Connector | N -F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power Capacity | 350W@5GHz; 250W@12.4GHz; 180W@18GHz设计保证 |
| Working voltage | +12V |
| Working current | 300mA |
| Operation Temp. | -25~+65℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Switching Lifetime | 2 million Cycles |

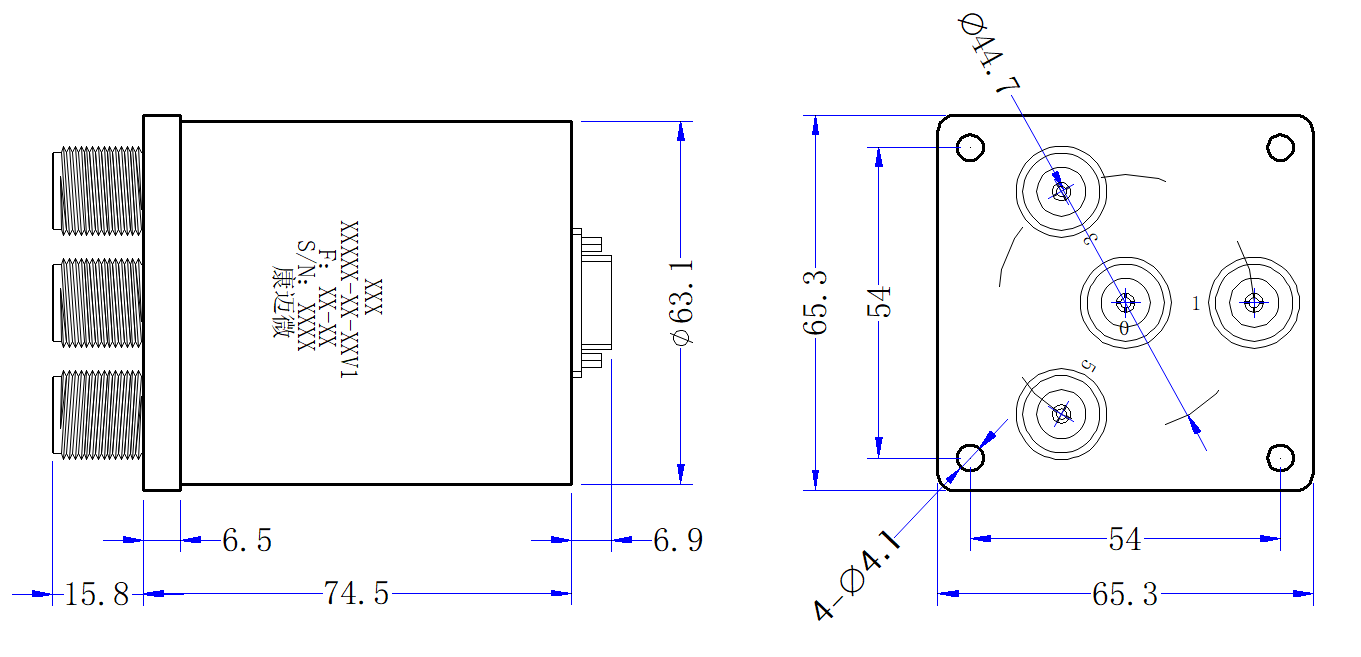

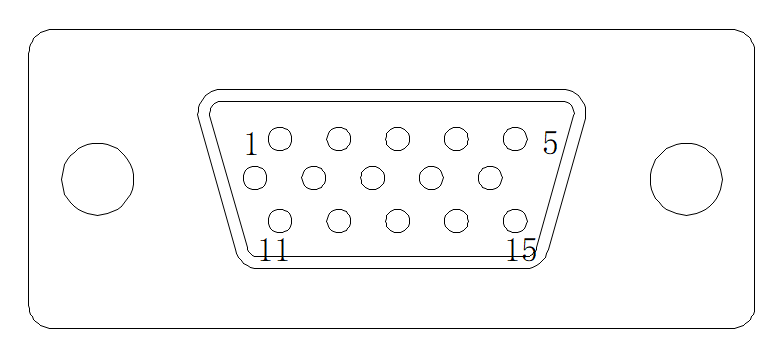

| Control port | D-SUB 15Pin Male |
| Common port | 0 |
|---|---|
| Branching port | 1，3，5 |
| Pin 1 | TTL high level (3~5V) | RF 0-1 |
|---|---|---|
| Pin 3 | TTL high level (3~5V) | RF 0-3 |
| Pin 5 | TTL high level (3~5V) | RF 0-5 |
| Pin 7 | VCD | / |
| Pin 8 | GND | / |
| Pin 2,4,6,9~15 | Not used | / |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | First disconnect and then close |
