DC~18GHz, SP3T, TTL Control, Absorption, 15ms, SMA, 24V, 2 million Cycles, Latching, Port indication
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 18 | GHz |
| IL | 0.3 | dB@6G | ||
| IL | 0.5 | dB@18G | ||
| Isolation | 70 | dB@6G | ||
| Isolation | 50 | dB@18G | ||
| VSWR | 1.3 | @6G | ||
| VSWR | 1.5 | @18G | ||
| Power Capacity | 80 | W@6G | ||
| Power Capacity | 50 | W@18G |
| Switch way | SP3T |
| Control | TTL Control |
| Switching characteristic | Mechanical absorption switch |
| Switch time | 15ms |
| Connector | SMA-K |
| Impedance | 50Ω |
| Working voltage | +24V |
| Working current | 200mA |
| Operation Temp. | -25~+65℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Switching Lifetime | 2 million Cycles |
| Control port | D-SUB26-Male |
| Switching sequence | First disconnect and then close |
| Drive mode | Latching |
| Common port | 0 |
| Branching port | 1，3，5 |

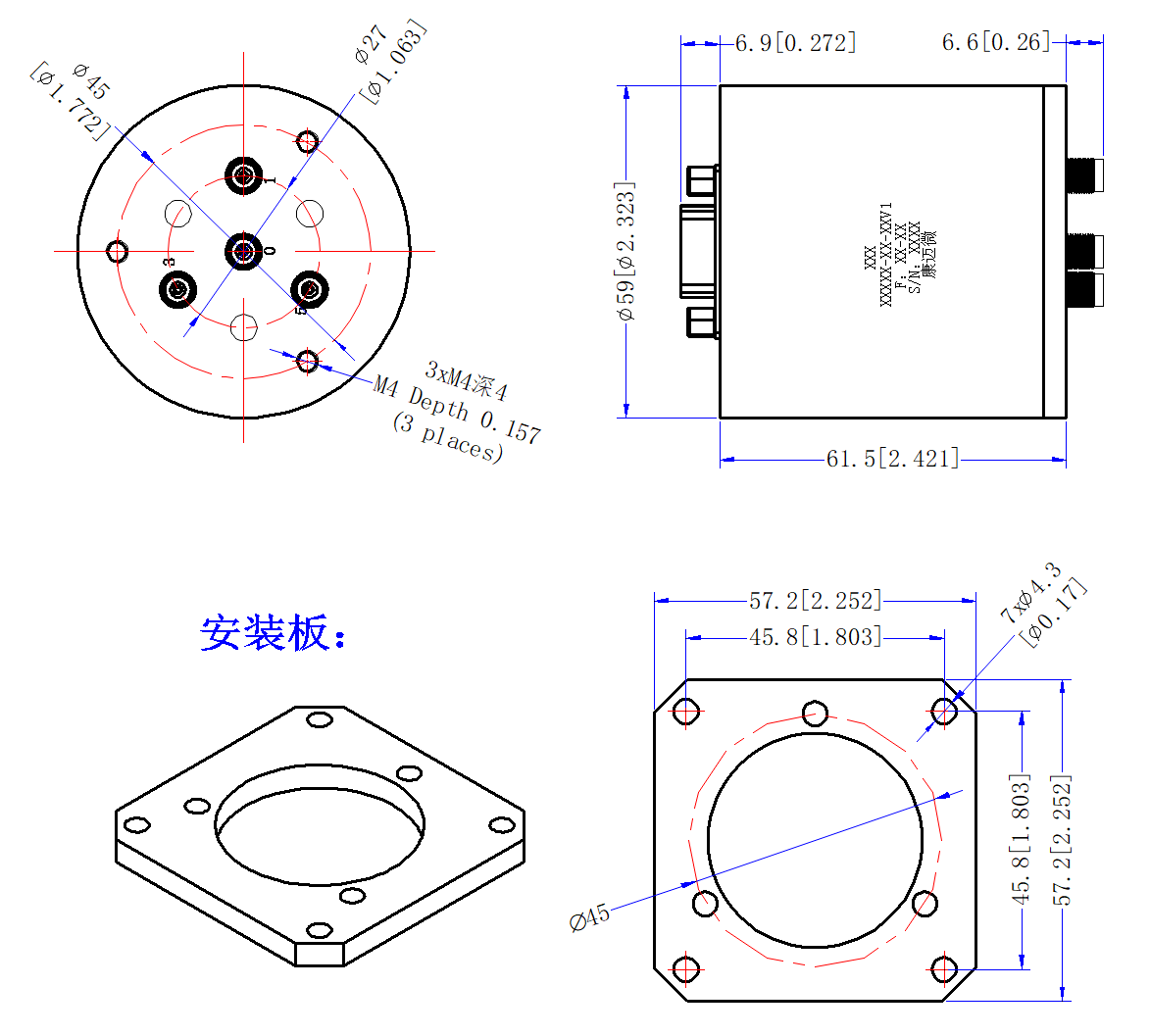

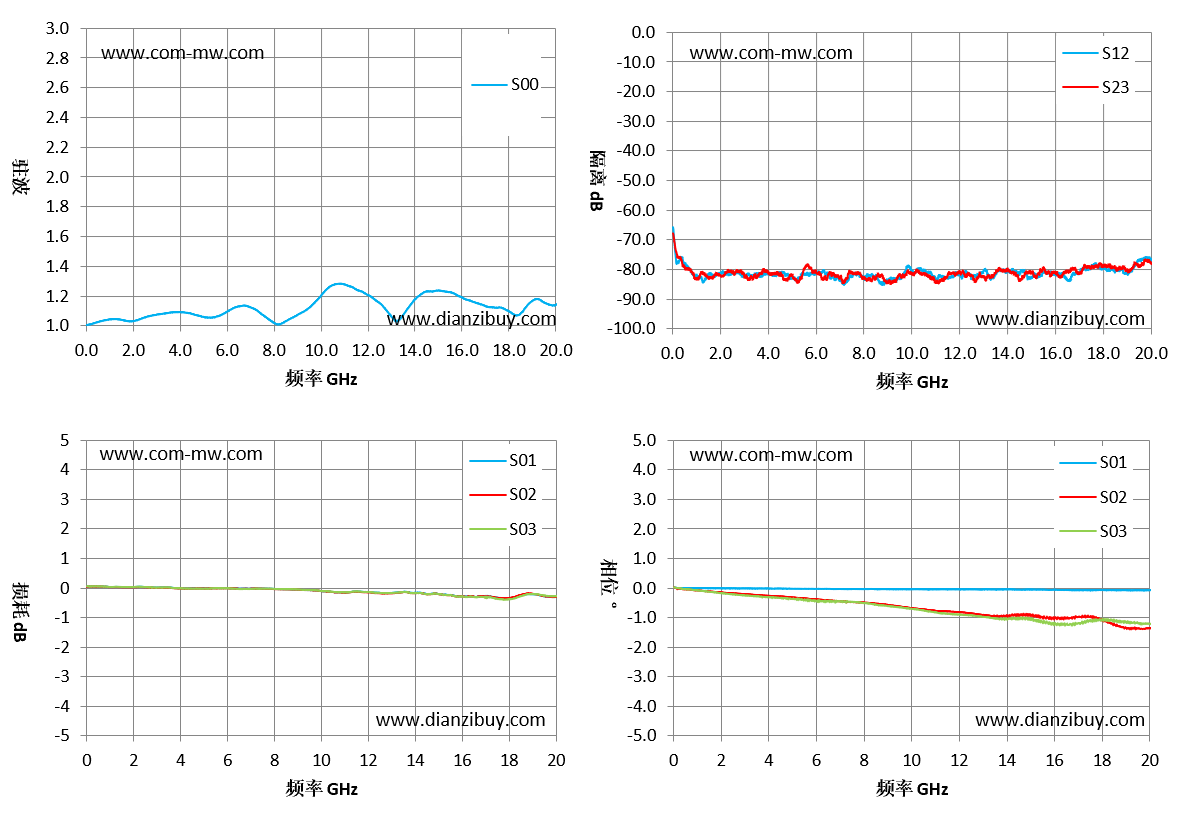

| Frequency(GHz) | S00 VSWR | S01 IL dB | S23 ISO dB | S02 Phase |
|---|---|---|---|---|
| 0.1 | 1.01 | 0.04 | -67.85 | 0.02 |
| 2.86 | 1.07 | 0.01 | -80.83 | -0.2 |
| 4.29 | 1.09 | -0.02 | -81.2 | -0.28 |
| 7.14 | 1.12 | -0.02 | -84.05 | -0.45 |
| 8.57 | 1.04 | -0.04 | -81.77 | -0.53 |
| 10 | 1.2 | -0.11 | -81.48 | -0.68 |
| 12.86 | 1.09 | -0.17 | -81.59 | -0.9 |
| 14.29 | 1.21 | -0.17 | -81.07 | -0.93 |
| 17.14 | 1.13 | -0.3 | -80.14 | -0.97 |
| 18.57 | 1.09 | -0.24 | -80.36 | -1.26 |
| 20 | 1.14 | -0.3 | -77.91 | -1.36 |
| Pin 1 | TTL high level (3~5V) | RF 0-1 |
|---|---|---|
| Pin 3 | TTL high level (3~5V) | RF 0-3 |
| Pin 5 | TTL high level (3~5V) | RF 0-5 |
| Pin 7 | TTL（RESET） | / |
| Pin 8 | +24V | / |
| Pin 9 | GND | / |
| Pin 10 | Port indication | RF 0-1 |
| Pin 12 | Port indication | RF 0-3 |
| Pin 14 | Port indication | RF 0-5 |
| Pin 16 | Port indication | Common port |
| Pin 2,4,6,11,13,17~26 | Not used | / |
