DC~26.5GHz, SPDT, Absorption, 20ms, 2.92, 24V
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

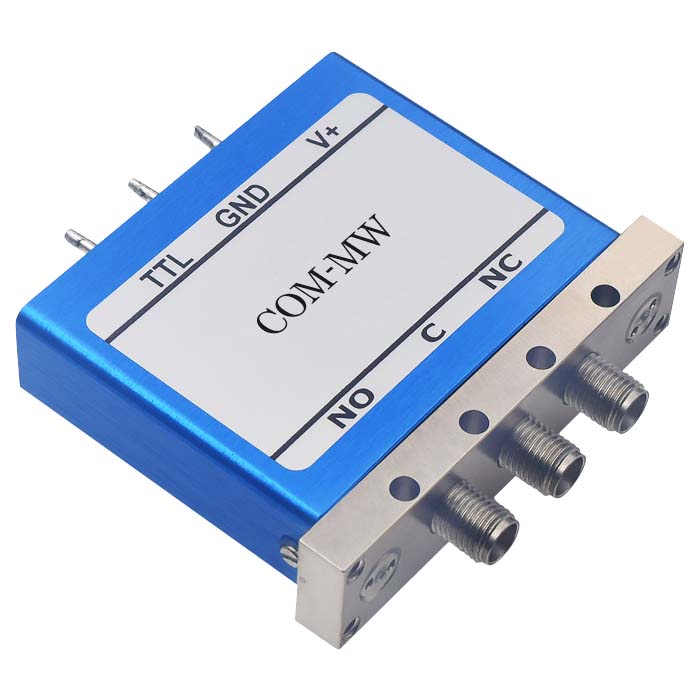

Broadband, high-power, absorption switch.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 26.5 | GHz |
| IL | 0.3@6GHz；0.8@26.5GHz | dB | ||
| Isolation | 70@6GHz；55@26.5GHz | dB | ||
| VSWR | 1.3@6GHz；1.7@26.5GHz |
| Switch way | SPDT |
| Switching characteristic | Mechanical absorption switch |
| Switch time | 20ms |

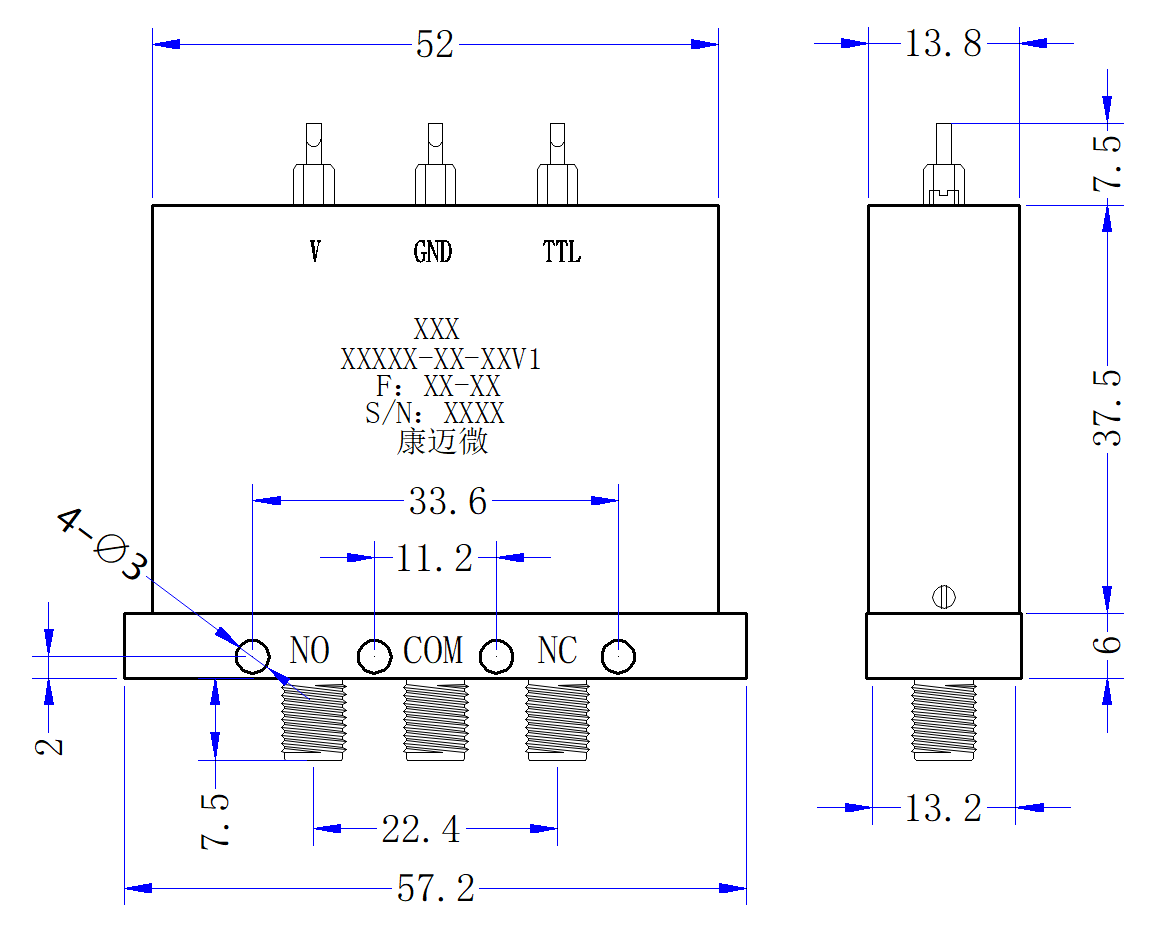

| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power Capacity | 20W@6GHz, 10W@26.5GHz Design assurance |
| Working voltage | +24V |
| Working current | 200mA |
| Operation Temp. | -30~+60℃ Design assurance |
| Quality Grade | Industrial grade |

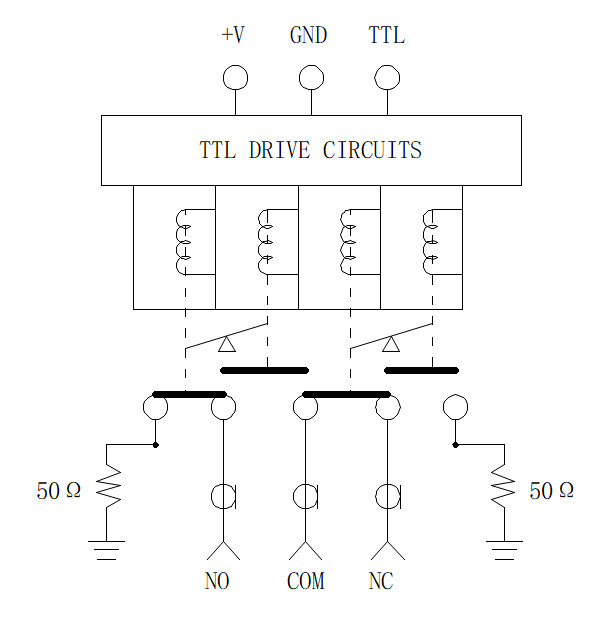

| Other | Switching mode: first disconnect and then close |
| Common port | COM |
| Branching port | NO，NC |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
