DC~18GHz, SP12T, TTL Control, Absorption, 15ms, SMA, 24V, 2 million Cycles
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

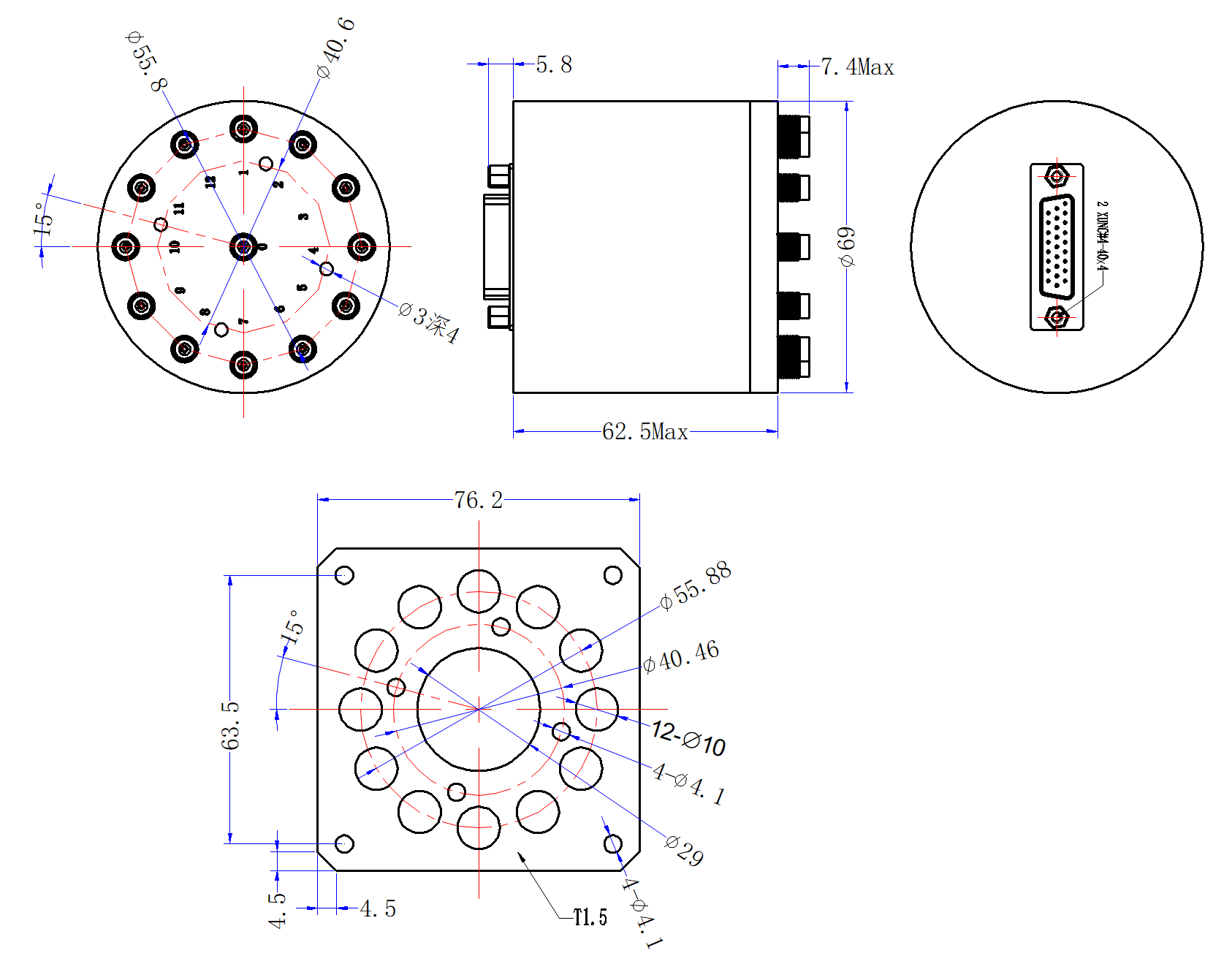

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 18 | GHz |
| IL | 0.3 | dB@6G | ||
| IL | 0.6 | dB@18G | ||
| Isolation | 70 | dB@6G | ||
| Isolation | 50 | dB@18G | ||
| VSWR | 1.3 | @6G | ||
| VSWR | 1.6 | @18G | ||
| Power Capacity | 80 | W@6G | ||
| Power Capacity | 50 | W@18G |
| Switch way | SP12T |
| Control | TTL Control |
| Switching characteristic | Mechanical absorption switch |
| Switch time | 15ms |
| Connector | SMA-F |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +24V |
| Working current | 150mA |
| Operation Temp. | -25~+65℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Switching Lifetime | 2 million Cycles |
| Control port | D-SUB Pin26 Male |
| Switching sequence | First disconnect and then close |
| Pin 1 | TTL high level (3~5V) | RF 0-1 |
|---|---|---|
| Pin 2 | TTL high level (3~5V) | RF 0-2 |
| Pin 3 | TTL high level (3~5V) | RF 0-3 |
| Pin 4 | TTL high level (3~5V) | RF 0-4 |
| Pin 5 | TTL high level (3~5V) | RF 0-5 |
| Pin 6 | TTL high level (3~5V) | RF 0-6 |
| Pin 7 | TTL high level (3~5V) | RF 0-7 |
| Pin 8 | TTL high level (3~5V) | RF 0-8 |
| Pin 9 | TTL high level (3~5V) | RF 0-9 |
| Pin 10 | TTL high level (3~5V) | RF 0-10 |
| Pin 11 | TTL high level (3~5V) | RF 0-11 |
| Pin 12 | TTL high level (3~5V) | RF 0-12 |
| Pin 13 | +24V | / |
| Pin 14 | GND | / |
| Pin 15~26 | Not used | / |
