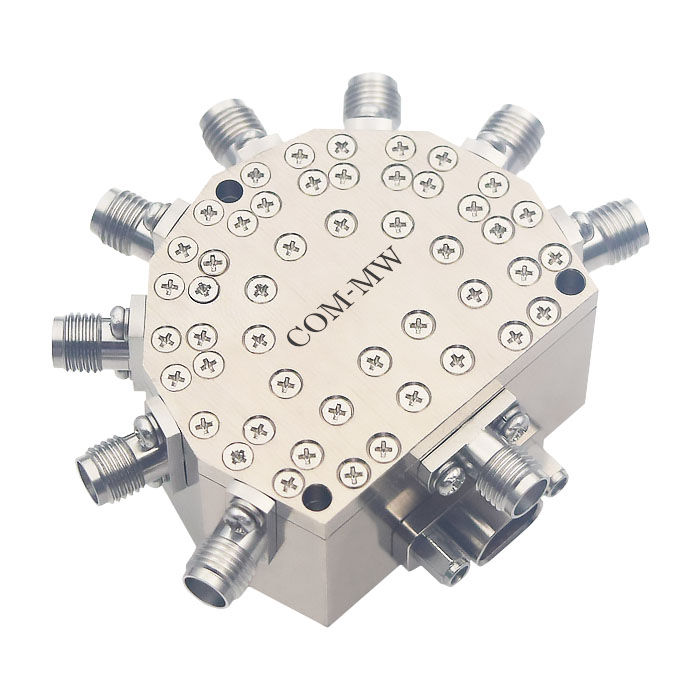

2~40GHz, SP8T, 150ns, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 40 | GHz |
| IL | 6.5 | dB | ||
| Isolation | 40 | dB | ||
| VSWR | 2.2 |
| Switch way | SP8T |
| Switching characteristic | Electronic reflection type |
| Switch time | 150ns |
| Connector | 2.92-F detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Power Capacity | 0.2W |
| Working voltage | ±5V |
| Working current | +5V,85mA,-5V,15mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Control port: J30J-9ZKP |
| A | B | C | D | E | |
|---|---|---|---|---|---|
| J0-J1 | 0 | 0 | 0 | 1 | 0 |
| J0-J2 | 1 | 1 | 1 | 1 | 0 |
| J0-J3 | 0 | 1 | 0 | 1 | 0 |
| J0-J4 | 0 | 0 | 1 | 1 | 0 |
| J0-J5 | 1 | 0 | 1 | 0 | 1 |
| J0-J6 | 0 | 1 | 1 | 0 | 1 |
| J0-J7 | 1 | 1 | 0 | 0 | 1 |
| J0-J8 | 1 | 0 | 0 | 0 | 1 |
| Common port | J0 |
| Branching port | J1~J8 |

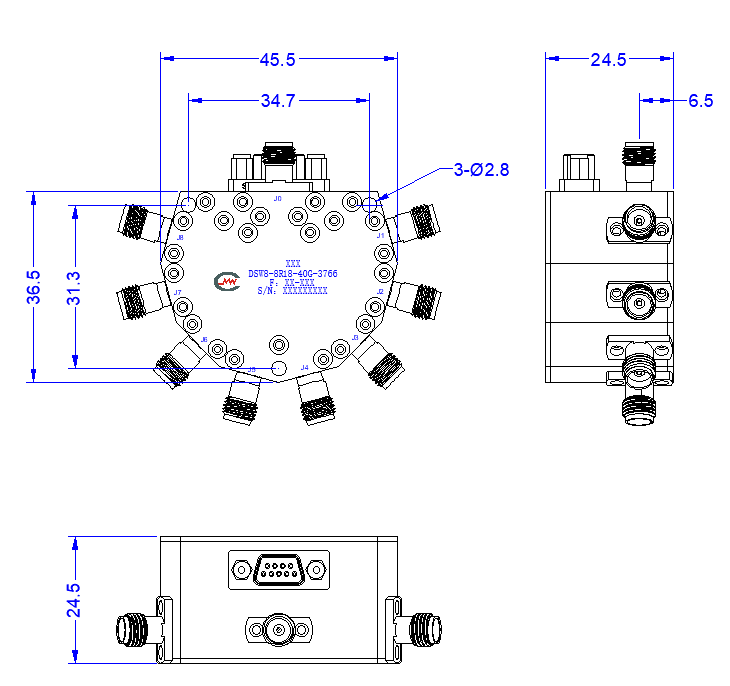

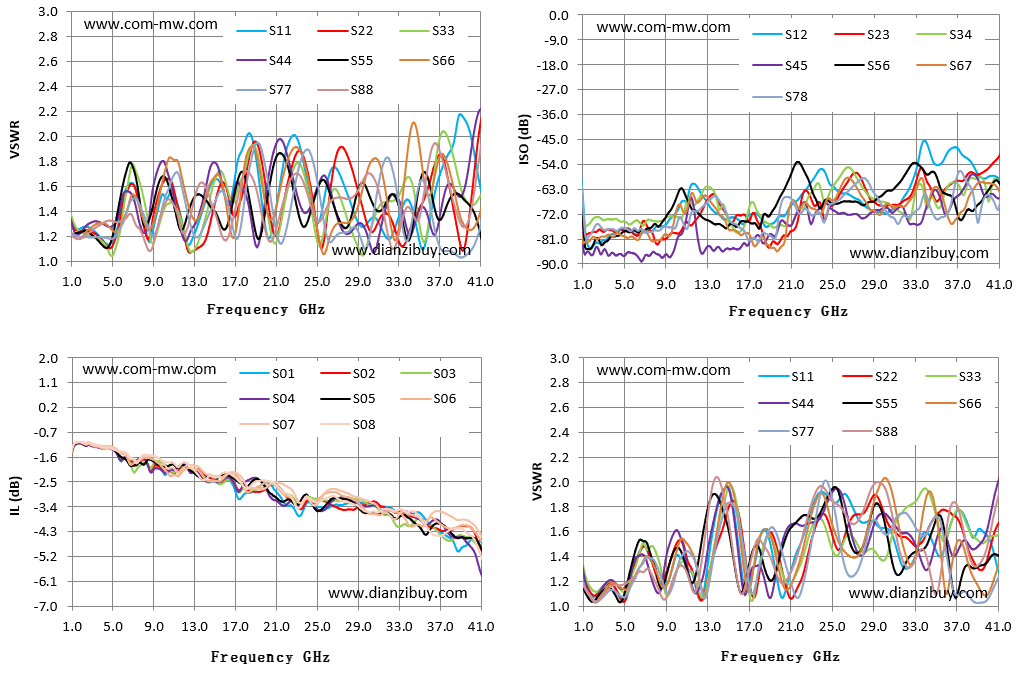

| Frequency GHz | S11 VSWR | S01 IL dB | S03 IL dB | S05 IL dB | S07 IL dB | S78 ISO dB |
|---|---|---|---|---|---|---|
| 1 | 1.31 | -1.43 | -1.48 | -1.36 | -1.34 | -66.3 |
| 6.71 | 1.63 | -1.68 | -1.84 | -1.91 | -1.67 | -77.6 |
| 9.57 | 1.46 | -1.87 | -1.76 | -1.89 | -1.66 | -76.8 |
| 12.43 | 1.13 | -2.08 | -2.07 | -2.04 | -1.9 | -69.7 |
| 18.14 | 2 | -2.9 | -2.72 | -2.67 | -2.69 | -79.7 |
| 21 | 1.43 | -2.87 | -2.63 | -3.08 | -2.51 | -66.2 |
| 26.71 | 1.75 | -3.33 | -3.19 | -3.08 | -2.76 | -62.9 |
| 29.57 | 1.28 | -3.28 | -3.22 | -3.62 | -3.15 | -67.8 |
| 32.43 | 1.22 | -3.52 | -3.92 | -3.79 | -3.86 | -72.8 |
| 38.14 | 1.9 | -4.61 | -4.62 | -4.39 | -3.78 | -61.7 |
| 41 | 1.59 | -4.67 | -4.84 | -4.89 | -4.45 | -68.9 |
| No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| Pin Definition | +5V | GND | -5V | A | B | C | D | E |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
