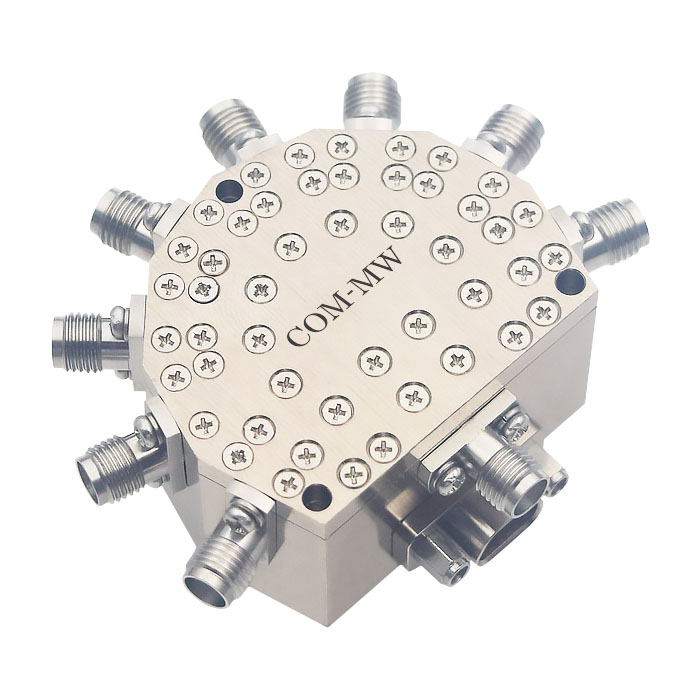

1.6~6GHz, SP8T, Electronic absorption switch, 100ns, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1.6 | ~ | 6 | GHz |
| IL | 2 | dB | ||
| Isolation | 60 | dB | ||
| VSWR | 1.8 | |||
| Phase balance | ±5 | ° |
| Switch way | SP8T |
|---|---|
| Switching characteristic | Electronic absorption switch |
| Switch time | 100ns |
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Power Capacity | 0.2W |
| Product shell material | Aluminium |
| Working voltage | ±5V |
| Working current | 300mA@+5V ;50mA@-5V |
| Operation Temp. | -40~+85℃ Design assurance |
| Other | Control port: J30J-9ZKP |
| Common port | J0 |
|---|---|
| Branching port | J1~J8 |

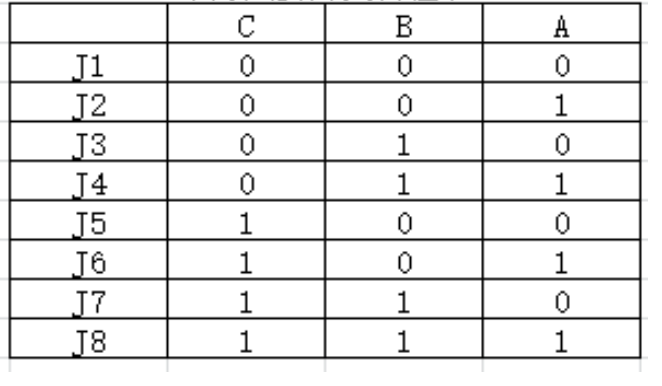

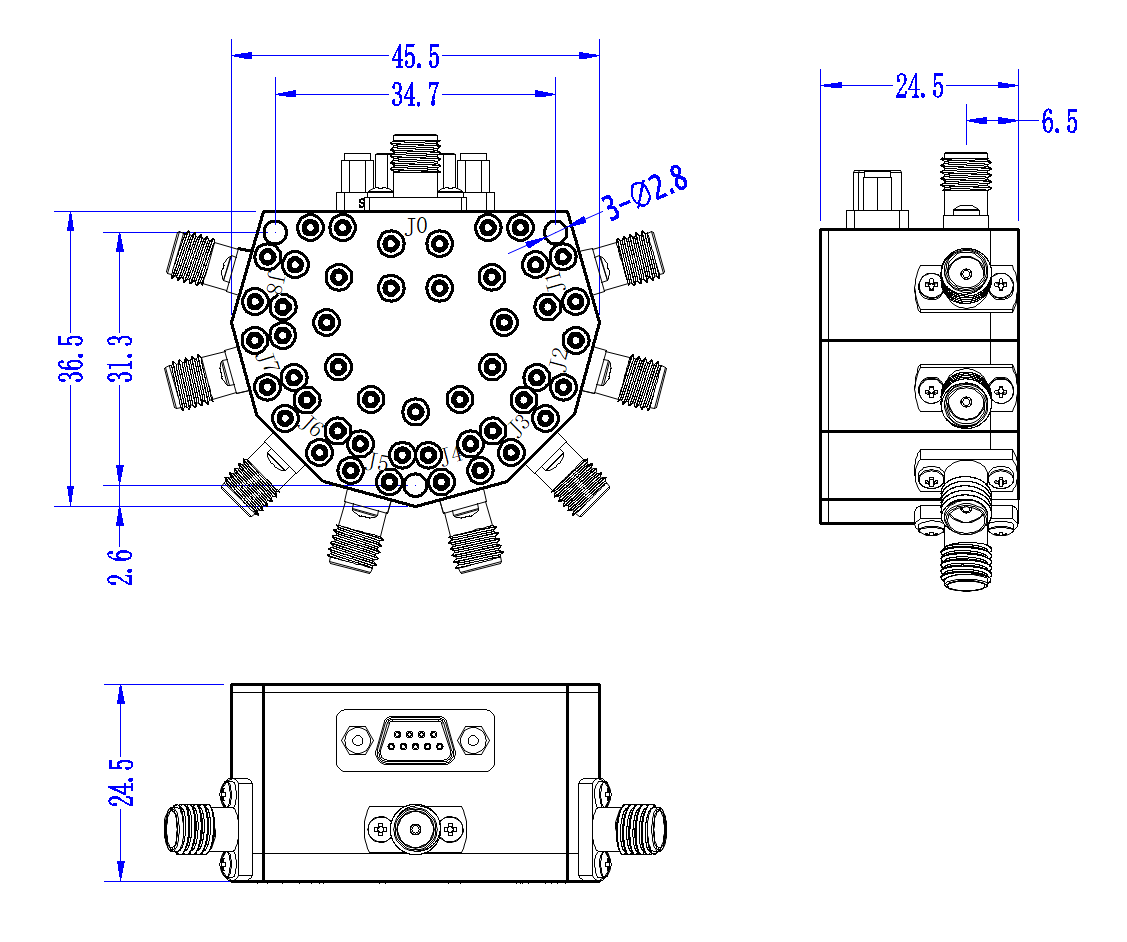

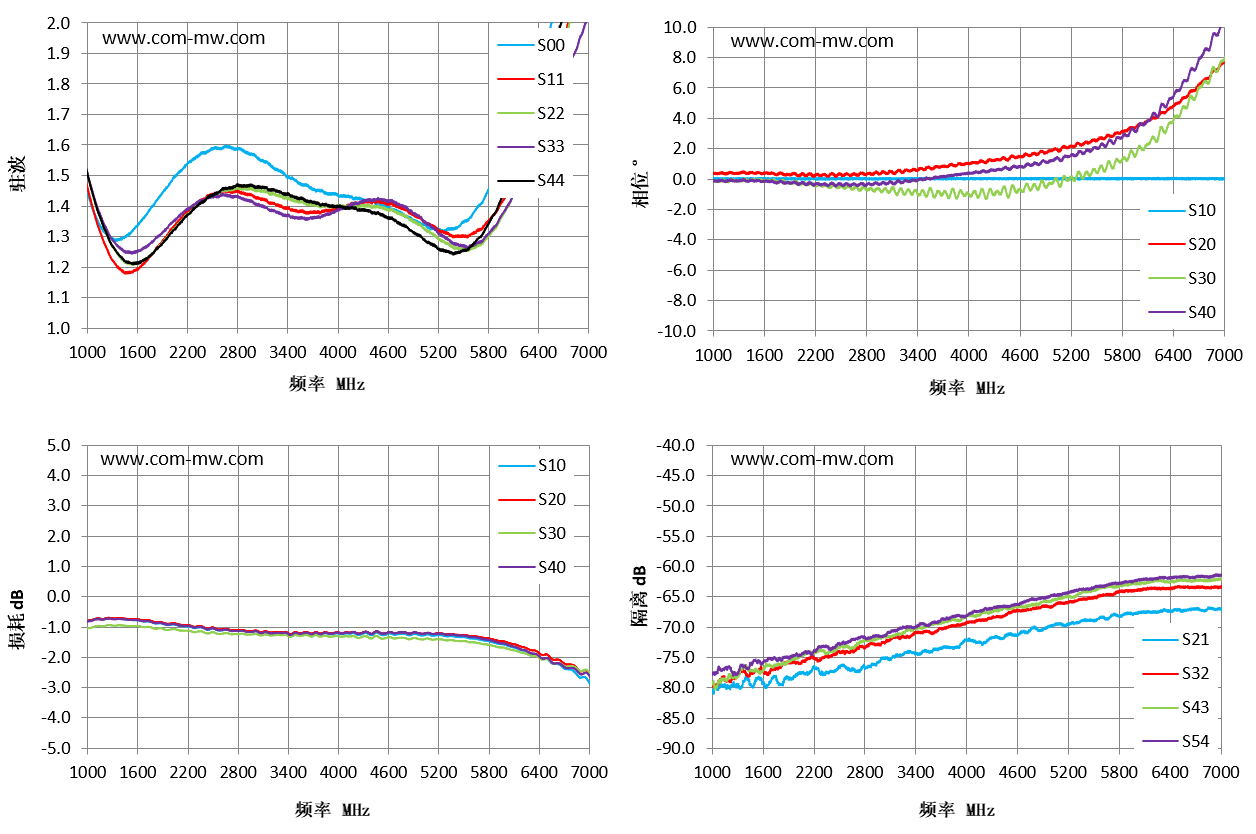

| Frequency(MHz) | S00 VSWR | S11 VSWR | S10 IL dB | S40 Phase | S21 ISO dB |
|---|---|---|---|---|---|
| 1000 | 1.44 | 1.46 | -0.79 | -0.12 | -80.5 |
| 1429 | 1.3 | 1.19 | -0.74 | -0.08 | -78.59 |
| 1857 | 1.43 | 1.27 | -0.87 | -0.25 | -78.62 |
| 2286 | 1.56 | 1.4 | -1.04 | -0.34 | -77.73 |
| 2714 | 1.59 | 1.45 | -1.13 | -0.35 | -77.29 |
| 3143 | 1.54 | 1.42 | -1.16 | -0.23 | -74.79 |
| 3571 | 1.47 | 1.38 | -1.21 | 0.04 | -74.07 |
| 4000 | 1.44 | 1.39 | -1.21 | 0.38 | -72.05 |
| 4429 | 1.42 | 1.41 | -1.22 | 0.78 | -71.82 |
| 4857 | 1.36 | 1.38 | -1.28 | 1.16 | -70.49 |
| 5286 | 1.32 | 1.31 | -1.31 | 1.77 | -69.26 |
| 5714 | 1.41 | 1.32 | -1.43 | 2.46 | -68.02 |
| 6143 | 1.66 | 1.5 | -1.71 | 4.09 | -67.46 |
| 6571 | 2.02 | 1.81 | -2.22 | 6.56 | -67.24 |
| 7000 | 2.59 | 2.3 | -2.83 | 10.39 | -67.05 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
|---|---|
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
