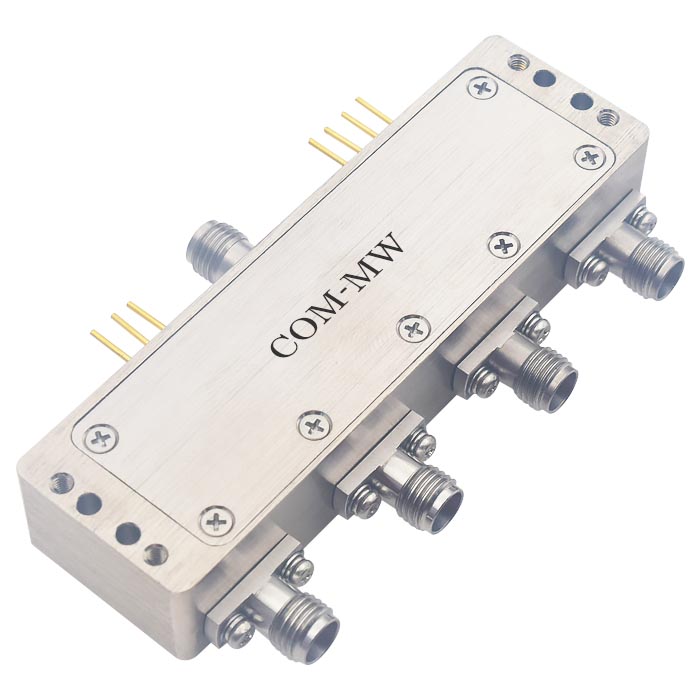

24~24.5GHz, SP4T, Absorption, 3μs, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High power

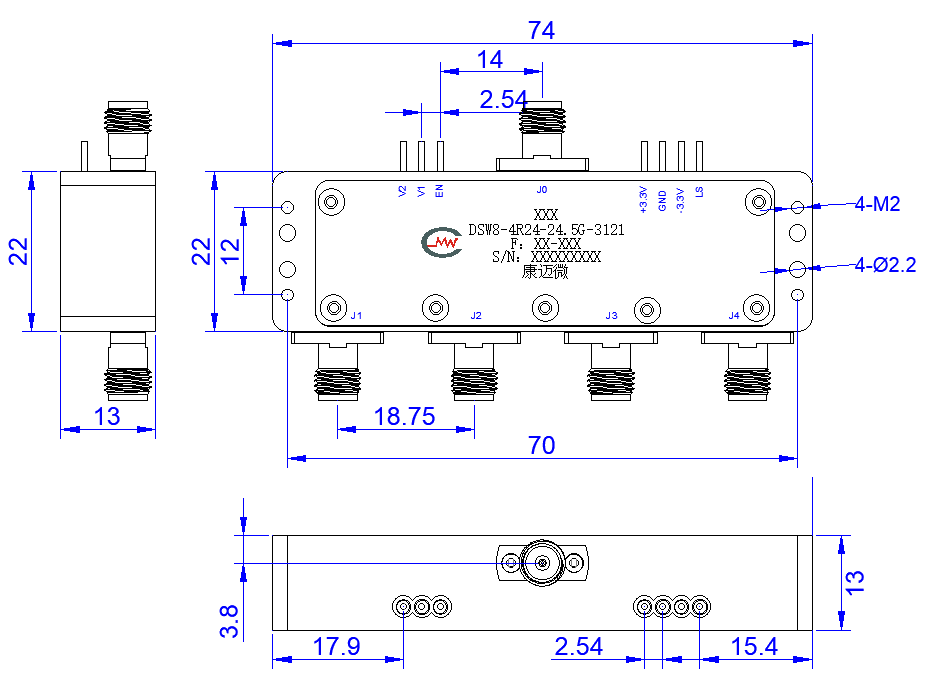

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 24 | ~ | 24.5 | GHz |
| IL | 3.5 | dB | ||
| Isolation | 22 | dB | ||
| VSWR | 1.8 |
| Switch way | SP4T |
| Switching characteristic | Electronic absorption switch |
| Switch time | 3μs |
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power Capacity | 1W Design assurance |
| Product shell material | Aluminium |
| Working voltage | ±3.3V |
| Working current | 10mA single circuit |
| Operation Temp. | -40~+85℃ Design assurance |
| EN | LS | V1 | V2 | J1toJ0 | J2toJ0 | J3toJ0 | J4toJ0 |
|---|---|---|---|---|---|---|---|
| 1 | 1 | 1 | 1 | ON | OFF | OFF | OFF |
| 1 | 1 | 0 | 1 | OFF | ON | OFF | OFF |
| 1 | 1 | 1 | 0 | OFF | OFF | ON | OFF |
| 1 | 1 | 0 | 0 | OFF | OFF | OFF | ON |
| 1 | 0 | 1 | 1 | OFF | OFF | OFF | ON |
| 1 | 0 | 0 | 1 | OFF | OFF | ON | OFF |
| 1 | 0 | 1 | 0 | OFF | ON | OFF | OFF |
| 1 | 0 | 0 | 0 | ON | OFF | OFF | OFF |
| 0 | 0/1 | 0/1 | 0/1 | OFF | OFF | OFF | OFF |
| Common port | J0 |
| Branching port | J1,J2,J3,J4 |

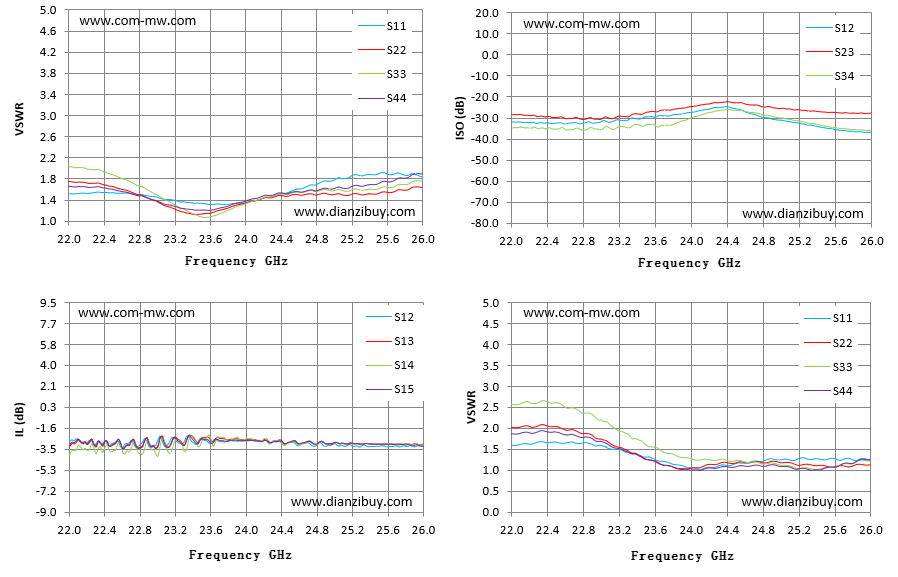

| Frequency GHz | S22 VSWR | S12 IL (dB) | S13 IL (dB) | S14 IL dB | S15 IL dB | S23 ISO dB |
|---|---|---|---|---|---|---|
| 23.14 | 1.28 | -2.85 | -3.23 | -3.77 | -3.23 | -30.43 |
| 23.43 | 1.13 | -2.99 | -2.67 | -2.62 | -2.91 | -28.28 |
| 23.71 | 1.2 | -2.76 | -2.48 | -2.41 | -2.7 | -26.34 |
| 24 | 1.34 | -2.68 | -2.57 | -2.53 | -2.68 | -24.54 |
| 24.29 | 1.44 | -2.88 | -2.86 | -2.94 | -2.87 | -22.66 |
| 24.57 | 1.5 | -2.92 | -2.66 | -2.78 | -2.74 | -22.54 |
| 24.86 | 1.52 | -2.92 | -2.7 | -2.74 | -2.76 | -24.48 |
| 25.14 | 1.49 | -3.19 | -3.03 | -2.98 | -2.98 | -26.09 |
| 25.43 | 1.52 | -3.19 | -2.98 | -2.96 | -2.98 | -27.04 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
