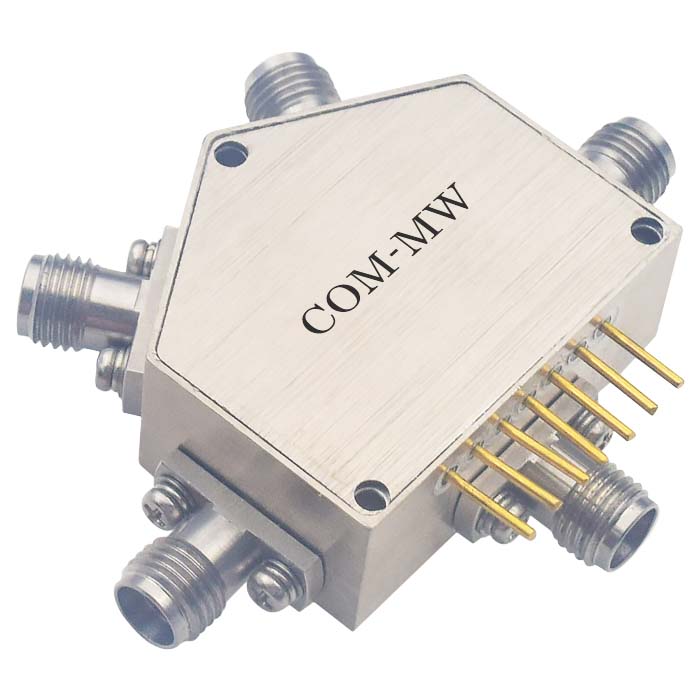

2~40GHz, SP4T, Reflective, 150ns, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

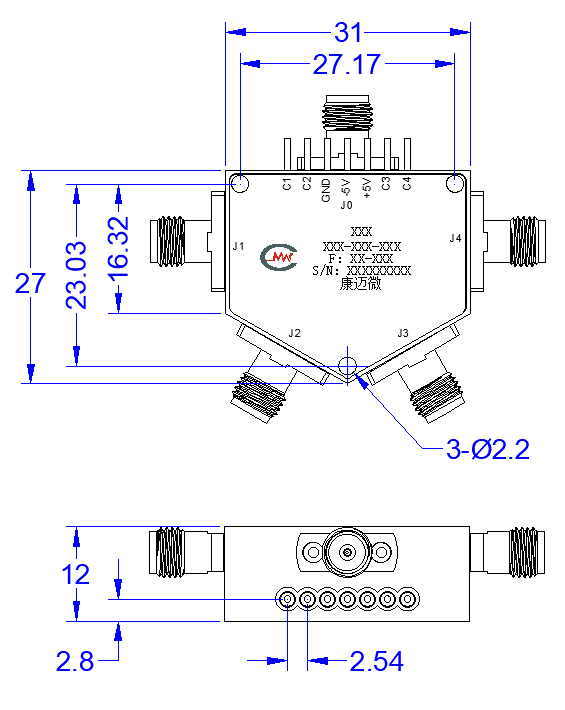

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 2 | ~ | 40 | GHz |
| IL | 5.5 | dB | ||
| Isolation | 40 | dB | ||
| VSWR | 2.2 |
| Switch way | SP4T |
| Switching characteristic | Electronic reflective switch |
| Switch time | 150ns |
| Connector | 2.92-F detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Power Capacity | 0.2W Design assurance |
| Working voltage | ±5V |
| Working current | +5V,50mA,-5V,10mA |
| Operation Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| C1 | C2 | C3 | C4 | |
|---|---|---|---|---|
| J0-J1 | 0 | 1 | 1 | 1 |
| J0-J2 | 1 | 0 | 1 | 1 |
| J0-J3 | 1 | 1 | 1 | 0 |
| J0-J4 | 1 | 1 | 0 | 1 |
| Common port | J0 |
| Branching port | J1,J2,J3,J4 |

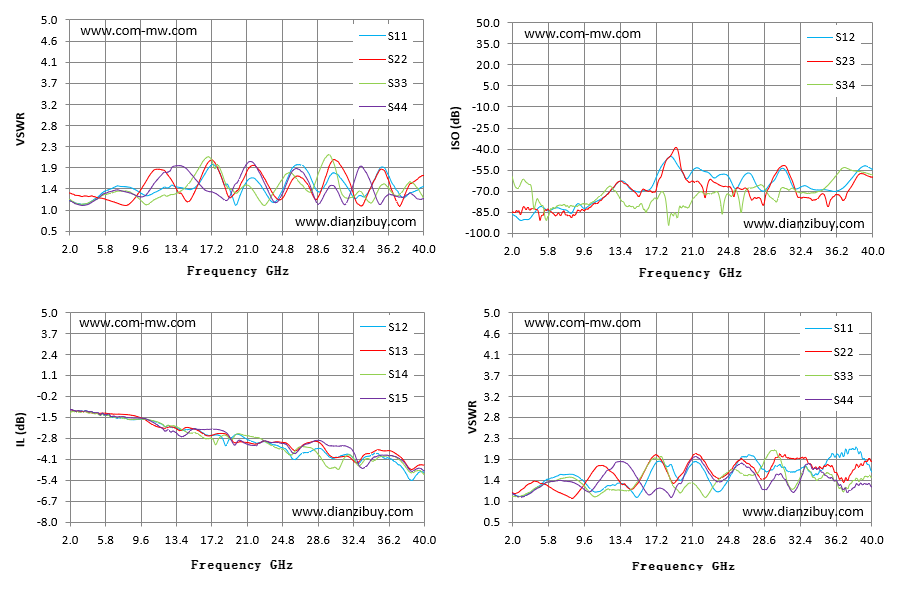

| Frequency GHz | S11 VSWR | S12 IL (dB) | S13 IL (dB) | S14 IL dB | S15 IL dB | S12 ISO |
|---|---|---|---|---|---|---|
| 2 | 1.15 | -1.02 | -1.03 | -1.3 | -1.04 | -86.42 |
| 4.71 | 1.2 | -1.25 | -1.27 | -1.29 | -1.26 | -82.03 |
| 7.43 | 1.45 | -1.54 | -1.32 | -1.54 | -1.48 | -83.03 |
| 10.14 | 1.26 | -1.62 | -1.69 | -1.63 | -1.61 | -80 |
| 12.86 | 1.48 | -2.16 | -2.11 | -2.05 | -2.42 | -65.75 |
| 15.57 | 1.47 | -2.23 | -2.29 | -2.48 | -2.25 | -70.36 |
| 18.29 | 1.64 | -2.74 | -2.52 | -2.66 | -2.33 | -47.54 |
| 21 | 1.57 | -2.86 | -3.08 | -2.64 | -3.17 | -55.68 |
| 23.71 | 1.11 | -3.19 | -3.07 | -3.28 | -3.06 | -58.87 |
| 26.43 | 1.93 | -3.97 | -3.53 | -3.4 | -3.61 | -59.02 |
| 29.14 | 1.4 | -3.53 | -3.3 | -4.21 | -3.03 | -65.01 |
| 31.86 | 1.4 | -3.78 | -3.96 | -3.82 | -3.35 | -68.45 |
| 34.57 | 1.58 | -3.76 | -3.65 | -4.2 | -3.97 | -69.07 |
| 37.29 | 1.3 | -4.43 | -3.9 | -4.11 | -4.03 | -64.66 |
| 40 | 1.46 | -4.89 | -4.48 | -5.03 | -4.81 | -54.67 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
