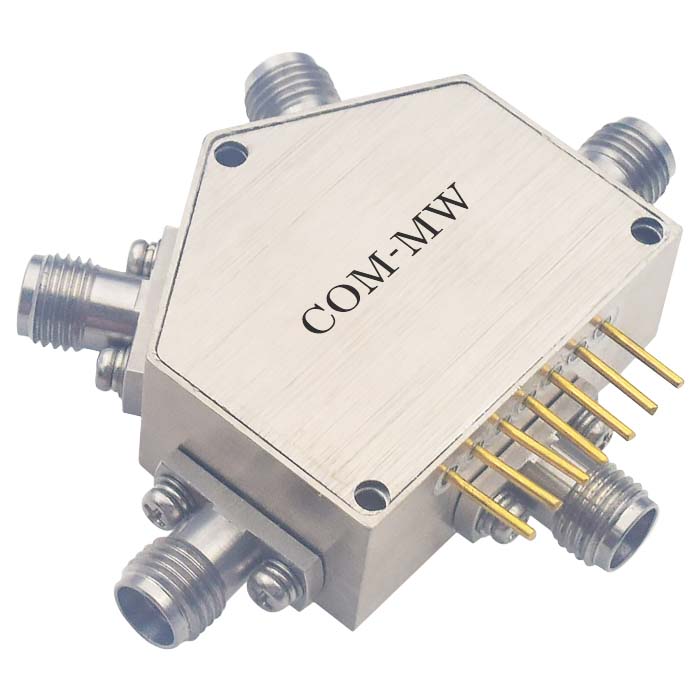

1~50GHz, SP4T, Reflective, 250ns, 2.4
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 1 | ~ | 50 | GHz |
| IL | 10 | dB | ||
| Isolation | 40 | dB | ||
| VSWR | 2.2 |
| Switch way | SP4T |
| Switching characteristic | Electronic reflective switch |
| Switch time | 250ns |
| Connector | 2.4-F Detachable Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Power Capacity | 0.2W Design assurance |
| Working voltage | ±5V |
| Working current | +5V,50mA/-5V,20mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Quality Grade | Industrial grade |

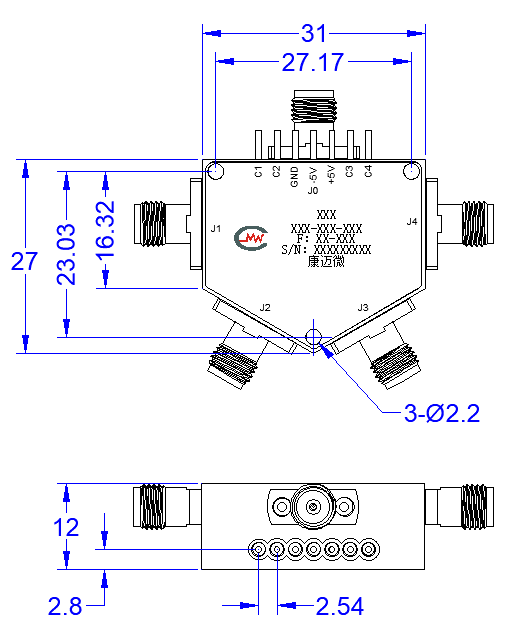

| Common port | J0 |
| Branching port | J1,J2,J3,J4 |

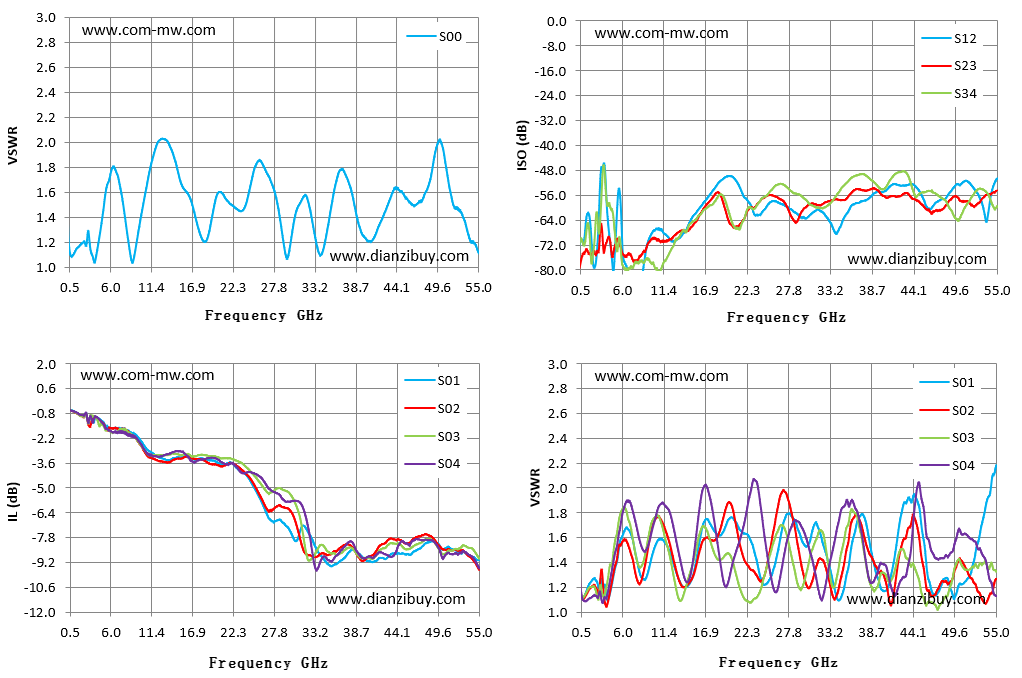

| Frequency GHz | S00 VSWR | S01 IL dB | S03 IL dB | S04 IL dB | S23 ISO dB | S03 驻波 |
|---|---|---|---|---|---|---|
| 0.50 | 1.13 | -0.60 | -0.62 | -0.63 | -77.8 | 1.14 |
| 4.39 | 1.22 | -1.11 | -1.48 | -1.13 | -71.0 | 1.38 |
| 8.29 | 1.22 | -1.80 | -1.87 | -2.01 | -75.6 | 1.36 |
| 12.18 | 1.99 | -3.24 | -3.16 | -3.24 | -70.2 | 1.43 |
| 16.07 | 1.61 | -3.23 | -3.12 | -3.19 | -62.4 | 1.64 |
| 19.96 | 1.55 | -3.52 | -3.24 | -3.35 | -64.7 | 1.47 |
| 23.86 | 1.49 | -4.22 | -3.79 | -4.17 | -58.1 | 1.15 |
| 27.75 | 1.62 | -6.90 | -5.13 | -5.25 | -61.1 | 1.55 |
| 31.64 | 1.56 | -7.14 | -7.90 | -6.25 | -59.1 | 1.64 |
| 35.54 | 1.55 | -9.38 | -8.69 | -9.06 | -56.3 | 1.70 |
| 39.43 | 1.27 | -8.90 | -8.97 | -8.96 | -54.5 | 1.21 |
| 43.32 | 1.57 | -8.72 | -8.12 | -8.90 | -55.4 | 1.43 |
| 47.21 | 1.53 | -8.40 | -8.11 | -7.94 | -61.0 | 1.03 |
| 51.11 | 1.63 | -8.41 | -8.55 | -8.72 | -57.8 | 1.34 |
| 55.00 | 1.12 | -9.08 | -8.97 | -9.51 | -54.5 | 1.33 |
| J0-J1 | 0 | 1 | 1 | 1 |
|---|---|---|---|---|
| J0-J2 | 1 | 0 | 1 | 1 |
| J0-J3 | 1 | 1 | 1 | 0 |
| J0-J4 | 1 | 1 | 0 | 1 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
