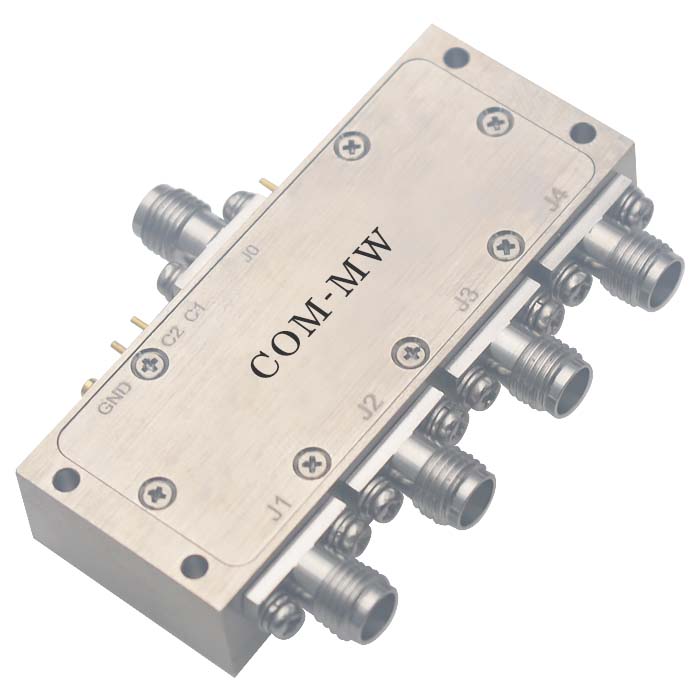

0.009~12000MHz, SP4T, Reflective, SMA, 0.4W
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.009 | ~ | 12000 | MHz |
| IL | 2.8 | 3.3 | dB | |
| Isolation | 25 | dB | ||
| VSWR | 1.7 |
| Switch way | SP4T |
| Switching characteristic | Electronic reflective switch |
| Switch time | 150ns |
| Connector | SMA-K detachable, Pin 0.38mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Power Capacity | 0.4W Design assurance |
| Product shell material | Aluminium |
| Working voltage | +3.3V；-3.3V |
| Working current | 50mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Other | Control voltage 3.3v |
| port | C1 | C2 |
|---|---|---|
| J1 | 1 | 1 |
| J2 | 0 | 1 |
| J3 | 1 | 0 |
| J4 | 0 | 0 |

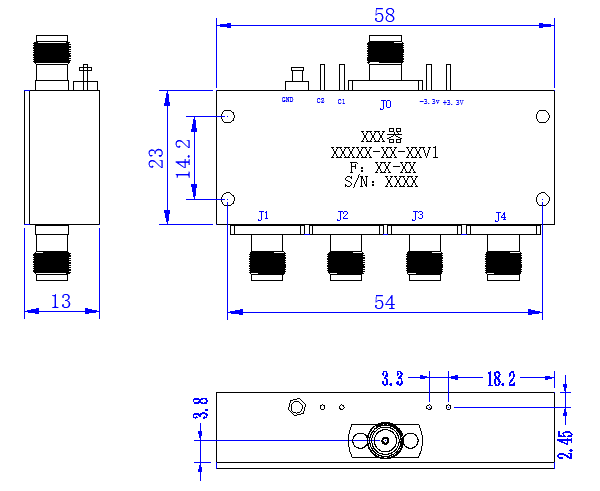

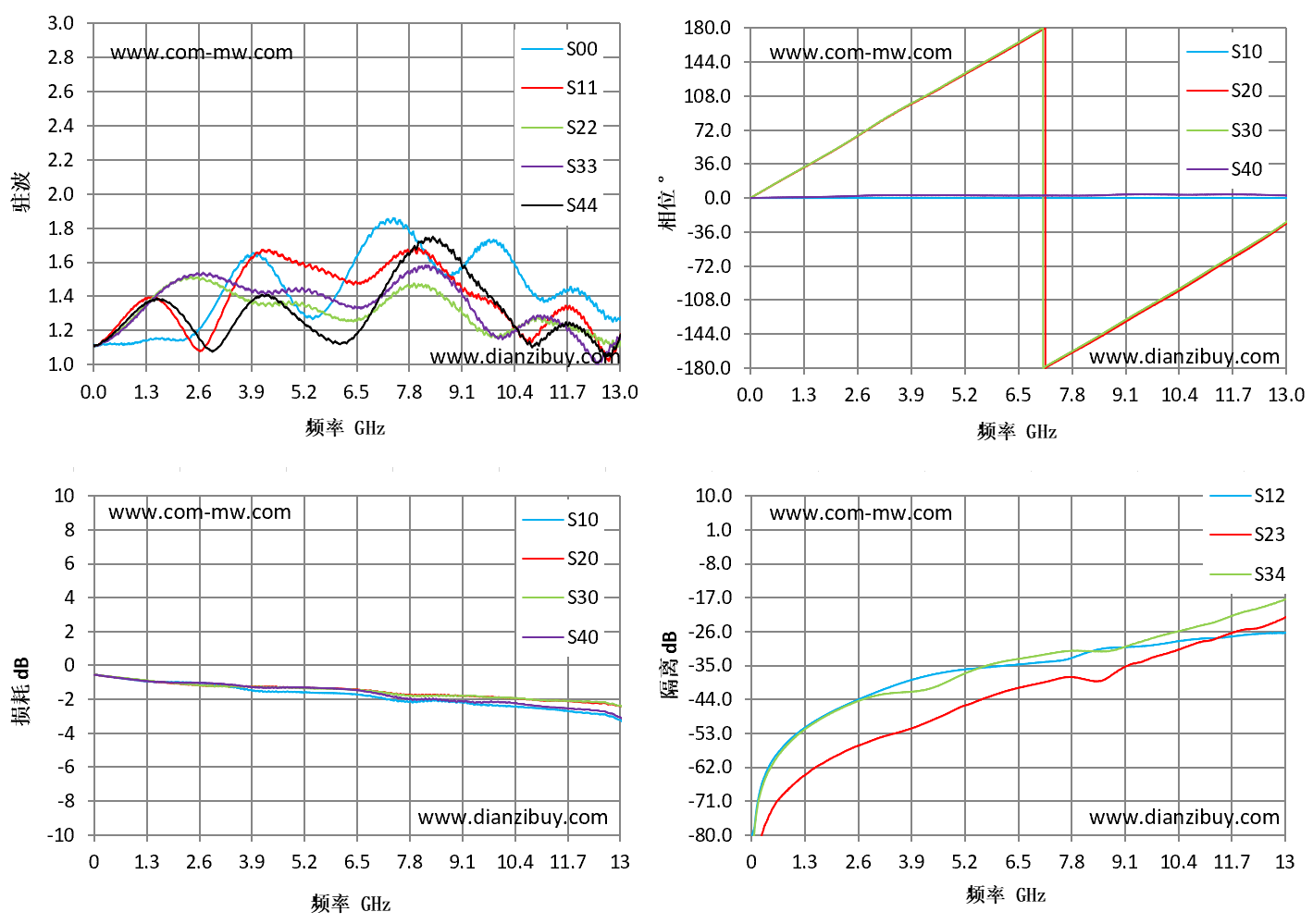

| Frequency(GHz) | S00 VSWR | S11 VSWR | S10 IL dB | S20IL dB | S12 ISO dB |
|---|---|---|---|---|---|
| 0.1 | 1.12 | 1.12 | -0.56 | -0.56 | -79.99 |
| 0.93 | 1.12 | 1.32 | -0.84 | -0.81 | -54.75 |
| 1.86 | 1.15 | 1.33 | -1 | -1.04 | -47.81 |
| 2.79 | 1.27 | 1.12 | -1.06 | -1.23 | -43.2 |
| 3.71 | 1.61 | 1.57 | -1.42 | -1.25 | -39.48 |
| 4.64 | 1.47 | 1.64 | -1.57 | -1.29 | -36.94 |
| 5.57 | 1.28 | 1.55 | -1.62 | -1.34 | -35.65 |
| 6.5 | 1.63 | 1.48 | -1.72 | -1.43 | -34.75 |
| 7.43 | 1.86 | 1.63 | -2.06 | -1.68 | -33.83 |
| 8.36 | 1.61 | 1.63 | -2.06 | -1.76 | -31 |
| 9.29 | 1.62 | 1.41 | -2.27 | -1.8 | -30.03 |
| 10.21 | 1.67 | 1.28 | -2.41 | -1.91 | -28.92 |
| 11.14 | 1.37 | 1.23 | -2.56 | -2.09 | -27.79 |
| 12.07 | 1.43 | 1.27 | -2.8 | -2.19 | -26.86 |
| 13 | 1.27 | 1.16 | -3.21 | -2.38 | -26.28 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
Send us your requirements — our engineers will respond within one working day.
