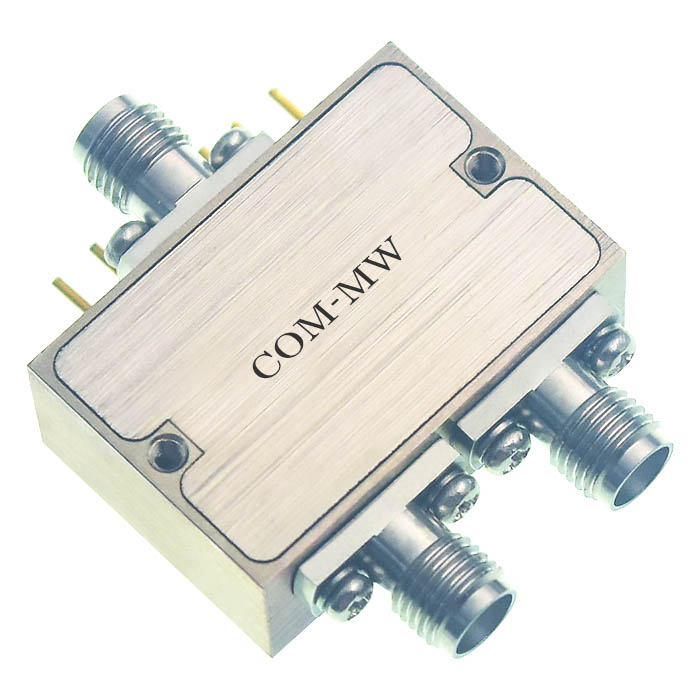

15~50GHz, SPDT, Absorption, 150ns, 2.4
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 15 | ~ | 50 | GHz |
| IL | 7 | dB | ||
| Isolation | 40 | dB | ||
| VSWR | 1.8 | 2.2 |
| Switch way | SPDT |
| Switching characteristic | Electronic absorption switch |
| Switch time | 150ns |
| Connector | 2.4-K detachable, Pin 0.3mm |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power Capacity | 0.2W |
| Product shell material | Aluminium |
| Working voltage | ±5V |
| Working current | 20mA single channel |
| Operation Temp. | -40~+70℃ Design assurance |
| C1 | C2 | |
|---|---|---|
| Select J0-J1 | 0 | 1 |
| Select J0-J2 | 1 | 0 |

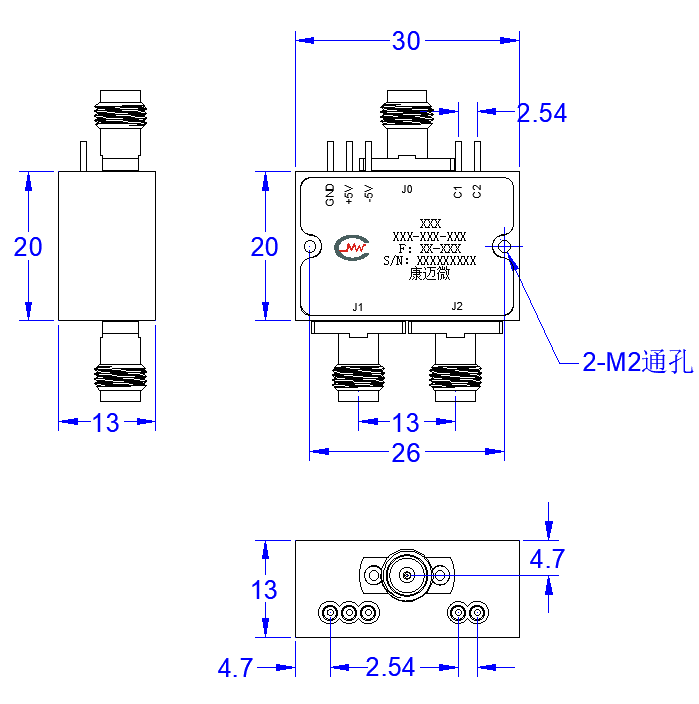

| Common port | J0 |
| Branching port | J1，J2 |

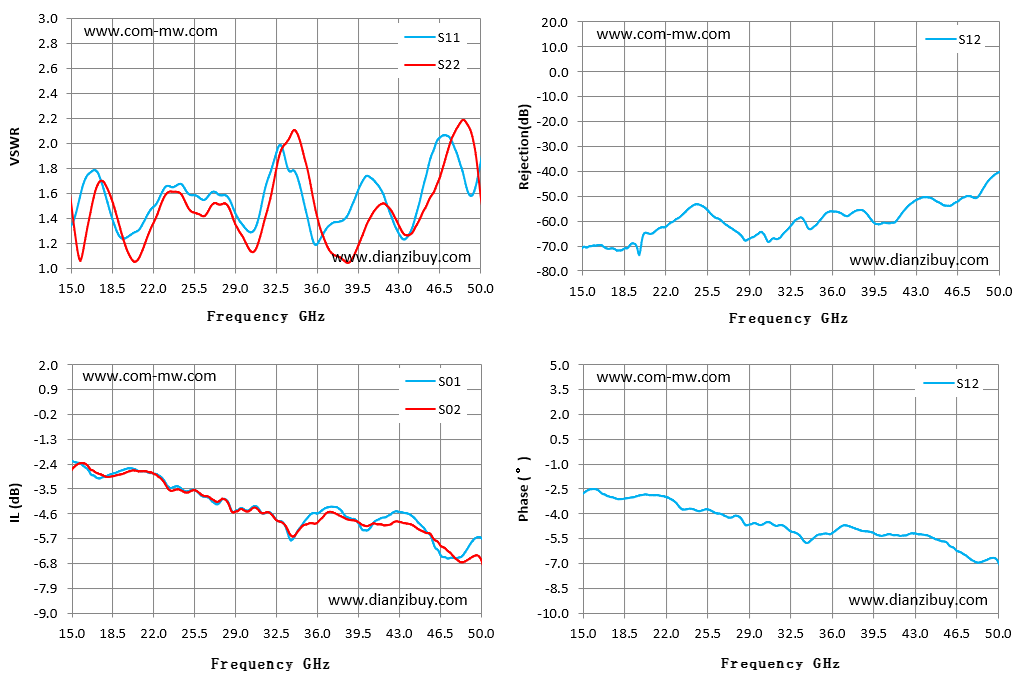

| Frequency GHz | S11 VSWR | S01 IL dB | S02 IL dB | S12 Rejection | S12 Phase |
|---|---|---|---|---|---|
| 15 | 1.36 | -2.28 | -2.64 | -70.6 | -2.75 |
| 17.5 | 1.7 | -3.01 | -2.88 | -70.8 | -3 |
| 20 | 1.27 | -2.6 | -2.72 | -67.6 | -2.85 |
| 22.5 | 1.57 | -2.94 | -3.02 | -60.3 | -3.15 |
| 25 | 1.6 | -3.6 | -3.65 | -53.6 | -3.79 |
| 27.5 | 1.6 | -4.17 | -4.07 | -62.6 | -4.21 |
| 30 | 1.31 | -4.48 | -4.51 | -64.2 | -4.66 |
| 32.5 | 1.93 | -4.91 | -4.9 | -61.8 | -5.05 |
| 35 | 1.48 | -4.87 | -5.08 | -59.3 | -5.23 |
| 37.5 | 1.37 | -4.31 | -4.59 | -57.2 | -4.75 |
| 40 | 1.72 | -5.35 | -5.13 | -61.1 | -5.3 |
| 42.5 | 1.38 | -4.54 | -4.98 | -53.2 | -5.2 |
| 45 | 1.62 | -5.2 | -5.39 | -52.5 | -5.59 |
| 47.5 | 2.03 | -6.57 | -6.43 | -49.8 | -6.63 |
| 50 | 1.85 | -5.7 | -6.69 | -40.2 | -6.89 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
