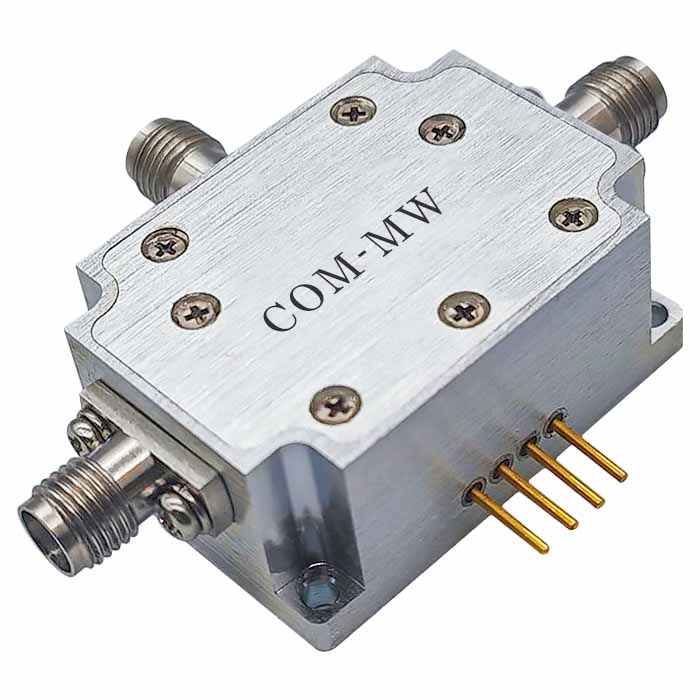

0.5~2.5GHz, SPDT, Reflective, 5000ns, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low loss, high power, small size

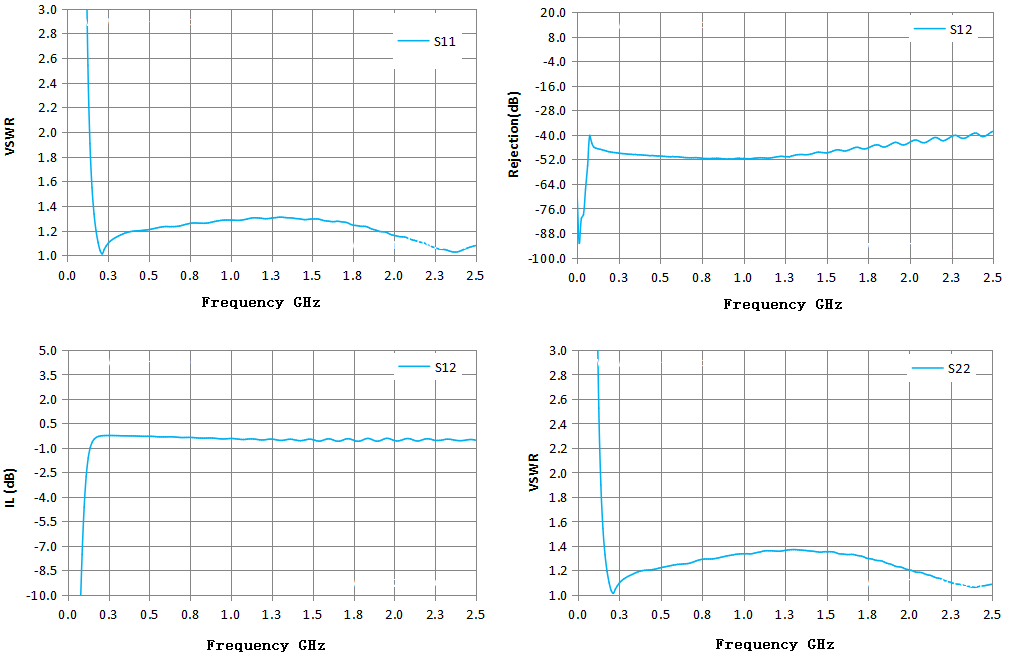

| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.5 | ~ | 2.5 | GHz |
| IL | 0.8 | dB | ||
| Isolation | 35 | dB | ||
| VSWR | 1.5 |
| Switch way | SPDT |
| Switching characteristic | Electronic reflective switch |
| Switch time | 5000ns |
| Connector | SMA-F Detachable |
| Impedance | 50Ω |
| Power Capacity | 100W Design assurance |
| Product shell material | Aluminium |
| Working voltage and current | +5V/200mA，+120V/20mA |
| Operation Temp. | -45~+75℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |

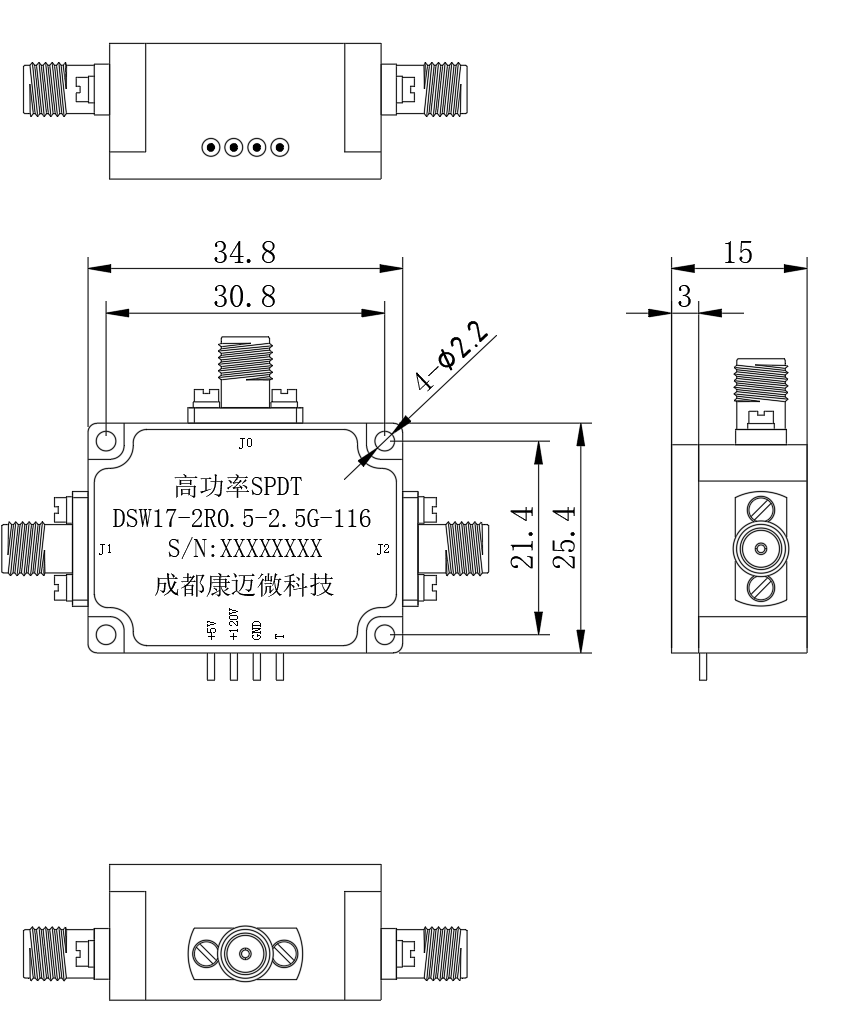

| Common port | J0 |
| Branching port | J1，J2 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
