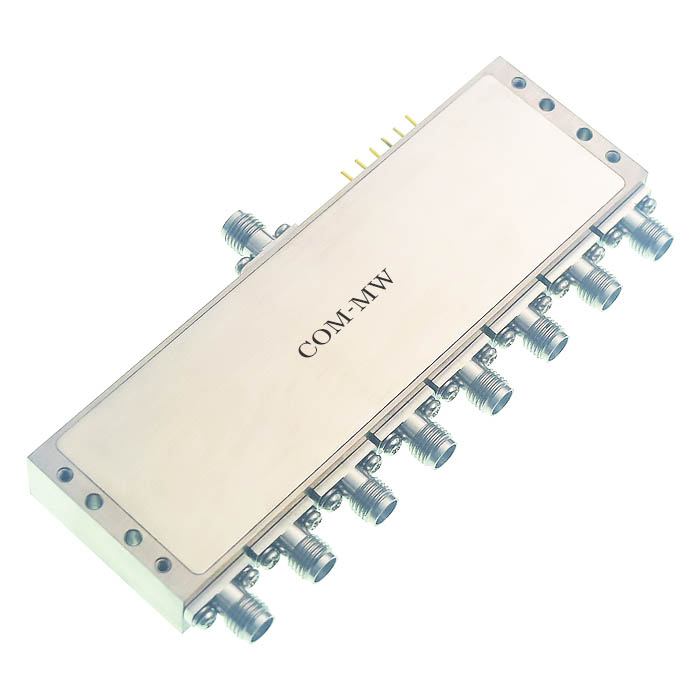

0.005~6000MHz, SP8T, ElectronicAbsorptionSwitch, Switch time300ns, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 0.005 | ~ | 6000 | MHz |
| IL | 3 | 4.5 | dB | |
| Isolation | 25 | dB | ||
| VSWR | 1.4 | 1.8 |
| Switch way | SP8T |
| Switching characteristic | Electronic absorption switch |
| Switch time | 300ns |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Nickel plating |
| Power Capacity | 4W Design assurance |
| Working voltage | ±5V |
| Working current | 40mA |
| Operation Temp. | -40~+85℃ Design assurance |
| J0-J1 | 1 | 0 | 1 | 1 | 0 |
|---|---|---|---|---|---|
| J0-J2 | 1 | 0 | 0 | 0 | 0 |
| J0-J3 | 1 | 0 | 1 | 0 | 0 |
| J0-J4 | 1 | 0 | 0 | 1 | 0 |
| J0-J5 | 0 | 1 | 1 | 0 | 1 |
| J0-J6 | 0 | 1 | 0 | 0 | 0 |
| J0-J7 | 0 | 1 | 1 | 0 | 0 |
| J0-J8 | 0 | 1 | 0 | 0 | 1 |

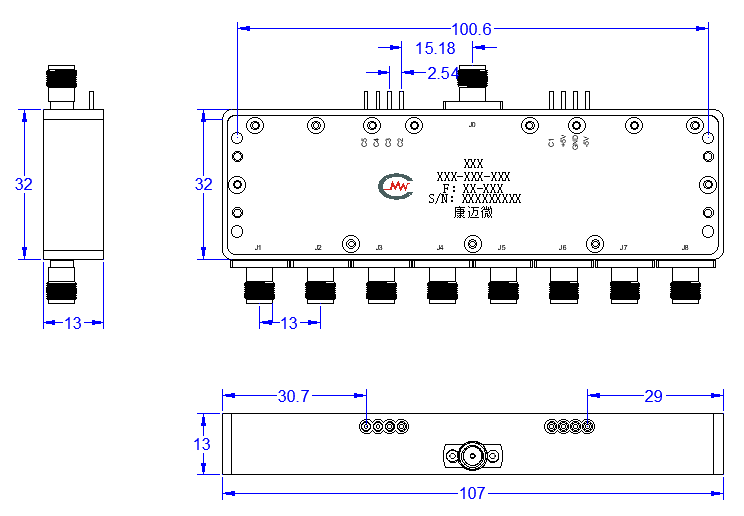

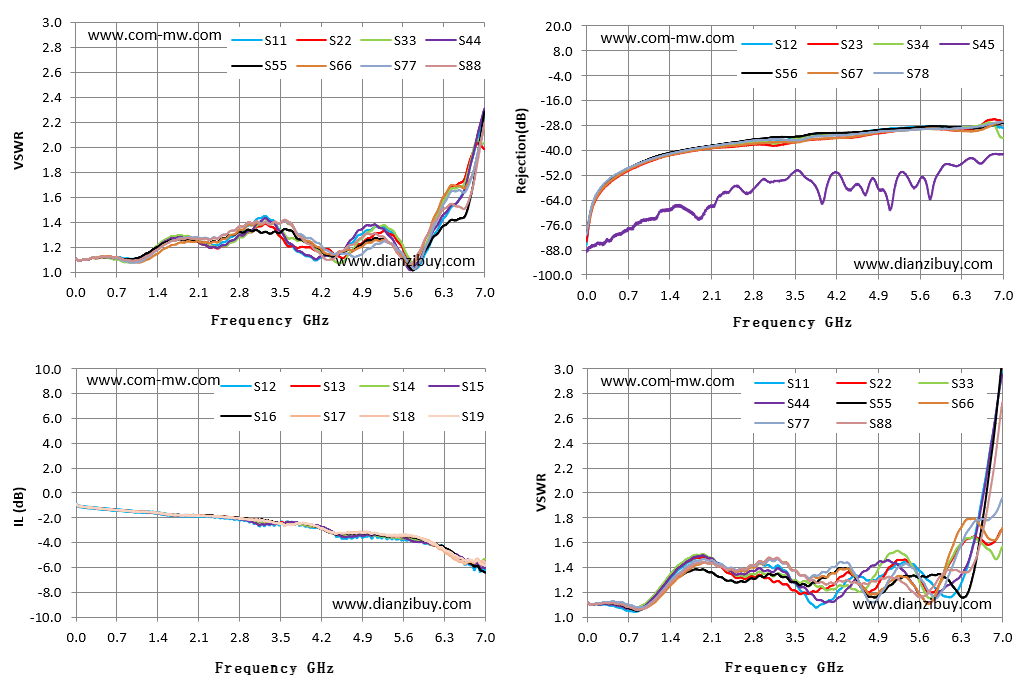

| Frequency GHz | S11 VSWR | S12 IL dB | S14 IL dB | S16 IL dB | S18 损耗 dB | S12 Rej. |
|---|---|---|---|---|---|---|
| 0.01 | 1.11 | -0.75 | -0.89 | -0.88 | -0.88 | -85.47 |
| 0.5 | 1.12 | -1.3 | -1.3 | -1.3 | -1.3 | -52.24 |
| 1 | 1.11 | -1.51 | -1.51 | -1.51 | -1.5 | -45.19 |
| 1.5 | 1.24 | -1.69 | -1.71 | -1.69 | -1.69 | -41.07 |
| 2 | 1.26 | -1.8 | -1.84 | -1.78 | -1.83 | -38.19 |
| 2.5 | 1.24 | -1.94 | -1.92 | -1.9 | -1.93 | -36.36 |
| 3 | 1.38 | -2.26 | -2.25 | -2.11 | -2.16 | -35.39 |
| 3.5 | 1.34 | -2.42 | -2.46 | -2.44 | -2.46 | -34.15 |
| 4 | 1.13 | -2.74 | -2.69 | -2.56 | -2.55 | -32.52 |
| 4.5 | 1.14 | -3.45 | -3.35 | -3.29 | -3.24 | -31.63 |
| 5 | 1.34 | -3.41 | -3.37 | -3.24 | -3.14 | -29.77 |
| 5.5 | 1.27 | -3.71 | -3.63 | -3.56 | -3.54 | -28.9 |
| 6 | 1.17 | -4.01 | -4.01 | -3.88 | -3.78 | -28.58 |
| 6.5 | 1.54 | -5.04 | -5.06 | -5 | -5.28 | -29.22 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
